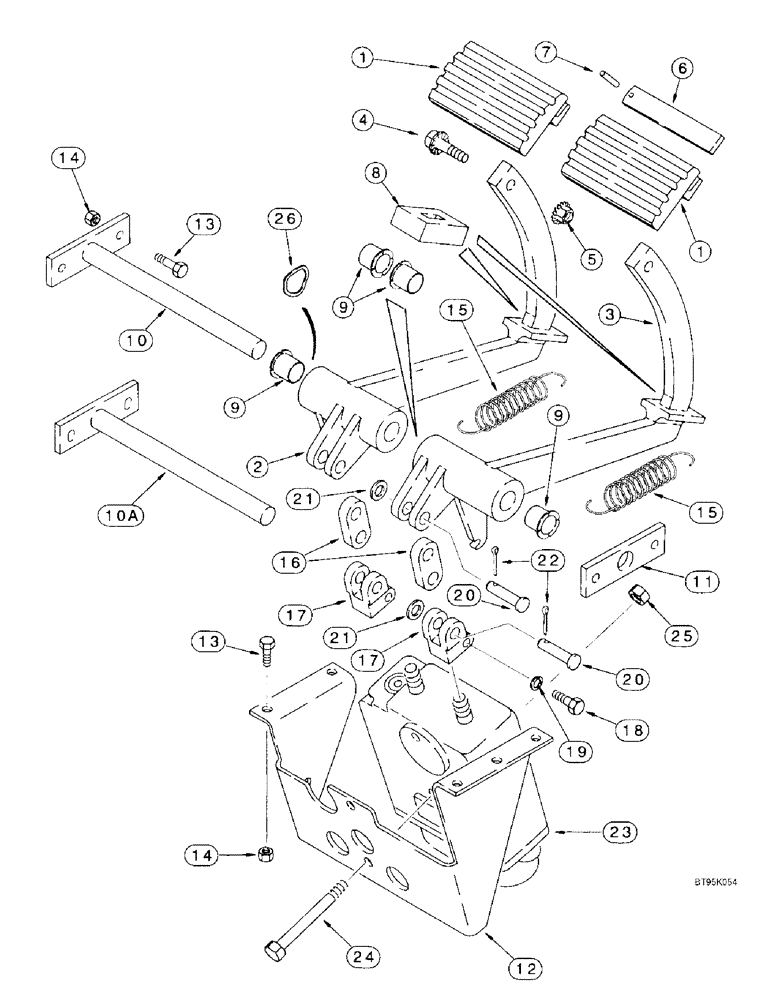

Запчасти Case IH 2188 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

1

119902A1

PAD

- brake pedal

2шт.

2

138017A4

PEDAL

- brake, left hand

1шт.

3

138016A4

PEDAL

Brake, Right Hand

1шт.

4

905-10035

BOLT,Hex Flg, M10 x 35mm

- hex serrated flange, 10 - 1.5 x 35 mm

2шт.

5

825-51410

FLANGE NUT,M10, Flg Ser

- hex serrated flange, 10 mm - 1.5

2шт.

6

119903A1

PLATE

BAR - brake locking

1шт.

7

38-3814

PIN,1/8" x 7/8", Coiled

1шт.

8

120159A1

FOAM INSULATION

- pedal

2шт.

9

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

- spacer, pedal (Replaces bushing 185062R1)

4шт.

10

120160A1

SHAFT

- pedal pivot, no longer available, order shaft 120160A2, Ref. 10A

1шт.

10a

120160A2

SHAFT

- pedal pivot

1шт.

11

1281794C1

PLATE

BAR - pivot shaft support

1шт.

12

121496A2

SUPPORT

BRACKET - mounting, master brake

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

9шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

9шт.

15

182652A1

SPRING

- 27.9 OD x 122 mm free length, pedal return

2шт.

16

384082R1

LINK

- brake operating

2шт.

17

384083R2

YOKE

YOKE - brake connecting

2шт.

18

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

PIN - clevis, 1/2 x 1-11/16 inch, hardened

4шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

22

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

23

137449A2

BRAKE VALVE

VALVE ASSEMBLY - master brake control, parts list Figure 7-8

1шт.

24

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

25

425-166

NUT,3/8"-16, G5, Hvy

- heavy hex, 3/8 inch NC

2шт.

26

G49413

WASHER

- wave

1шт.
