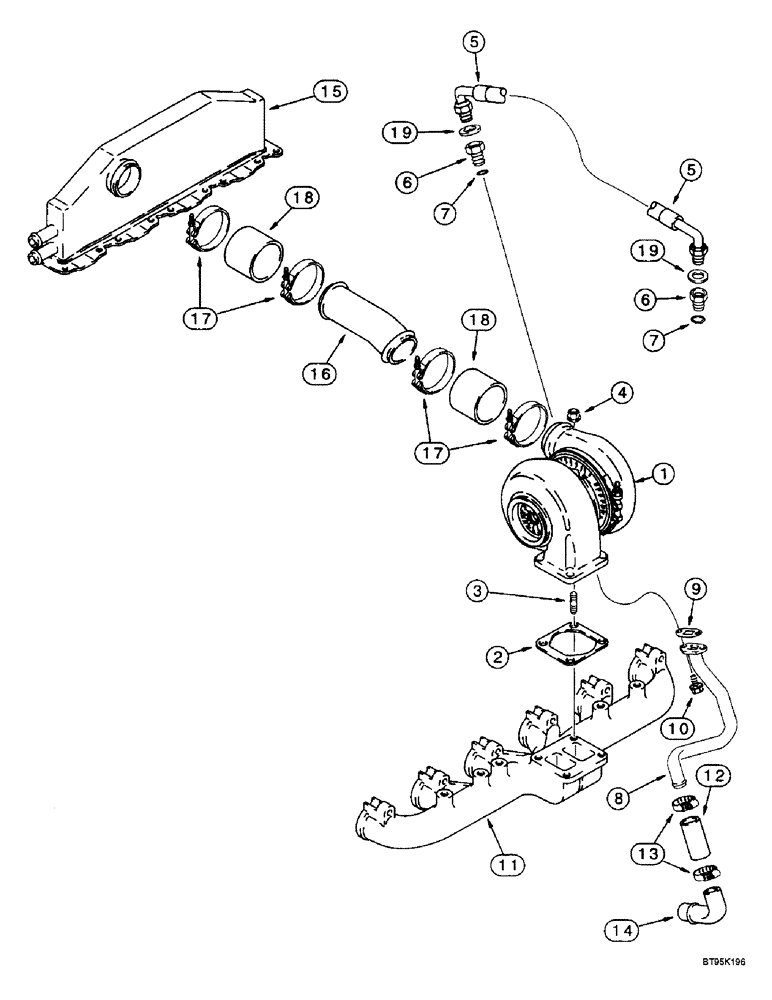

Запчасти Case IH 2188 (2-28) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE

1

J532065

TURBOCHARGER

ASSEMBLY - engine, new, parts list Figure 2-30

1шт.

1

JR802416

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER

1шт.

1

JC802416

CORE-TURBOCHARGER

Return Number

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

5

J918562

HOSE

- oil supply, turbocharger, 21-3/16 inch (538 mm) long

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Inlcudes: Ref. 7

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

8

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- oil drain, upper

1шт.

9

J928919

GASKET

- turbo oil drain tube (Replaces gasket J914388)

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

11

J906741

MANIFOLD

- exhaust, see Figure 2-26

1шт.

12

J903745

LARGE HOSE

HOSE - turbocharger oil drain, lower, 3 inch (76 mm) long

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

14

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

15

J914502

HEAT-EXCHANGER

AFTERCOOLER - air intake, see Figure 2-26

1шт.

16

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover, air

1шт.

17

J924386

COLLAR CLAMP

CLAMP - adjustable, special

4шт.

18

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube, 3 inch (76 mm) long

2шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
