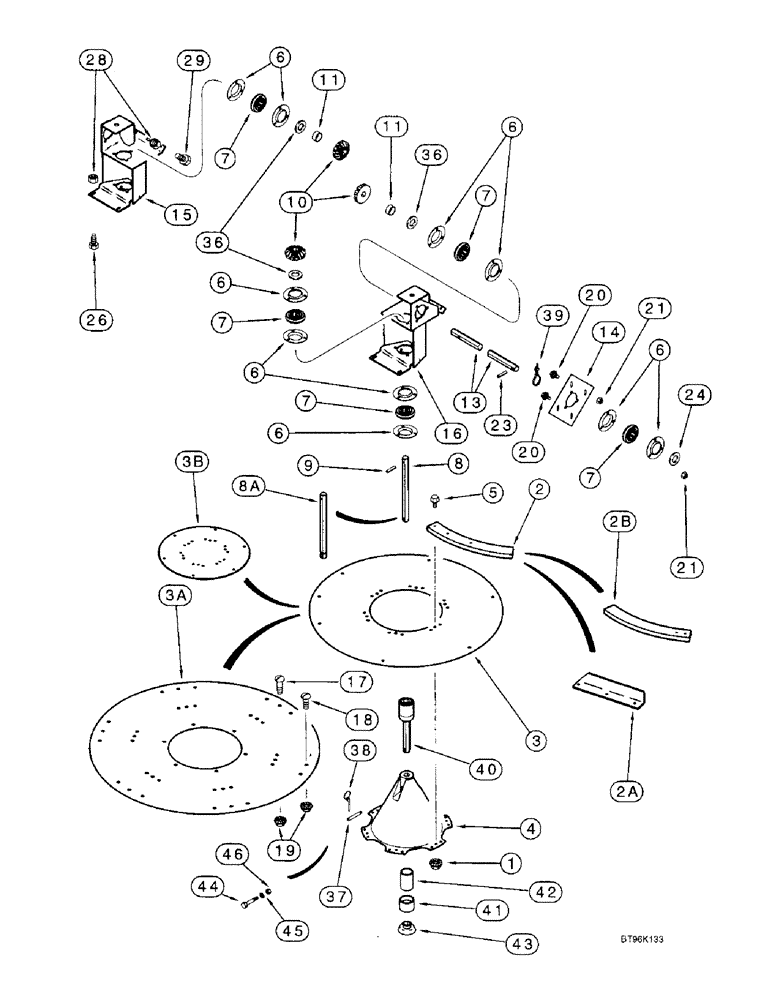

Запчасти Case IH 2188 (9F-02) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, , Used with Ref. 2 and 3 or 2B and 3B Flg, 5/16"-18

24шт.

2

194197C2

STRIP,50mm W x 363mm L

- rubber, models with straw spreader

12шт.

2a

103170A2

BAT

- models with straw and chaff spreader

12шт.

2b

1302790C1

STRIP

- rubber, models with straw spreader, rice

12шт.

3

192254C1

DISC

RETAINER - strip, models with straw spreader, grain

2шт.

3a

140189A1

DISC

RETAINER - bat, models with straw and chaff spreader

2шт.

3b

1302791C1

RETAINER

- strip, models with straw spreader, rice

2шт.

4

188218C6

CONE,Spreader Support

SUPPORT - straw spreader cone

2шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch, used with Ref. 2 and 3 or 2B and 3B, 12 used on models with straw spreader, rice, 24 used on models with straw spreader, grain

1шт.

5

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

- hex serrated flange, 5/16 NC x 1-1/2 inch, used with Ref. 2B and 3 B, used on models with straw spreader, rice

12шт.

6

462360R1

FLANGED BEARING

- bearing

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - straw spreader

7шт.

8

128440A1

SHAFT

- straw spreader, 12 inch long, models with straw spreader, grain and rice

2шт.

8a

109485A1

SHAFT

- straw and chaff spreader, 12 inch long, models with straw and chaff spreader

2шт.

9

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

194194C1

GEAR

14 teeth (Replaces gear assembly 185410C1), Includes: Ref. 10

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - spreader drive, 14 teeth, order gear assembly

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- 1-1/4 x 5/8 inch, cross bar

2шт.

13

192241C4

SHAFT

- cross, shaft

1шт.

14

186506C1

SUPPORT

PLATE - bearing

1шт.

15

109487A1

SUPPORT

- spreader drive, left-hand

1шт.

REF#'S 15-16, SPREADER DRIVE SUPPORTS--IF DLR IS LOOKING FOR THE STRAW SPREADER SHAFT SHIELD (RUBBER), ORDER P/N 140277A1 PER TERRY R (CASE#483548).

1шт.

16

109488A1

SUPPORT

- speader drive, right-hand

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch, used with Ref. 2A and 3A

12шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", used with Ref. 2A and 3A

24шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, used with Ref. 2A and 3A

36шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

25шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

25шт.

23

38-32424

PIN,3/8" x 1 1/2", Coiled

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

29

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

37

120270A2

PIN,9.52mm OD x 78mm L

- lock, models with straw spreader

2шт.

38

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock, models with straw spreader

4шт.

39

702093C1

CABLE TIE

STRAP - tie

6шт.

40

108000A1

COUPLING

COUPLER - vertical shaft, models with straw and chaff spreader

2шт.

41

140430A1

COUPLING

- anti-wrap, models with straw and chaff spreader

2шт.

42

140431A1

TUBE,48.26 mm OD, 75 mm Length

PIPE - 1-3/4 (45) ID x 1-15/16 (48) OD x 3 inch (75 mm) long, models with straw and chaff spreader

2шт.

43

140432A1

BOOT

- coupler, models with straw and chaff spreader

2шт.

44

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, Models with straw and chaff spreader

2шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Models with straw and chaff spreader 3/8", SAE

4шт.

46

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking, Models with straw and chaff spreader 3/8"-16, GB

2шт.
