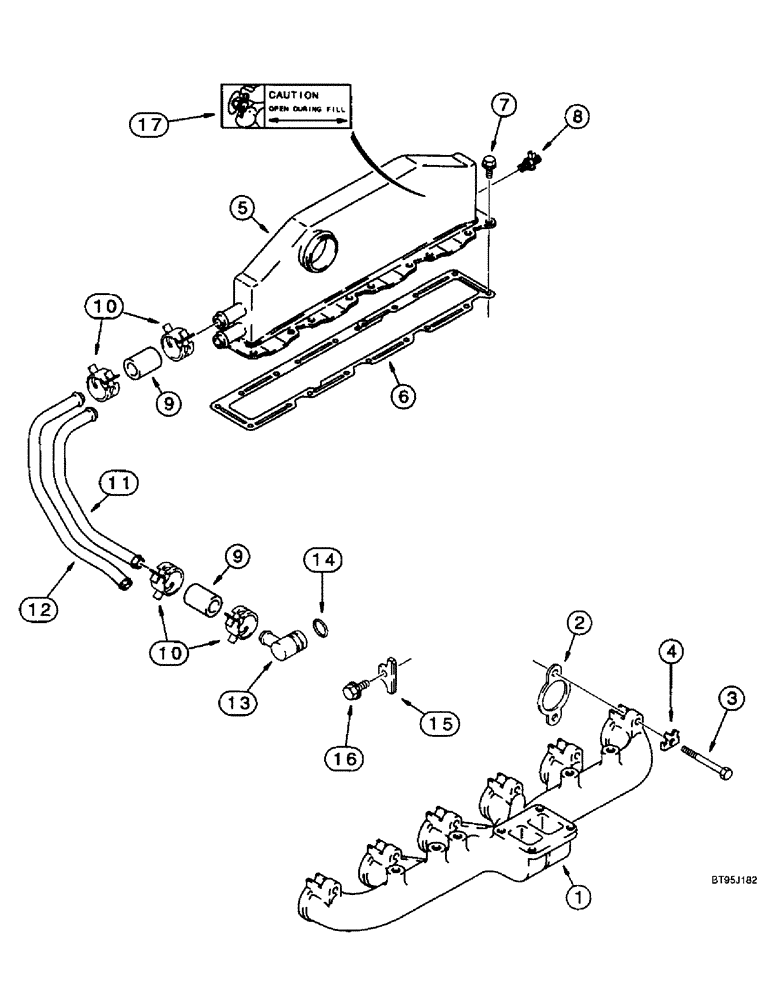

Запчасти Case IH 2188 (2-26) - EXHAUST AND INTAKE AFTERCOOLER MANIFOLDS, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE

1

J906741

MANIFOLD

- exhaust

1шт.

2

J929012

GASKET,0.5mm Thk

- exhaust manifold, 1.0 mm thick (Replaces gasket J921787)

6шт.

3

J929537

BOLT

- hex, special (Replaces bolt 814-10070)

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, manifold bolt

12шт.

5

J914502

HEAT-EXCHANGER

AFTERCOOLER - air intake, intake aftercooler manifold

1шт.

6

J914311

MANIFOLD GASKET

- intake manifold aftercooler

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Aftercooler to cylinder head, Intake aftercooler manifold Hex Flg Hd, M8 x 1.25 x 25

18шт.

8

J909394

COCK, DRAIN

VALVE - drain, air bleed, intake aftercooler manifold

1шт.

9

J918611

HOSE,18.50 mm ID x 63.00 mm

Tube to Aftercooler, Intake Manifold 18.50 mm ID x 63.00 mm

4шт.

10

J918163

CLIP

CLAMP - spring type, hose retaining, intake aftercooler manifold

8шт.

11

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake aftercooler manifold

1шт.

12

J908402

TUBE,19.05 mm OD

- water outlet, intake aftercooler manifold

1шт.

13

J917394

ELBOW

CONNECTOR - water inlet, intake aftercooler manifold

2шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Intake aftercooler manifold -120, 70 Duro, .987" ID x .103" Thk

2шт.

15

J906439

PLATE

- mounting, intake aftercooler manifold

1шт.

16

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Intake aftercooler manifold

1шт.

17

J910778

DECAL

- Caution, open during fill, intake aftercooler manifold

1шт.
