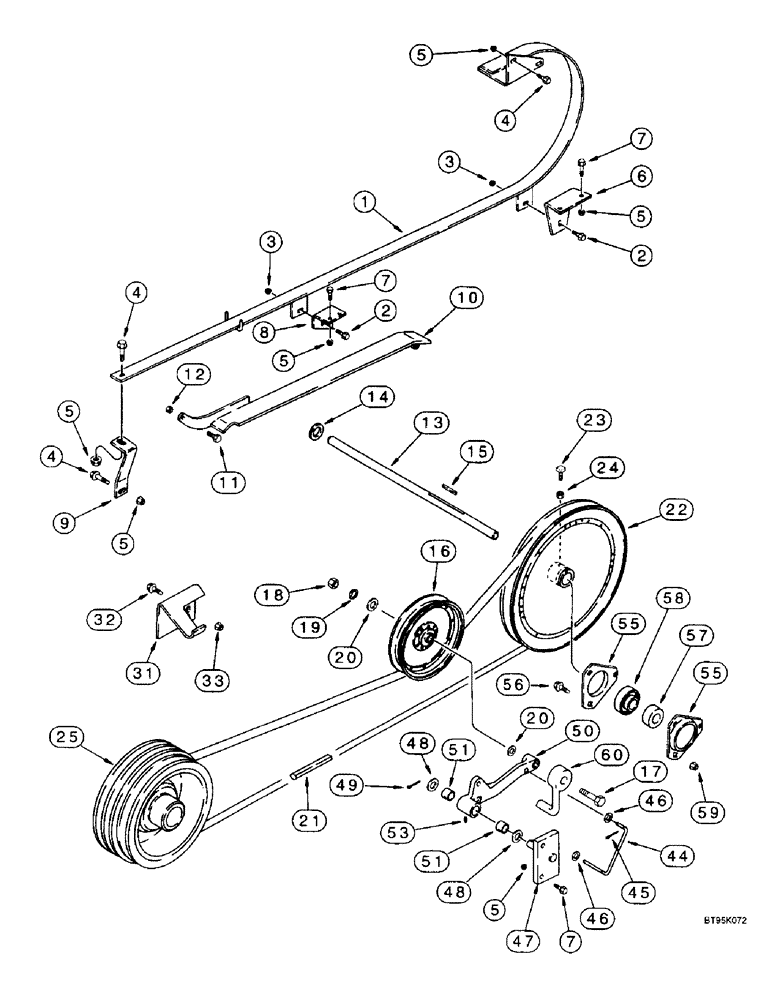

Запчасти Case IH 2188 (9E-12) - GRAIN TANK UNLOADER, BELT DRIVE (17) - GRAIN TANK & UNLOADER

1

126544A2

GUIDE

- belt, unloader

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

4

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

192870C2

SUPPORT

ANGLE - support

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

4шт.

8

126540A1

SUPPORT

ANGLE - center support, belt guide

1шт.

9

126546A1

GUIDE

SUPPORT - belt guide, lower, rear

1шт.

10

193759C5

SUPPORT

GUIDE - belt, upper

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

12

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

13

1347352C1

SHAFT

- auger

1шт.

14

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

15

586879R1

KEY

- square parallel, 5/16 x 2 inch

1шт.

16

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

- drive, 8 inch OD

1шт.

17

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

18

425-1010

NUT,5/8"-11, G5

1шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

21

1989217C1

V-BELT,22.327 mm W x 3712.09 mm L

V-BELT , Drive 22.327 mm W x 3712.09 mm L

1шт.

22

1994762C2

PULLEY

- driven

1шт.

23

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

SCREW - set, square head, 5/16 NC x 1 inch, cup point

2шт.

24

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

25

122948A1

PULLEY

- drive, auxiliary pump

1шт.

31

126554A1

SUPPORT

- belt guide, upper

1шт.

32

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

44

193820C1

ROD

- retainer

1шт.

45

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

46

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

47

1324456C1

SUPPORT

- arm, tightener

1шт.

48

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

2шт.

49

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

50

112008A1

ARM

ASSEMBLY - belt tightener, Includes: Ref. 51

1шт.

51

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

- arm, 3/4 ID x 7/8 OD x 3/4 inch wide

2шт.

53

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

55

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

4шт.

56

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

57

455104R11

COLLAR

BEARING - ball

2шт.

58

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

- locking, bearing

2шт.

59

231-5146

FLANGE NUT,3/8"-16

6шт.

60

194894C1

ROD

- belt, tighener

1шт.
