Запчасти Case IH 2188 (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

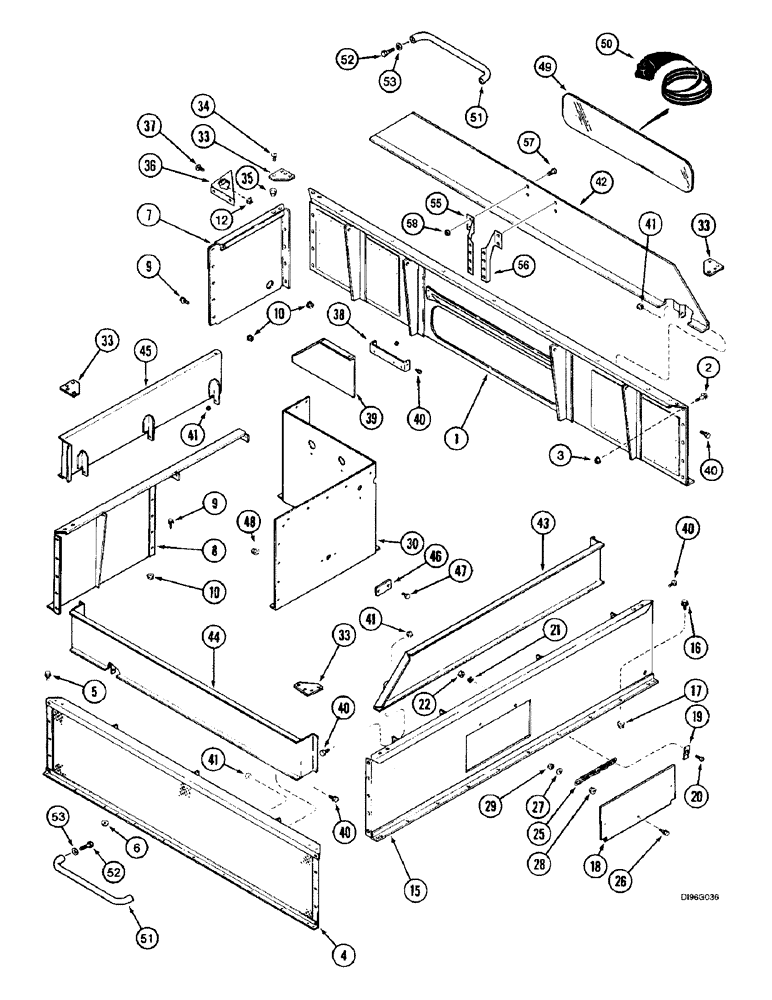

Схема запчастей Case IH 2188 - (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER
41
42
15
4
40
44
1
2
40
53
28
40
56
45
16
52
27
35
52
8
25
22
41
10
34
36
40
33
53
18
20
47
30
38
10
41
21
9
46
17
33
49
19
9
51
57
58
3
51
29
40
26
6
37
12
7
41
39
48
5
50
43
33
33
55

Артикул

Название

Примечание

Количество

1

189452A1

EXTENSION

- grain tank, front, includes decal, see Figure 9H-38 for decal

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

25шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

25шт.

4

1327593C5

EXTENSION

- grain tank, rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

21шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

21шт.

7

1321775C2

EXTENSION

- grain tank, left-hand front

1шт.

8

1321771C1

EXTENSION

- grain tank, left-hand rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

29шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

15

1327640C2

RISER

EXTENSION - grain tank, right-hand

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

18

1327644C2

PLATE

DOOR - extension

1шт.

19

167800C1

CLIP

- door retaining clip

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

2шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

- latch

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

30

1317635C2

SHEET

SUPPORT - center extension, left-hand

1шт.

33

1321757C1

PLATE

BAR - extension

4шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

36

1327510C1

SUPPORT

- center extension gusset

1шт.

38

1321802C1

CHANNEL

- flip-up, left-hand front

1шт.

39

1321829C1

EXTENSION

- flip-up, left-hand front

1шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

41

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

16шт.

42

141426A1

EXTENSION

- flip-up, upper front

1шт.

43

1979256C1

EXTENSION

- flip-up, right-hand

1шт.

44

1979230C3

EXTENSION

- flip-up, rear

1шт.

45

1979232C1

CABLE EXTENSION

EXTENSION - flip-up, left-hand rear

1шт.

46

1317645C2

PLATE

COVER - bearing hole

1шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

49

184957A1

GLASS

- window, grain tank

1шт.

50

188214A1

SEAL, GLASS

MOULDING - glass, grain tank

1шт.

51

178621A1

RAMP

HANDRAIL - grain tank extension

2шт.

This has threaded connector's pressed into the ends of this handrail. The P/N is 134382A1.

1шт.

52

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

53

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

4шт.

54

198820C1

GROMMET

- plug, if used, not shown

1шт.

55

241682A1

SUPPORT

BRACKET - level sensor, left-hand

1шт.

56

241683A1

SUPPORT

BRACKET - level sensor, right-hand

1шт.

57

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

58

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

37

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.

Выбрано товаров: 52
