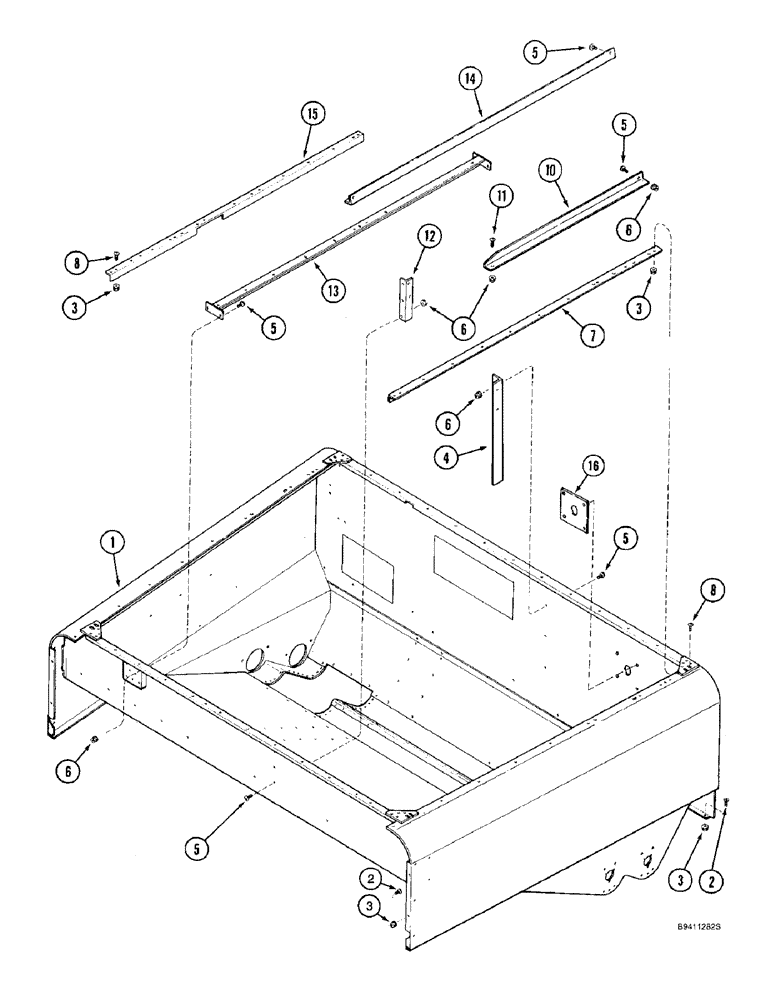

Запчасти Case IH 2188 (9E-02) - GRAIN TANK AND UPPER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

189455A2

HOPPER

TANK - grain, includes decal, see Figure 9H-38

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

2

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

192765C1

SUPPORT

ANGLE - grain tank tie, front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

195398C3

SUPPORT

ANGLE - grain tank, top right-hand

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

10

188414C6

ANGLE

- grain tank tie

1шт.

12

181682C2

SUPPORT

ANGLE - grain tank tie, rear

1шт.

13

192855C1

SUPPORT

- grain tank tie

1шт.

14

192767C8

SUPPORT

ANGLE - grain tank tie

1шт.

15

195397C3

ANGLE

- grain tank, top left-hand

1шт.

16

179296A2

LARGE PLATE

PLATE - harness mounting

1шт.

275952A1

PACKAGE

KIT grain tank reinforcement (Direct ship only)

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

1шт.
