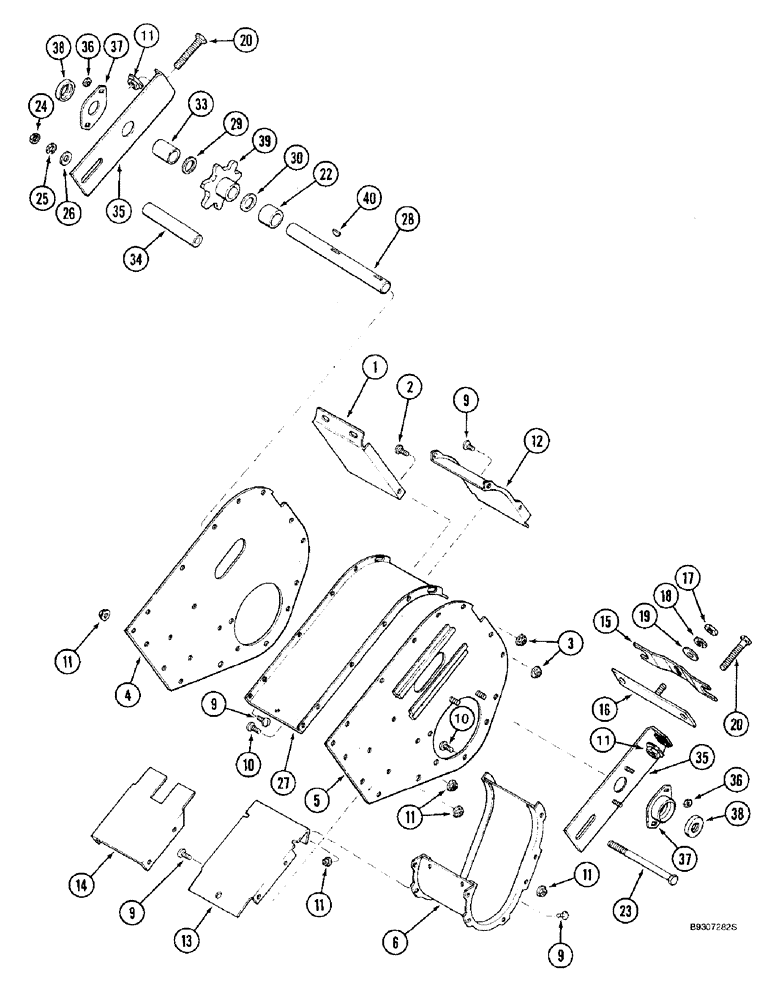

Запчасти Case IH 2188 (9D-24) - TAILINGS ELEVATOR, HEAD (16) - GRAIN ELEVATORS & AUGERS

1

192426C1

SUPPORT

- elevator upper

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

4

181366C1

SIDE PLATE

COVER - head, left-hand

1шт.

5

181367C1

SIDE PLATE

COVER - head, right-hand

1шт.

6

188119C1

TROUGH

- head

1шт.

9

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

24шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

11шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

36шт.

12

191776C1

COVER

COVER - head

1шт.

13

191782C1

SUPPORT

COVER - head, lower

1шт.

14

181327C1

BOTTOM

COVER - head, lower

1шт.

15

181376C1

CLAMP

- tightener

1шт.

16

181375C1

SUPPORT

BAR - tightener

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

667486R1

BOLT

BOLT - hex, 1/2 NC x 3-1/2 inch

2шт.

22

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

1шт.

23

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch, grade 2

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

27

191783C1

TOP COVER

COVER - head, top

1шт.

28

191785C1

SHAFT

- head

1шт.

29

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

30

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

33

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

1шт.

34

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

1шт.

35

181364C1

SUPPORT

- shaft

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

37

214490C91

BALL BEARING,25.4mm ID

BEARING - ball, head, shaft

2шт.

For other setup around bearing 37, see the European Catalog

1шт.

38

455102R21

COLLAR

- locking, bearing, includes set screw

2шт.

39

168683C1

SPROCKET

- drive, chain conveyor

1шт.

40

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.
