Запчасти Case IH 2188 (9D-22) - TAILINGS ELEVATOR, HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS

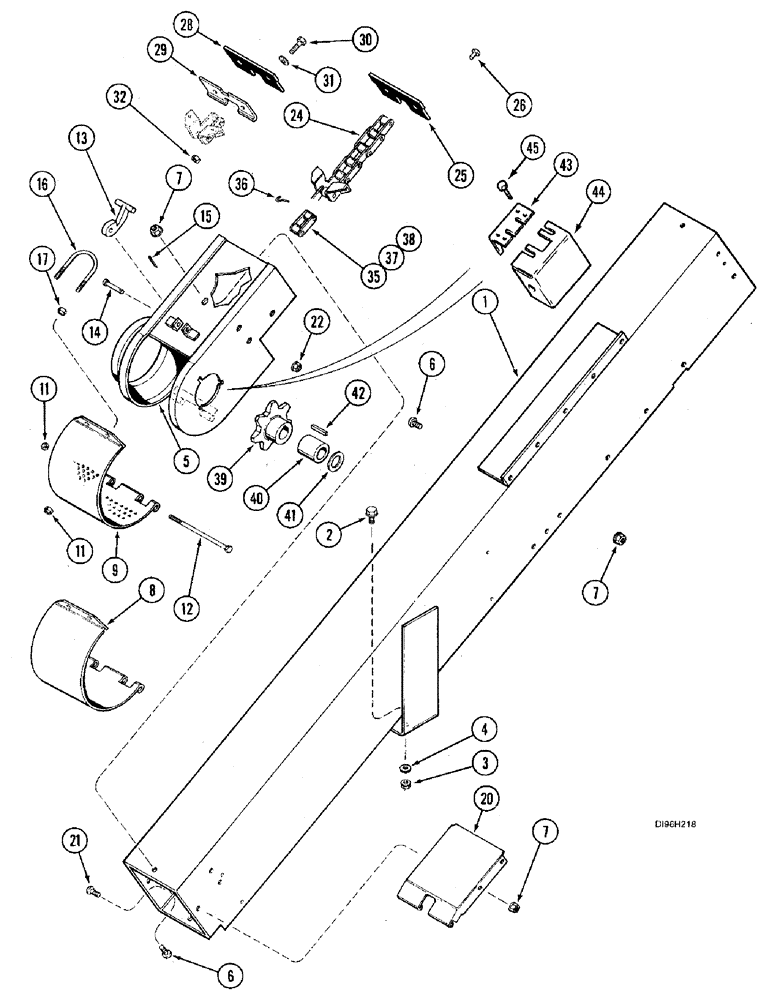

Схема запчастей Case IH 2188 - (9D-22) - TAILINGS ELEVATOR, HOUSING AND CONVEYOR (16) - GRAIN ELEVATORS & AUGERS
30
11
21
25
2
8
36
11
4
7
6
41
44
17
6
42
39
37
12
3
29
20
9
43
1
40
14
26
24
32
7
31
15
45
22
28
16
35
13
5
38
7

Артикул

Название

Примечание

Количество

1

192430C2

ELEVATOR TUBE

HOUSING - elevator

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

5

183160C1

BOOT

- elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

8

156910C1

DOOR

- boot, non-perforated

1шт.

9

174193C1

DOOR

- boot, perforated

1шт.

11

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

12

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

- hex, 5/16 NC x 6-1/2 inch

1шт.

13

155909C1

LATCH

- door

1шт.

14

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - door

1шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

20

191790C2

END

HINGE - bottom

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY - elevator, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

CONVEYOR - elevator, order conveyor assembly 1303114C91

1шт.

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY - rubber, Includes: Ref. 25 and 26

27шт.

25

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

26

185315C1

RIVET

- 3/8 x 5/8 inch

2шт.

1303124C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - two piece, service only, does not include conveyer, Includes: Ref. 28 - 32

1шт.

28

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

29

1303125C1

STEEL FLIGHT

FLIGHT - conveyor, steel

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

32

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

35

241-15113

LINK,41.4mm Pitch

LINK - connecting, single pitch, No. C550, 1-5/8 inch pitch

1шт.

36

23442R1

PIN,2.36mm OD

- roller S Type, No. 550 chain

1шт.

37

241-18113

LINK,41.4mm Pitch

LINK - offset, single pitch, No. C550, 1-5/8 inch pitch

1шт.

38

241-12113

LINK,Chain, 41.4mm Pitch

LINK - roller, single pitch, No. C550, 1-5/8 inch pitch

1шт.

39

144031A1

SPROCKET

- conveyor chain, 7 teeth

1шт.

40

144038A1

SPACER

- 1-1/4 x 1-3/8 inch

1шт.

41

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

42

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

43

183869C3

SUPPORT

BRACKET - sensor, Australia only

1шт.

44

177449A2

COVER

- shaft, right-hand, Australia only

1шт.

45

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4-14 x 1/2 inch

2шт.

Выбрано товаров: 41
