Запчасти Case IH 2188 (9D-20) - CLEANING SHOE DOOR AND SHIELD, MODELS WITH STRAW AND CHAFF SPREADER (16) - GRAIN ELEVATORS & AUGERS

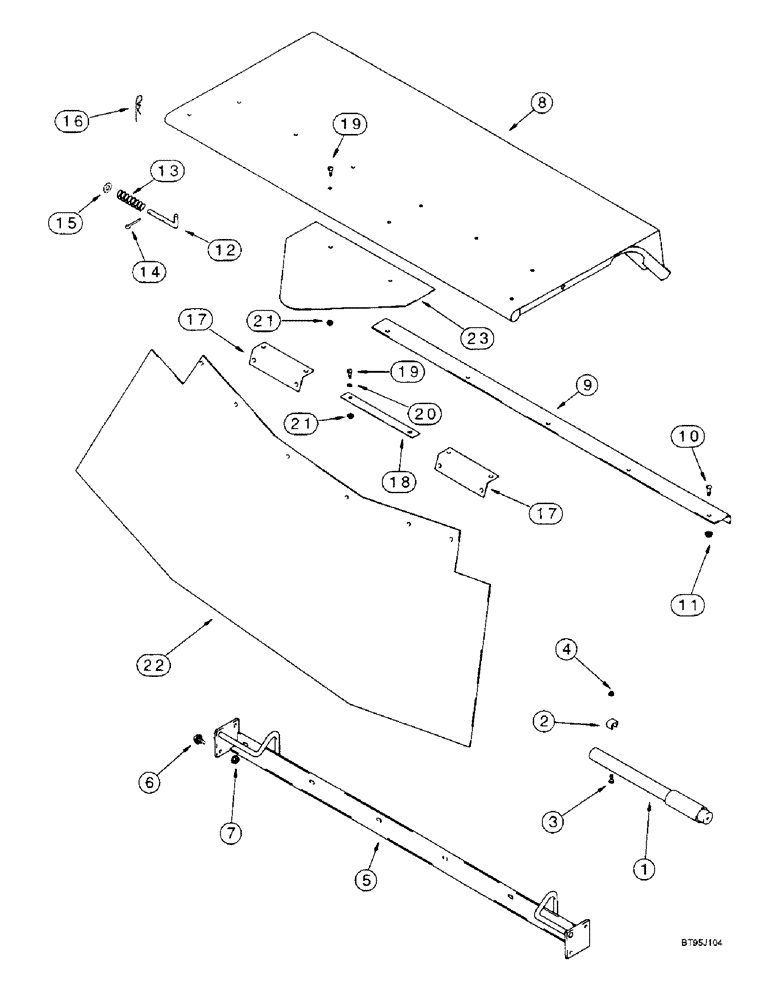

Схема запчастей Case IH 2188 - (9D-20) - CLEANING SHOE DOOR AND SHIELD, MODELS WITH STRAW AND CHAFF SPREADER (16) - GRAIN ELEVATORS & AUGERS
7
18
9
21
15
22
19
23
13
19
4
1
11
17
17
6
3
16
14
10
5
12
8
21
20
2

Артикул

Название

Примечание

Количество

1

106743A1

HANDLE

- extension

1шт.

2

106744A1

CLIP

- retainer, handle extension

2шт.

3

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

5

126091A1

SUPPORT

- dribble sheet

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

122152A2

DOOR

- cleaning shoe

1шт.

9

126094A2

SUPPORT

HINGE - door

1шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

12

186736C3

ROD

PIN - latch

2шт.

13

540815R2

SPRING

- latch pin

2шт.

14

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

15

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

2шт.

16

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

2шт.

17

137480A1

SUPPORT

- shield

2шт.

18

137527A1

SUPPORT

STRIP - support

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

10шт.

20

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

6шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

22

122625A2

GUARD

SHIELD - cleaning shoe door

1шт.

23

190692A1

DEFLECTOR

- tailgate, cleaning shoe door

1шт.

Выбрано товаров: 23
