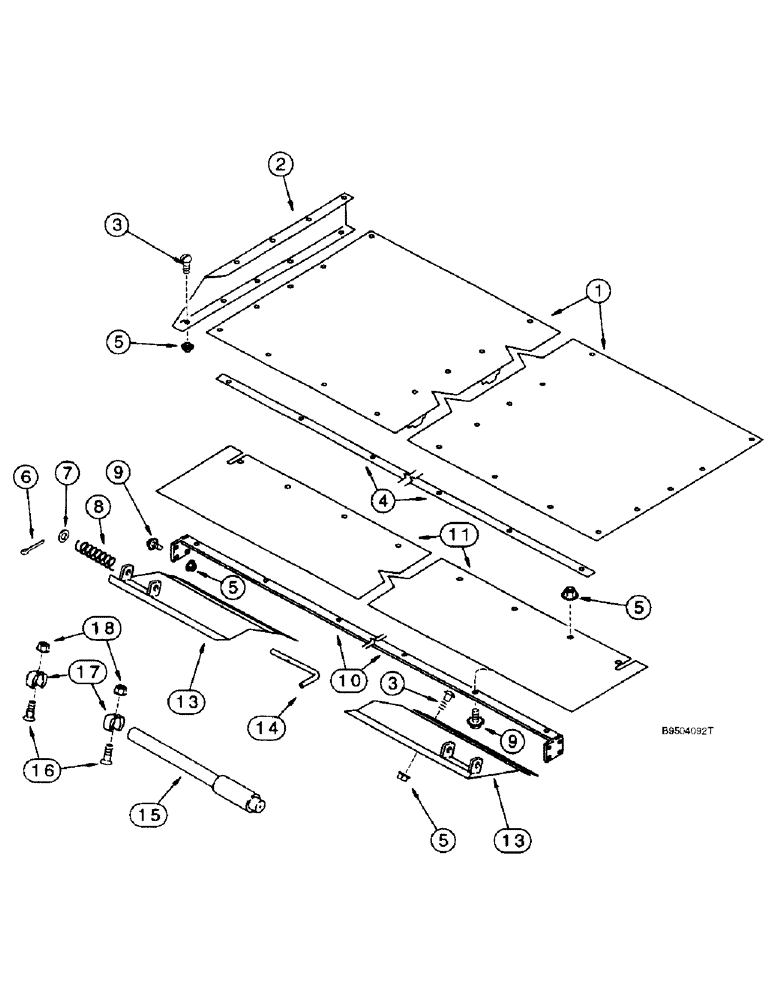

Запчасти Case IH 2188 (9D-18) - TAILINGS AUGER TROUGH PANEL AND GATE, MODELS WITH STRAW SPREADER (16) - GRAIN ELEVATORS & AUGERS

1

1970423C1

SHEET

PANEL - tailings return

1шт.

2

1346963C1

SUPPORT

- tailings support pan

2шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

4

122851A1

STRAP

SEAL - panel

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

6

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

7

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

2шт.

8

540815R2

SPRING

- latch pin

2шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

10

1970529C1

SUPPORT

- tailings door

1шт.

11

1979194C1

SEAL

- tailings panel

1шт.

13

191978C2

TAILGATE

GATE - trough

1шт.

14

186736C3

ROD

PIN - latch, gate lock

2шт.

15

106743A1

HANDLE

- extension

1шт.

16

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

17

106744A1

CLIP

- retainer, handle extension

2шт.

18

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.
