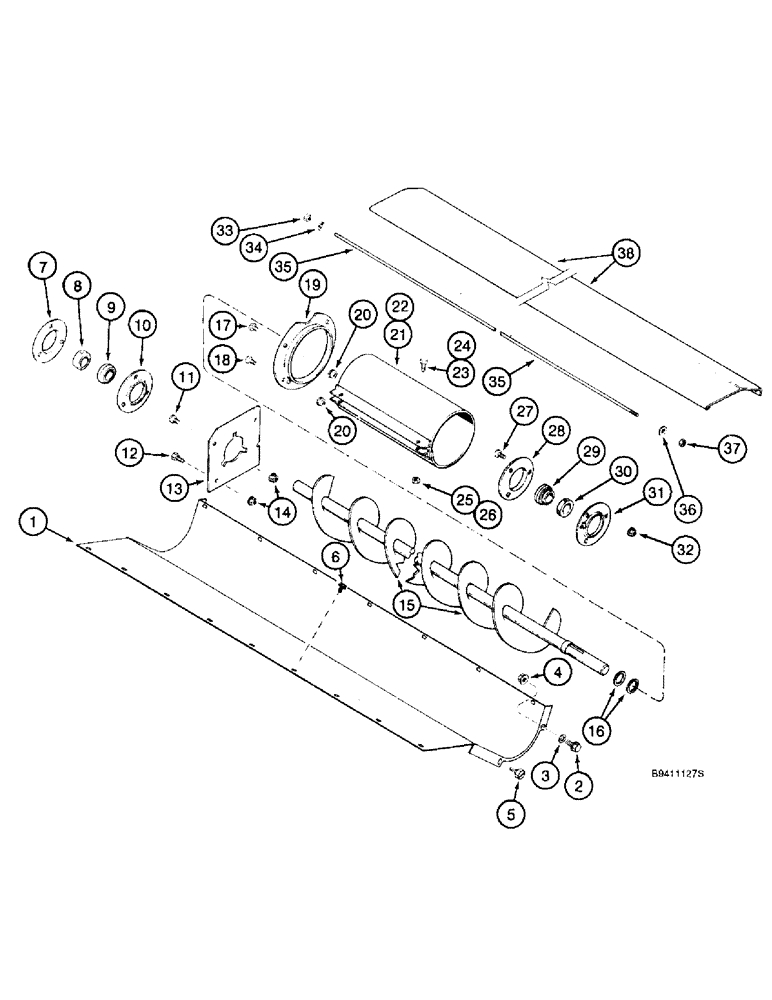

Запчасти Case IH 2188 (9D-16) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

1346938C1

TROUGH

- auger

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

5

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

7

939460R91

FLANGE

- bearing, with straight lube fitting

1шт.

8

557995R11

COLLAR

- bearing, with set screw

1шт.

9

156011C92

BALL BEARING

BEARING - ball, auger

1шт.

10

939461R1

FLANGE

- bearing

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

13

183158C1

COVER

PLATE - bearing support

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

15

144028A2

AUGER

- tailings

1шт.

16

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch, if used

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

18

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

19

160324C2

FLANGE

- mounting, auger cover

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

21

192696C1

EXTENSION

- extension, non-perforated

1шт.

22

195075C1

SCREEN

- extension, perforated

1шт.

23

424-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 2

- hex, 5/16 NC x 1-1/4 inch, grade 2, used with 192696C1 non-perforated clamp

2шт.

24

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch, used with 195075C1 perforated clamp

2шт.

25

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , Used with 192696C1 non-perforated clamp (Replaces nut 9412083) 5/16"-18, GC

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, used with 195075C1 perforated clamp

2шт.

27

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

BOLT - serrated slotted truss head, 3/8 NC x 2 inch (Replaces screw 117657A1)

1шт.

28

939461R1

FLANGE

- bearing

1шт.

29

156011C92

BALL BEARING

BEARING - ball, auger

1шт.

30

557995R11

COLLAR

- bearing, with set screw

1шт.

31

939460R91

FLANGE

- bearing, with straight lube fitting

1шт.

32

231-5146

FLANGE NUT,3/8"-16

6шт.

33

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

1шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

35

185197C1

ROD

- auger door, 1590 mm

1шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

38

185196C1

DOOR

- trough

1шт.

27

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

5-6шт.
