Запчасти Case IH 2188 (9D-06) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS

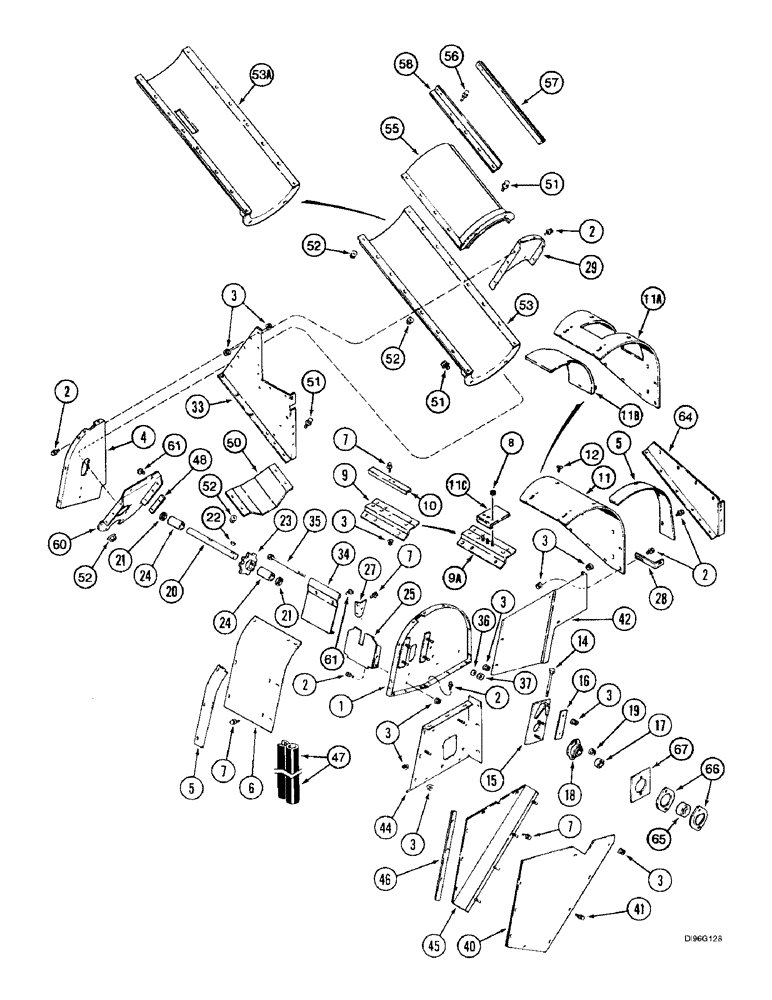

Схема запчастей Case IH 2188 - (9D-06) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS
11b
28
17
24
51
46
3
7
23
37
16
60
2
65
40
56
55
4
9
67
33
66
11a
20
22
61
2
51
41
11c
52
64
12
52
19
21
27
3
9a
7
3
7
7
53a
8
5
44
1
25
3
35
10
36
47
34
18
42
61
15
3
52
52
2
3
3
53
3
48
29
5
58
2
14
11
50
51
24
2
21
6
57
45

Артикул

Название

Примечание

Количество

1

1319908C1

SIDE PLATE

SIDE - elevator head, right-hand

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

1319901C1

SIDE PLATE

SIDE - elevator head, left-hand

1шт.

5

1321230C1

PLATE

SEAL - rear cover

1шт.

6

1319940C1

COVER

- rear

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

8

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

9

1319959C1

SUPPORT

ANCHOR - chain tightener, conveyer, prior to combine P.I.N. JJC0191483

1шт.

9a

198581A2

STIFFENER

ANCHOR - chain tightener, conveyer, combine P.I.N. JJC0191483 and after

1шт.

10

1317474C1

CHANNEL

- lock, tightener, with two bolt holes, no longer available, order 1317474C2 channel

1шт.

10a

1317474C2

CHANNEL

- lock, tightener, with four bolt holes, not shown

1шт.

11

1319941C1

COVER

- head, front, prior to combine P.I.N. JJC0191483

1шт.

11a

198602A1

COVER

- head, front, combine P.I.N. JJC0191483 and after on models without yield monitor or AFS (R)

1шт.

11a

238646A1

COVER

- head, front, combine P.I.N. JJC0191483 and after on models with yield monitor or AFS (R)

1шт.

11b

229609A2

COWL

HOOD - elevator head, front, combine P.I.N. JJC0191483 and after

1шт.

11c

197877A1

SUPPORT

BRACE - hole cover, front elevator head, combine P.I.N. JJC0191483 and after

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- hex, special, 1/2 NC x 5-1/2 inch

2шт.

15

1317251C2

SUPPORT

- headshaft

2шт.

16

1310040C1

BAR

- guide

4шт.

17

557995R11

COLLAR

- bearing, with set screw

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft, if used, optional, see Refs. 65, 66, and 67 on Figure 9D-8

2шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1317470C1

SHAFT

- elevator head

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

23

1317192C1

SPROCKET

- drive

1шт.

24

1317471C1

SPACER

- sprocket

2шт.

25

1318476C1

PLATE

- extension

1шт.

27

1321553C1

BRACKET

ANGLE - support

1шт.

28

1321833C1

STRAP

BRACKET - brace

1шт.

29

189456A1

PLATE

- side, left-hand front, includes decal

1шт.

33

1321550C2

SUPPORT

PANEL - support, rear

1шт.

34

1319954C1

BRACKET

SECTION - cut-off

1шт.

35

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

- hex, 5/16 NC x 9 inch

1шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

40

1321095C1

PANEL

SHEET - side, right-hand, inclined tunnel support

1шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

42

1321097C2

COVER

- auger

1шт.

44

1321060C1

SUPPORT

- mounting

1шт.

45

1321497C1

PANEL

SHEET - side, left-hand, inclined tunnel support

1шт.

46

1321155C1

SPACER

BAR - spacer

1шт.

47

1321263C1

RUBBER SEAL,1137mm L

- flange, head

2шт.

48

1321554C1

PLATE

BAR - filler

1шт.

50

1321556C1

COVER

- U-joint, auger

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

53

1321557C2

TUBE,887 mm Length

TROUGH - tube, lower, prior to combine P.I.N. JJC0191483

1шт.

53a

199006A2

TUBE,887 mm Length

TROUGH - tube, lower, combine P.I.N. JJC0191483 and after

1шт.

55

1321560C2

TROUGH

- tube, upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

57

1321569C3

ANGLE

BRACKET - support, front

1шт.

58

1321568C3

ANGLE

BRACKET - support, rear

1шт.

60

1979134C1

SUPPORT

PLATE - support, auger bearing

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

4шт.

64

1321552C2

SUPPORT

PLATE - side, front

1шт.

65

156011C92

BALL BEARING

BEARING - ball, if used, optional, see Ref. 18 on Figure 9D-4

2шт.

66

581469R1

FLANGE,Bearing

- bearing retainer, used with Ref. 65 and 67, if used

4шт.

67

1979642C1

SPACER

- bearing flange, used with Ref. 66 and 67, if used

2шт.

Выбрано товаров: 61
