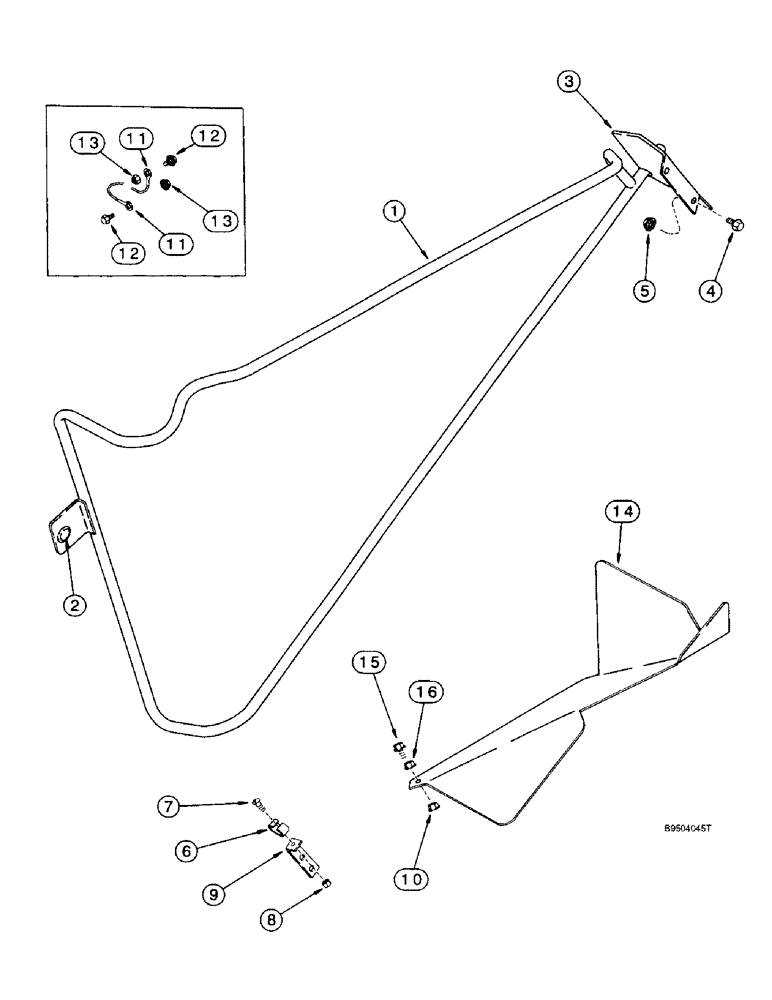

Запчасти Case IH 2188 (9C-22) - RIGHT HAND REAR INLET SHIELDS AND SEPARATOR (15) - BEATER & CLEANING FANS

1

142480A3

GUARD

SHIELD - right-hand rear

1шт.

2

182925A1

LOCK

LATCH - shield

1шт.

2

182926A1

LOCK

LATCH - shield, Australia only

1шт.

3

142484A2

SUPPORT

- right-hand rear shield

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

6

185224A1

CLIP

- right-hand rear shield

1шт.

7

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 8 mm

1шт.

8

824-1404

NUT,M4, Cl 5

- hex, 4 mm - 0.7, class 5

1шт.

9

142485A2

LARGE PLATE

PLATE - right-hand rear lower

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

11

132657A2

CABLE

- tether

1шт.

12

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

13

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

14

181942A2

SHIELD

- right-hand rear lower

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
