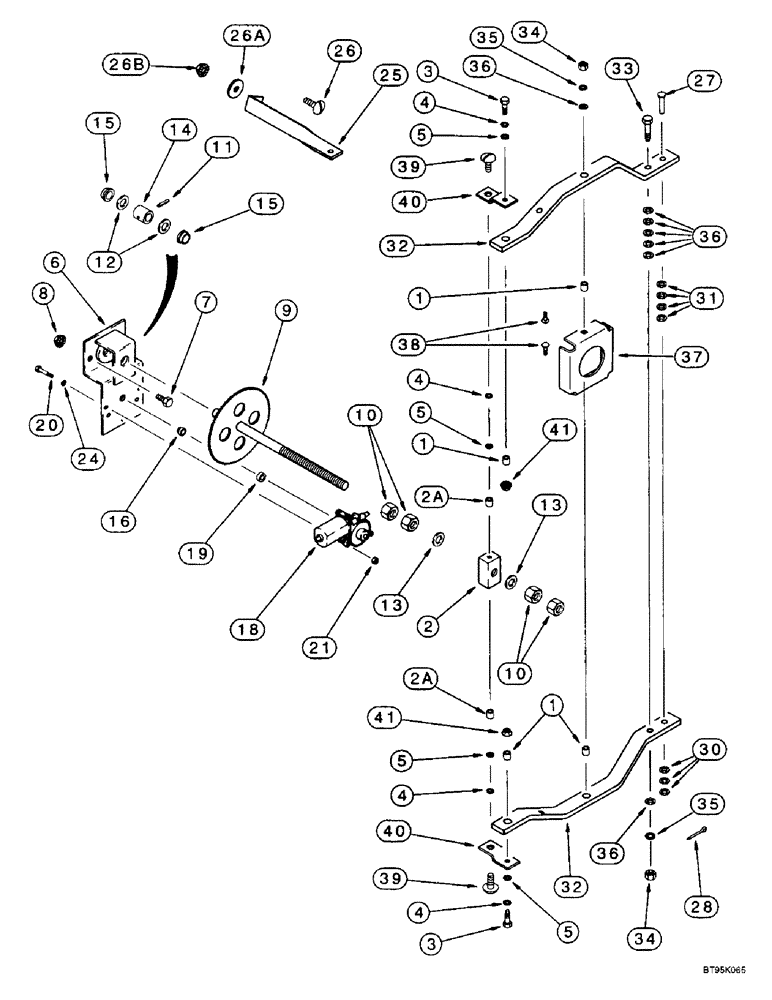

Запчасти Case IH 2188 (9C-14) - CLEANING FAN, DRIVE SPEED CONTROL (15) - BEATER & CLEANING FANS

1

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

4шт.

2

181206C1

BLOCK

- shaft, fan speed control

1шт.

2a

183916A1

SPACER

- 1/2 x 3/16 inch, control shaft block

2шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

6

181199C2

SUPPORT

- speed control motor

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

142848A1

GEAR

SHAFT - adjusting gear

1шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

12

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

2шт.

13

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

- thrust

2шт.

14

181205C1

SPACER

- adjusting gear shaft

1шт.

15

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

- adjusting gear shaft

2шт.

16

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

- electric motor

1шт.

18

111787A2

MOTOR, ELECTRIC

MOTOR - electric

1шт.

18

111787A2R

REMAN-ELECTRIC MOTOR

2188 (1/95-12/97)

1шт.

18

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

19

113485A1

SPACER

- 17 mm

2шт.

20

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

186283C1

SUPPORT

- fan drive control

1шт.

26

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

26a

492-11038

LOCK WASHER,3/8"

1шт.

26b

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

27

439-1624

HEADED PIN,3/8" x 1 1/2"

PIN - headed, 3/8 x 1-1/2 inch, grade 2

1шт.

28

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

31

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

1шт.

32

194850C2

SUPPORT

- fan control

2шт.

33

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

37

194852C2

SUPPORT

- fan driver

1шт.

38

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x 1-1/4 inch, grade 2

2шт.

39

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

40

142853A2

SUPPORT

BRACKET - offset, Serial Range: block-support

2шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
