Запчасти Case IH 2188 (9C-08) - CLEANING FAN, HOUSING (15) - BEATER & CLEANING FANS

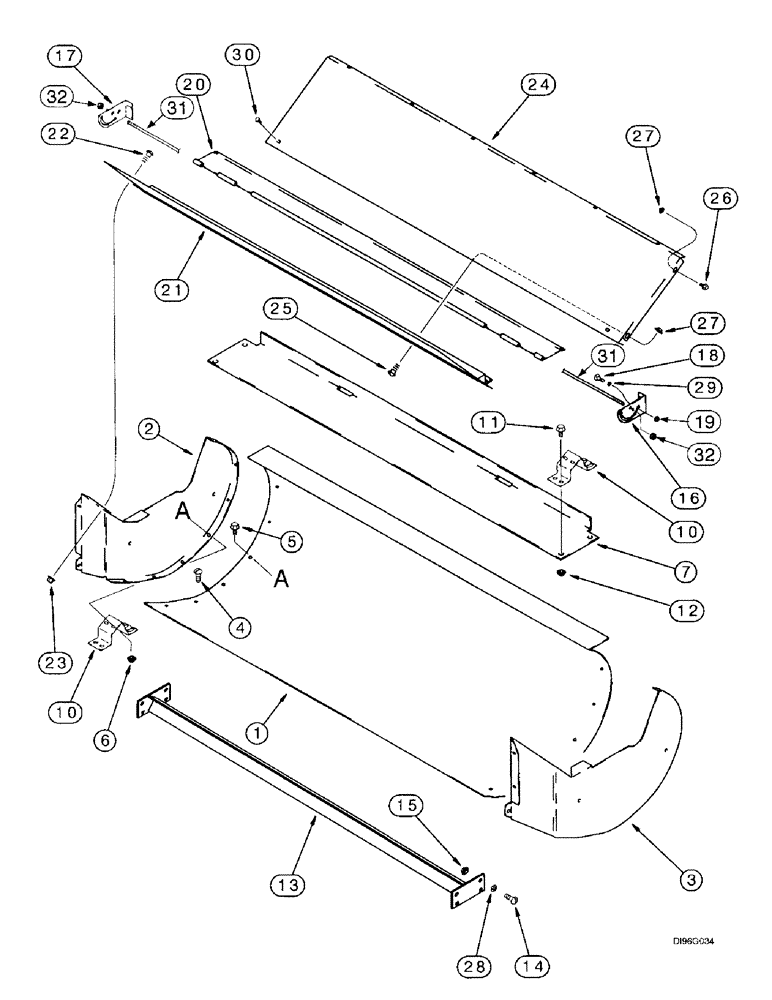

Схема запчастей Case IH 2188 - (9C-08) - CLEANING FAN, HOUSING (15) - BEATER & CLEANING FANS
4
10
31
13
31
1
11
26
12
17
6
21
15
32
19
2
20
18
30
10
23
25
32
3
27
14
29
28
27
7
16
5
22
24

Артикул

Название

Примечание

Количество

1

1347466C1

HOUSING

- cleaning fan

1шт.

2

1347012C2

PLATE

- end, left-hand

1шт.

3

1347013C2

PLATE

- end, right-hand

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

14шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

7

1989627C2

SUPPORT

- front, housing mounting brackets

1шт.

10

1541543C1

BRACKET

- mounting, fan housing, front

2шт.

11

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

191928C1

SUPPORT

- fan housing, rear

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

15

231-5146

FLANGE NUT,3/8"-16

6шт.

16

1989694C1

LARGE PLATE

PLATE - lock, fan cutoff, right-hand (Replaces plate 1541536C1)

1шт.

17

1989693C1

LARGE PLATE

PLATE - lock, fan cutoff, left-hand (Replaces plate 1541535C1)

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

1347030C1

HOOD

PLATE - fan cutoff

1шт.

21

1541547C1

PLATE

COVER - upper, cleaning fan

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

24

1989340C1

PLATE

- filler

1шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11шт.

28

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

4шт.

29

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch, if used

2шт.

30

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

- hex, 5/16 NC x 1/2 inch, grade 2

2шт.

31

185197C1

ROD

- auger door, 1590 mm

1шт.

32

231-5345

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

2шт.

Выбрано товаров: 30
