Запчасти Case IH 2188 (9C-06) - DISCHARGE BEATER PAN, RICE COMBINE, SPRING LOADED (15) - BEATER & CLEANING FANS

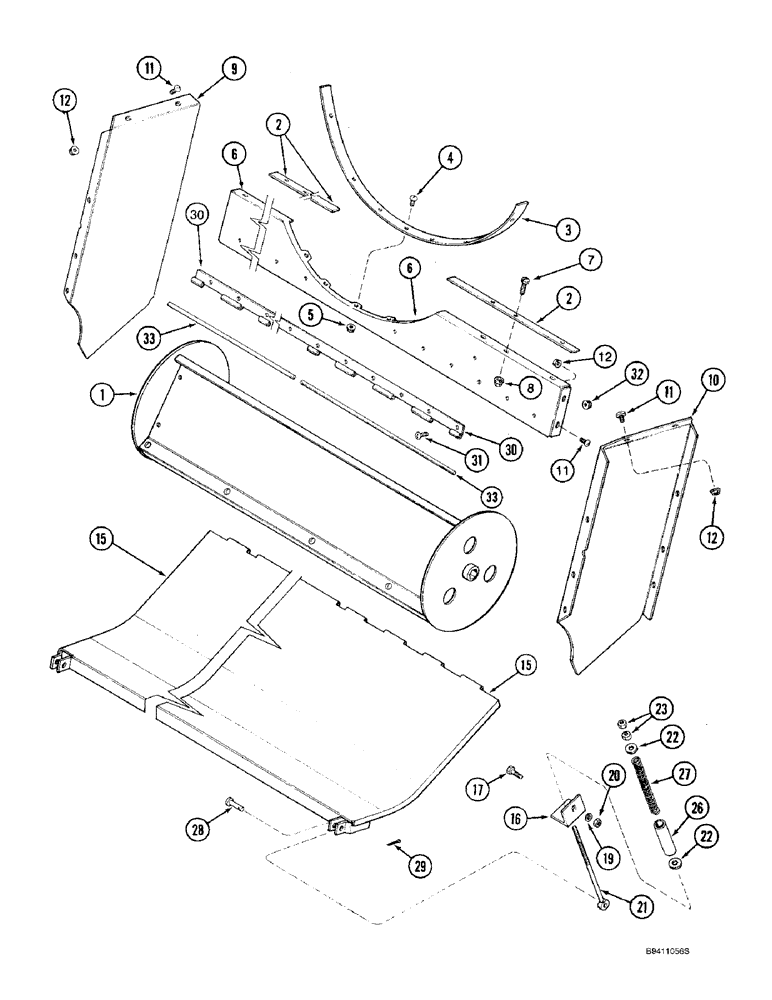

Схема запчастей Case IH 2188 - (9C-06) - DISCHARGE BEATER PAN, RICE COMBINE, SPRING LOADED (15) - BEATER & CLEANING FANS
32
22
11
26
30
6
30
16
11
17
21
2
29
12
33
23
11
4
3
7
28
31
15
33
15
20
1
9
10
8
12
27
2
5
6
22
12
19

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BEATER - discharge, see Figure 9C-2

1шт.

2

182895C1

FILLER

BAR - bulkhead filler

2шт.

3

182950C1

SUPPORT

- housing filler, rear

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

182931C1

SUPPORT

- lower cage, rear

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

9

182948C2

DEFLECTOR

- discharge, left-hand

1шт.

10

182949C2

DEFLECTOR

- discharge, right-hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

14шт.

12

231-5146

FLANGE NUT,3/8"-16

14шт.

15

182926C2

BOTTOM

PAN - beater

1шт.

16

182896C2

SUPPORT

- spring

2шт.

17

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

19

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

2шт.

20

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

21

182892C2

BOLT,1/2" - 13 x 330mm

EYEBOLT - beater bottom

2шт.

22

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

26

182981C1

SPACER

SLEEVE - spring

2шт.

27

391745R1

SPRING

- beater bottom

2шт.

28

439-1828

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch, grade 2

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

182893C1

HINGE

- bottom

2шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

14шт.

32

231-5146

FLANGE NUT,3/8"-16

14шт.

33

182980C1

ROD,11.11mm OD x 1556mm L

- bottom hinge

1шт.
