Запчасти Case IH 2188 (2-22) - WATER PUMP, FAN AND BELT, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE

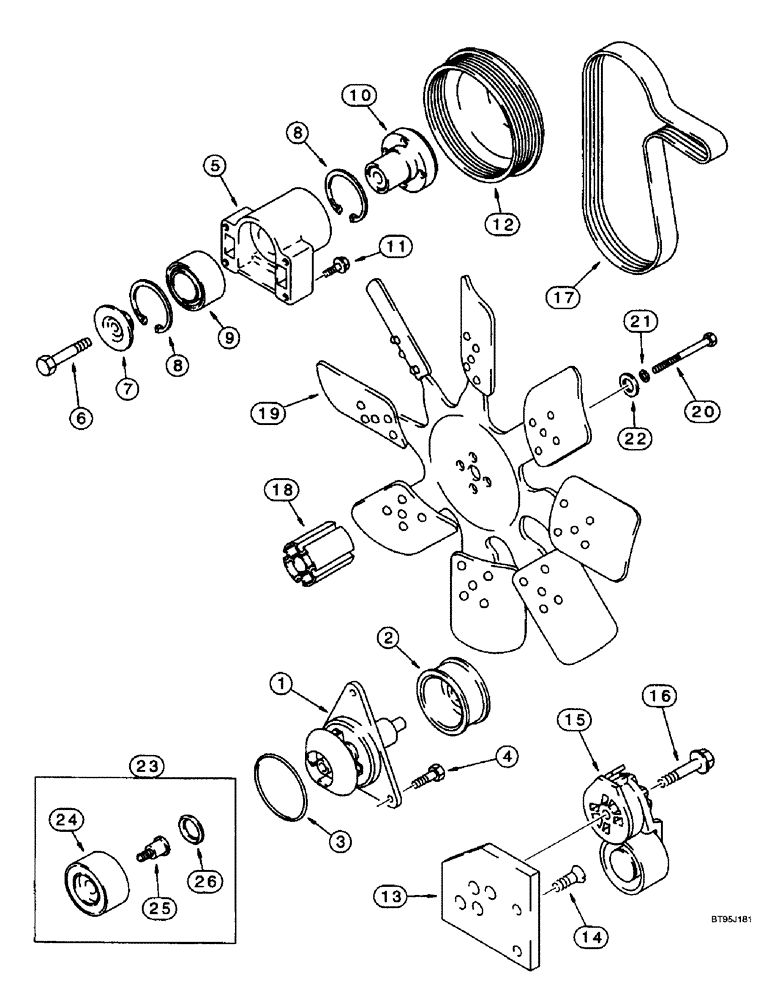

Схема запчастей Case IH 2188 - (2-22) - WATER PUMP, FAN AND BELT, 6TA-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0191483 (01) - ENGINE
10
23
16
9
6
5
14
18
24
11
21
19
8
2
7
22
12
4
15
1
13
17
25
3
8
20
26

Артикул

Название

Примечание

Количество

A77704

PUMP, WATER

KIT - water pump, Inlcudes: Ref. 1 - 4

1шт.

J800976R

REMAN-WATER PUMP

2188 6TA-830 ENGINE PRIOR TO COMBINE P.I.N. JJC0191483 (1/95-12/97), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water, new, order kit A77704

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump, order kit A77704

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J929458

SUPPORT

ASSEMBLY - fan (Replaces support assembly J910738), Inlcudes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

- fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

10

J911924

HUB

- fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm, fan support to cylinder head

4шт.

12

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio

1шт.

13

J925211

BRACKET

- mounting, tensioner

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

2шт.

15

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

16

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9, belt tensioner to mounting bracket

1шт.

17

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan Drivee 3.56 mm W x 1549.90 mm L, 8 Ribs

1шт.

18

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long

1шт.

19

117036A1

FAN

- engine, puller

1шт.

20

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm (Replaces 814-10130)

4шт.

21

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

4шт.

22

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

- flat, 13/32 x 1-1/4 x 15/64 inch, hardened

4шт.

23

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, Ref. 15, Inlcudes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner, order kit A77817

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - pulley, order kit A77817

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - bolt, order kit A77817

1шт.

Выбрано товаров: 29
