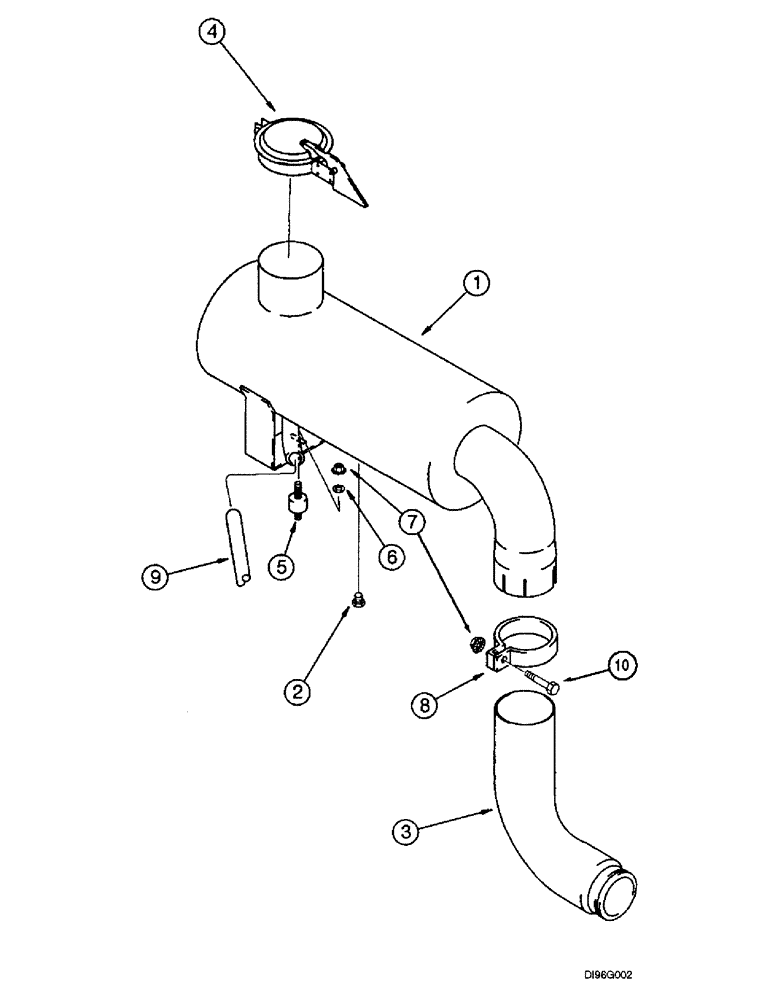

Запчасти Case IH 2188 (2-21A) - SPARK ARRESTER MUFFLER, IF USED (01) - ENGINE

1

181590A1

MUFFLER

- spark arrester, if used

1шт.

1

252996A1

MUFFLER

- spark arrester, allows additional suction for the precleaner, if used

1шт.

2

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

3

182503A1

EXHAUST SYSTEM PIPE,114.3 mm OD

TUBE - exhaust

1шт.

4

182770A1

CAP

- exhaust pipe

1шт.

5

1979761C1

SPACER

- 3/8 ID x 1 inch

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

650986C1

CLAMP,69.85mm - 82.55mm

- exhaust pipe elbow

1шт.

9

181324A2

HOSE,31.75mm ID x 1200mm L, SAE 20R2, Class D1 per SAE J20

- Exhaust Aspirator, Replaces 39-3/8 inch (1000 mm) 181324A1 hose 31.75 mm ID x 1200.00 mm, SAE 20R2 Class D1, SAE J20

1шт.

10

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.
