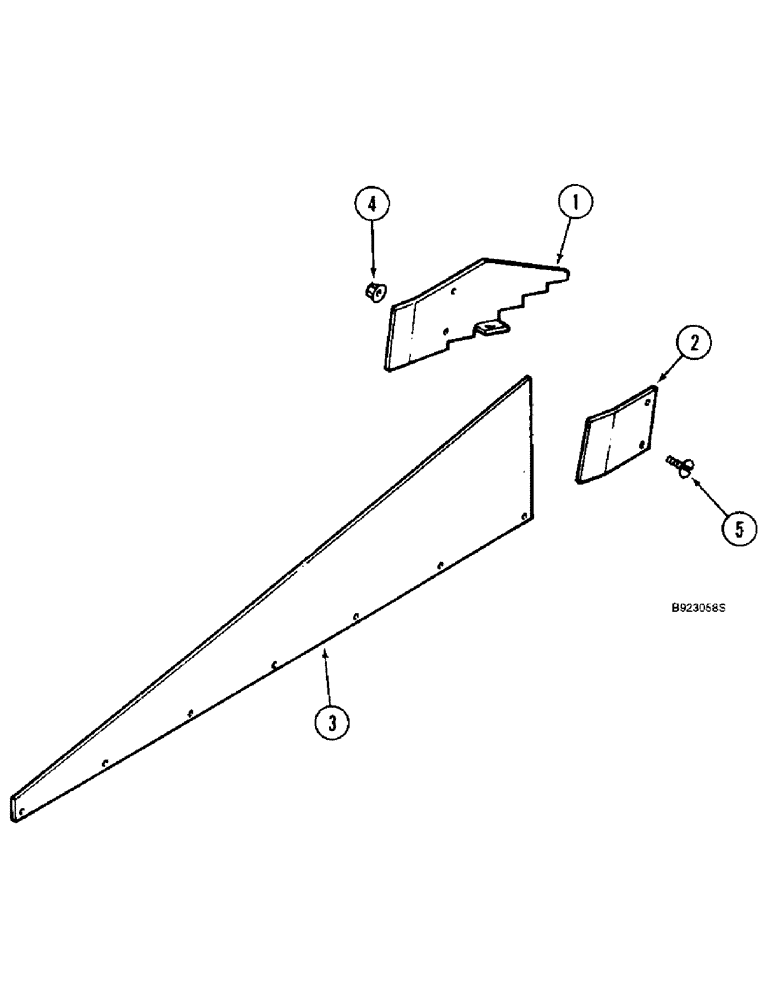

Запчасти Case IH 2188 (9B-44) - GRAIN PAN SIDE HILL DIVIDERS (14) - ROTOR, CONCANVES & SIEVE

180771C91

KIT

- grain pan dividers, Includes: Ref. 1 - 5

5шт.

1

185115C1

DIVIDER

- chaffer pan, front

1шт.

2

185116C1

RETAINER

- chaffer divider

1шт.

3

185114C1

DIVIDER

- chaffer sieve

1шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

11шт.

5

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

11шт.
