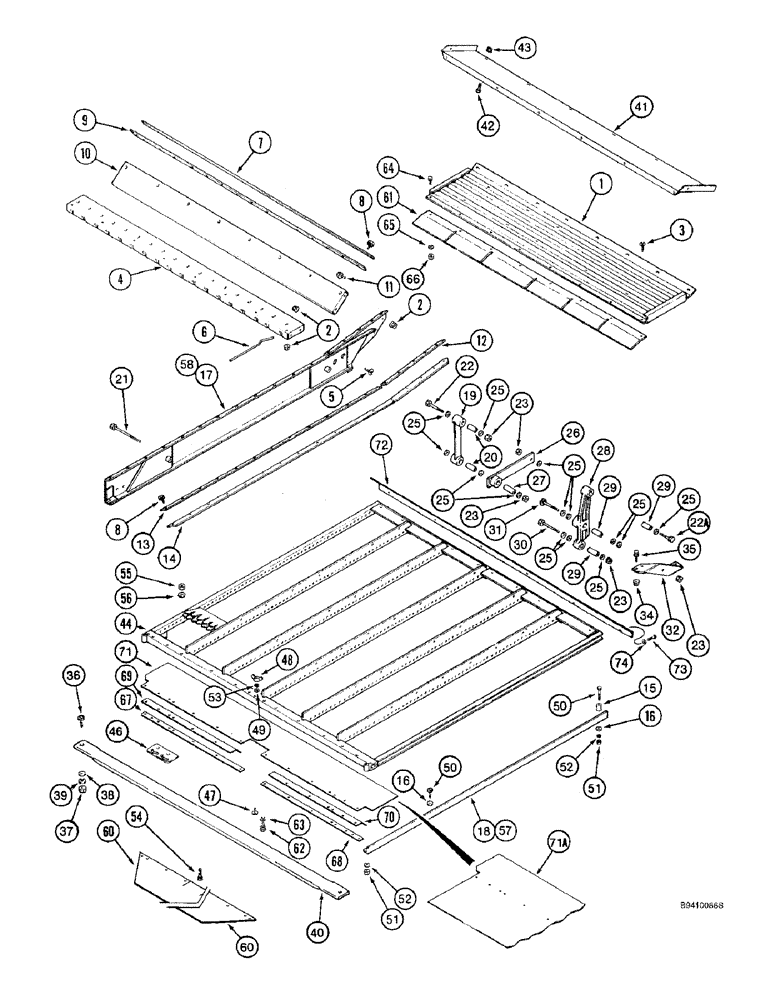

Запчасти Case IH 2188 (9B-40) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192057C1

GRAIN PAN

PAN - grain

1шт.

GRAIN PAN - 1312938C1 HAS ADDITIONAL HOLES.

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

24шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

20шт.

4

1312969C1

SUPPORT

- chaffer pan

1шт.

5

360-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex flange, 5/16 NC x 3/4 inch, grade 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short

27шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

- auger bed, long

27шт.

7

192050C2

BAR

- front chaffer frame seal

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

1шт.

9

192049C1

SEALING STRIP

- chaffer frame front, sealing

1шт.

10

192045C1

SUPPORT

- chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

12

192052C3

BAR

- chaffer frame seal, short

2шт.

13

1325332C2

BAR

- chaffer frame seal, long

2шт.

14

1325331C1

SEALING STRIP

STRIP - chaffer frame

2шт.

15

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch, front chaffer sieve support

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

2шт.

17

1322452C2

RAIL

- chaffer, left-hand

1шт.

18

1325333C3

SUPPORT

ANGLE - chaffer support, left-hand

1шт.

19

1957455C1

ARM

ASSEMBLY - rear hanger, Includes: Ref. 20

2шт.

20

1330324C1

BUSHING

- front hanger

2шт.

21

426-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

- hex, 5/8 NC x 7 inch, grade 8

2шт.

22

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8

2шт.

22a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

24

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC, not shown

3шт.

25

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

28шт.

25

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

2шт.

26

1330357C1

ARM

ASSEMBLY - shoe, rear, Includes: Ref. 27

2шт.

27

1330324C1

BUSHING

- shoe arm

1шт.

28

1957460C2

LEVER

ASSEMBLY - shoe, Includes: Ref. 29

2шт.

29

1330323C2

BUSHING

- 5/8 x 1-1/2 x 2-57/64 inch, shoe lever

3шт.

30

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, grade 8

2шт.

31

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - carriage, 5/8 NC x 5 inch

2шт.

32

1968827C1

SUPPORT

- shoe lever, left-hand

1шт.

33

1968828C1

SUPPORT

- shoe lever, right-hand, not shown

1шт.

34

231-5146

FLANGE NUT,3/8"-16

4шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

36

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

38

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

1шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

1322458C3

SUPPORT

CHANNEL - rear, cross

1шт.

41

192065C1

SUPPORT

- chaffer front seal

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

14шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

44

138626A1

GRAIN SIEVE

SIEVE - chaffer, 1-5/8 inch closz slat (Replaces sieve 1322673C4)

1шт.

44

138630A1

GRAIN SIEVE

SIEVE - Petersen chaffer (Replaces sieve 1347372C5)

1шт.

44

138628A1

GRAIN SIEVE

SIEVE - chaffer, corn, 1-5/8 inch (Replaces sieve 1322659C4)

1шт.

44

138625A1

GRAIN SIEVE

SIEVE - chaffer, adjustable extended, 1-1/8 inch (Replaces sieve 1322467C4)

1шт.

46

120667A1

PLATE

- chaffer lever, lower

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

2шт.

48

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

49

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

50

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

52

392-21038

LOCK WASHER,3/8"

3/8"

4шт.

53

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

14шт.

55

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

14шт.

56

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

14шт.

57

1325334C3

SUPPORT

ANGLE - chaffer support, right-hand

1шт.

58

1322453C2

RAIL

- chaffer, right-hand

1шт.

60

1302785C2

EXTENSION

- chaffer

1шт.

62

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - hex washer head, special, 3/8 NC x 1-1/4 inch

2шт.

61

1994858C1

COVER

- chaffer finger

1шт.

63

492-11038

LOCK WASHER,3/8"

2шт.

64

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

65

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

66

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

67

1338345C2

RETAINER

- chaffer seal, left-hand

1шт.

68

1338346C1

RETAINER

- chaffer seal, right-hand

1шт.

69

1322698C3

ANGLE

- chaffer seal, left-hand rear

1шт.

70

1322699C3

ANGLE

- chaffer seal, right-hand rear

1шт.

71

1979332C4

SEAL,3.05mm Thk

- chaffer, models with straw spreader

1шт.

71a

124004A2

SEAL

- chaffer, models with straw spreader and chaffer

1шт.

72

120001A1

DEFLECTOR

- sieve

1шт.

73

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

SCREW - self tapping, hex washer head, No. 10 NC x 1/2 inch

6шт.

74

495-81107

WASHER,.281" x 7/8" x .060"

- flat, 9/32 x 7/8 x 3/64 inch

6шт.
