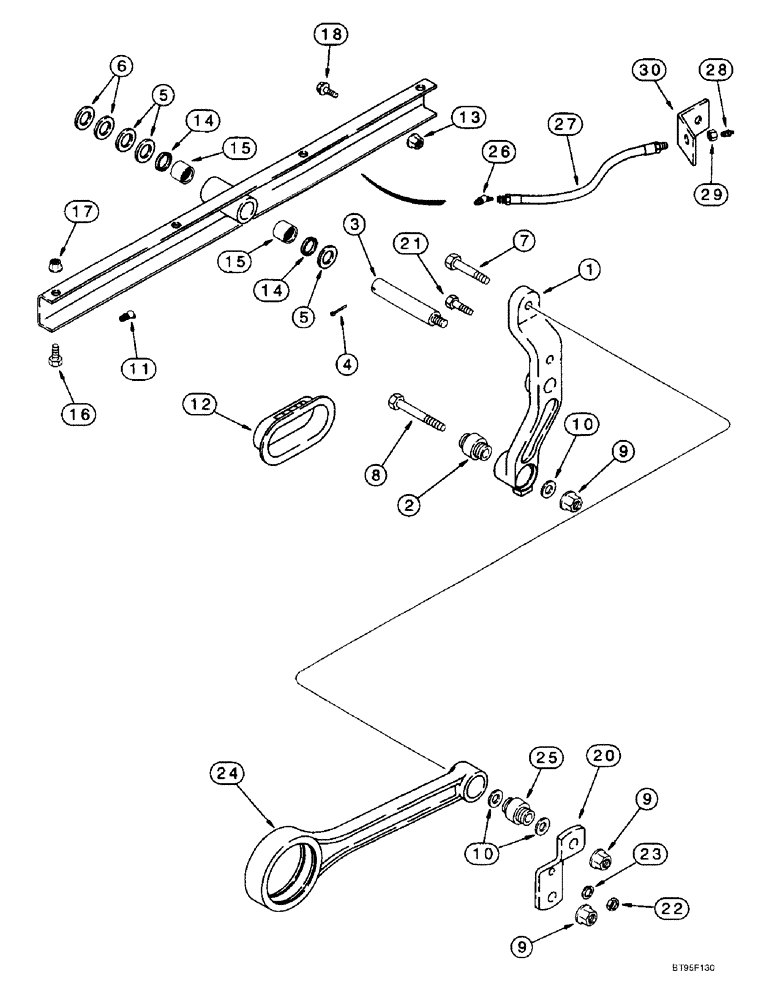

Запчасти Case IH 2188 (9B-36) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE

1

1957467C3

LEVER

ASSEMBLY - chaffer drive hanger, Includes: Ref. 2 and 3

2шт.

2

1330323C2

BUSHING

- 5/8 x 1-1/2 x 2-57/64 inch, chaffer drive hanger

1шт.

3

1979251C1

SHAFT

- hanger arm

1шт.

4

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

5

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

6шт.

6

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

4шт.

7

326-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

2шт.

8

426-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 8

- hex, 5/8 NC x 5-1/4 inch, grade 8

2шт.

9

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

6шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

4шт.

11

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch, LH side

1шт.

12

1302644C2

SEAL

- chaffer rail, front pivot

2шт.

13

186651C92

SUPPORT

ASSEMBLY - front hanger, Includes: Ref. 14 and 15

2шт.

14

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

- support bearing, front hanger

2шт.

15

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle, front hanger support

2шт.

16

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

131198A1

BRACKET

BAR - pitman stabilizer

2шт.

21

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

1989251C1

ARM

PITMAN ASSEMBLY - shaker shaft, Includes: Ref. 25

2шт.

25

1979383C1

BUSHING

- chaffer drive hanger arm

1шт.

26

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch, right-hand front hanger

1шт.

27

937773R91

HOSE,3.56 mm ID x 304.80 mm,

3.56 mm ID x 304.80 mm

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

29

F53473

LOCK NUT,1/8-27 NPSM

- special

1шт.

30

178960C1

BRACKET

SUPPORT - hose

1шт.
