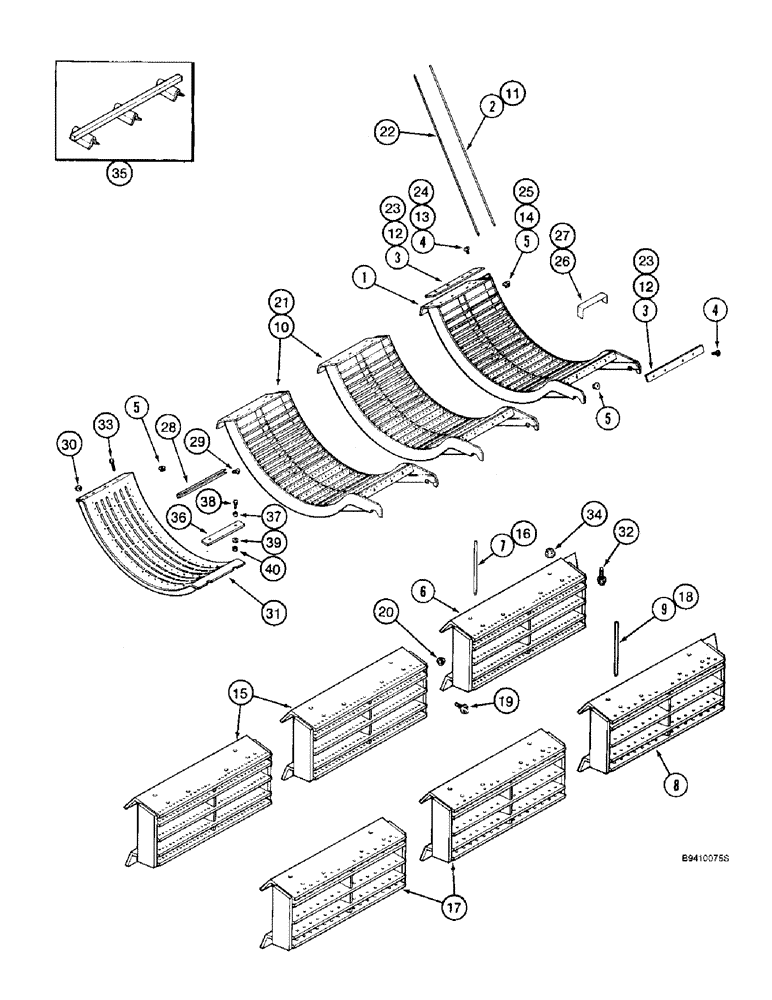

Запчасти Case IH 2188 (9B-26) - CONCAVES, CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE

1

1309204C3

CONCAVE

ASSEMBLY - front, small wire, Includes: Ref. 2 - 5

1шт.

1

193782C6

CONCAVE

ASSEMBLY - front, large wire, Includes: Ref. 2 - 5

1шт.

2

188193C2

ROD

- concave, 3/16 x 36 inch

30шт.

2

191485C2

ROD

- concave, 1/4 x 36 inch

14шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

4

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

BOLT - serrated Phillips truss head, 3/8 NC x 1 inch

8шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

1318557C1

CONCAVE

ASSEMBLY - front extension, small wire, Includes: Ref. 7

1шт.

7

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire

30шт.

8

1318555C1

CONCAVE

ASSEMBLY - front extension, large wire, Includes: Ref. 9

1шт.

9

1318562C1

PIN

- large wire

14шт.

10

193783C5

CONCAVE

ASSEMBLY - large wire, Includes: Ref. 11 - 14

2шт.

11

191485C2

ROD

- concave, 1/4 x 36 inch

14шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

13

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

8шт.

14

231-5146

FLANGE NUT,3/8"-16

8шт.

15

1318558C1

CONCAVE

ASSEMBLY - extension, small wire, Includes: Ref. 16

2шт.

16

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire

30шт.

17

1318556C1

CONCAVE

ASSEMBLY - extension, large wire, Includes: Ref. 18

2шт.

18

1318562C1

PIN

- large wire

14шт.

19

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

12шт.

20

231-5146

FLANGE NUT,3/8"-16

12шт.

21

1309207C3

CONCAVE

ASSEMBLY - small wire, heat treated, Includes: Ref. 22 - 25

2шт.

22

188193C2

ROD

- concave, 3/16 x 36 inch

30шт.

23

193859C1

PLATE

BAR - concave wire retaining

2шт.

24

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

8шт.

25

231-5146

FLANGE NUT,3/8"-16

8шт.

1300673C91

PACKAGE

KIT - concave filler, small wire, set of 6, no longer available, order individual channels, Includes: Ref. 26

1шт.

26

1309425C1

CHANNEL

- concave filler, small wire

6шт.

1300716C91

CHANNEL

KIT - concave filler, large wire, set of 6, no longer available, order individual channels, Includes: Ref. 27

1шт.

27

1309424C1

CHANNEL

- concave filler, large wire

6шт.

28

191536C1

CHANNEL

- grate adjusting, corn, used with slotted grate

1шт.

29

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

31

191535C2

GRATE

- slotted, grain

3шт.

31

1302563C1

CONCAVE

- keystock, corn and rice

3шт.

31

1319405C1

GRATE

- smooth

1шт.

32

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

1шт.

33

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

- hex serrated flange, 3/8 NC x 1-1/4 inch, grade 8

1шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

1324046C3

BAR

- concave, interrupter, small wire

1шт.

36

186784C2

BAR

- grate hanger

3шт.

37

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

38

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

39

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

6шт.

40

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.
