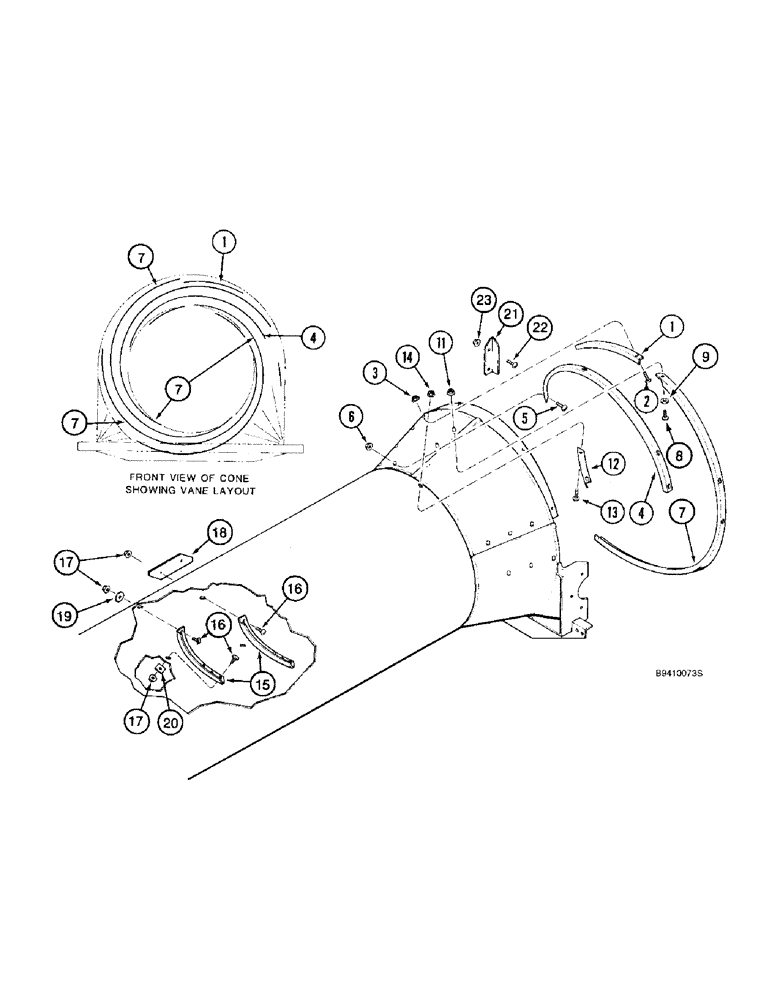

Запчасти Case IH 2188 (9B-24) - VANE (14) - ROTOR, CONCANVES & SIEVE

1

193395C1

BLADE

VANE - cone extension

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

4

186777C4

BLADE

VANE - cone, short

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", Four used on rice models, five used on corn and grain models

4-5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, four used on rice models, five used on corn and grain models

4-5шт.

7

188192C3

STIFFENER

VANE - cone, front

4шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

23шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

9

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

24шт.

11

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

12

193383C1

SUPPORT

VANE - extension transport

3шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

14

231-5146

FLANGE NUT,3/8"-16

3шт.

15

186075C2

SUPPORT TUBE

VANE - transport

13шт.

16

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

- flat raised head, special

39шт.

17

231-5146

FLANGE NUT,3/8"-16

39шт.

18

1318581C1

PLATE

- vane

6шт.

19

55805C1

WASHER,11.13mm ID x 63.5mm OD x 4.55mm Thk

- flat, special, 13/32 x 2-1/2 x 5/32 inch

10шт.

20

570052R1

SQ HOLE WASHER,11mm ID x 38mm OD x 4.8mm Thk

- square, 13/32 x 1-1/2 x 3/16 inch

2шт.

21

186778C1

BLADE

VANE - cone extension

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
