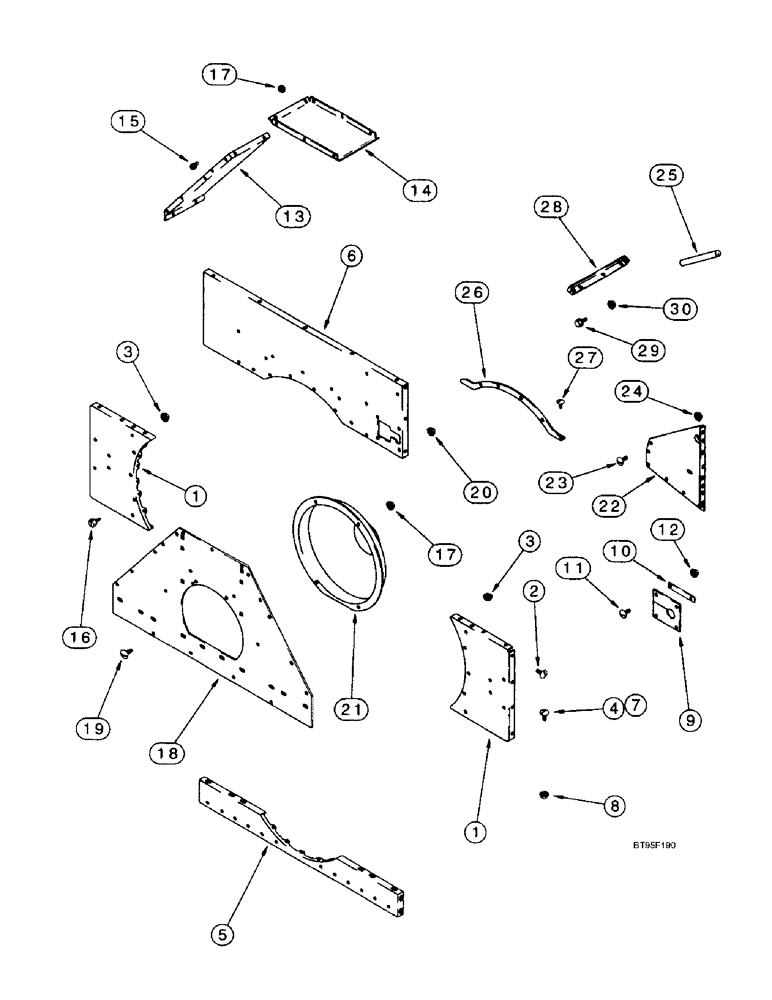

Запчасти Case IH 2188 (9B-22) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE

1

191269C4

SUPPORT

- rotor cage, rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

3

231-5146

FLANGE NUT,3/8"-16

40шт.

4

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

8шт.

5

182931C1

SUPPORT

- lower cage, rear

1шт.

6

176201A1

SHEET

SUPPORT - rear upper rotor

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

11шт.

8

231-5146

FLANGE NUT,3/8"-16

11шт.

9

191191C2

GASKET,6.35mm Thk

SEAL - dust, drive line

1шт.

10

191192C1

BAR

- dust seal

2шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

13

193393C1

COVER

- discharge side

2шт.

14

193170C1

COVER

- discharge top

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

7шт.

16

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

3шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

18

138003A1

SHEET

PLATE - discharge back

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

21

182550C2

HOUSING

RETAINER - rotor gear housing

1шт.

22

191398C2

SHEET

SUPPORT - gear housing inner

1шт.

23

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

25

191498C1

SEALING STRIP

SEAL - 20-13/16 inch (528 mm) long

1шт.

26

1308696C1

SUPPORT

- rear upper cage

1шт.

27

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

4шт.

28

182634C3

SUPPORT

STIFFENER - cage grate

1шт.

29

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

24шт.
