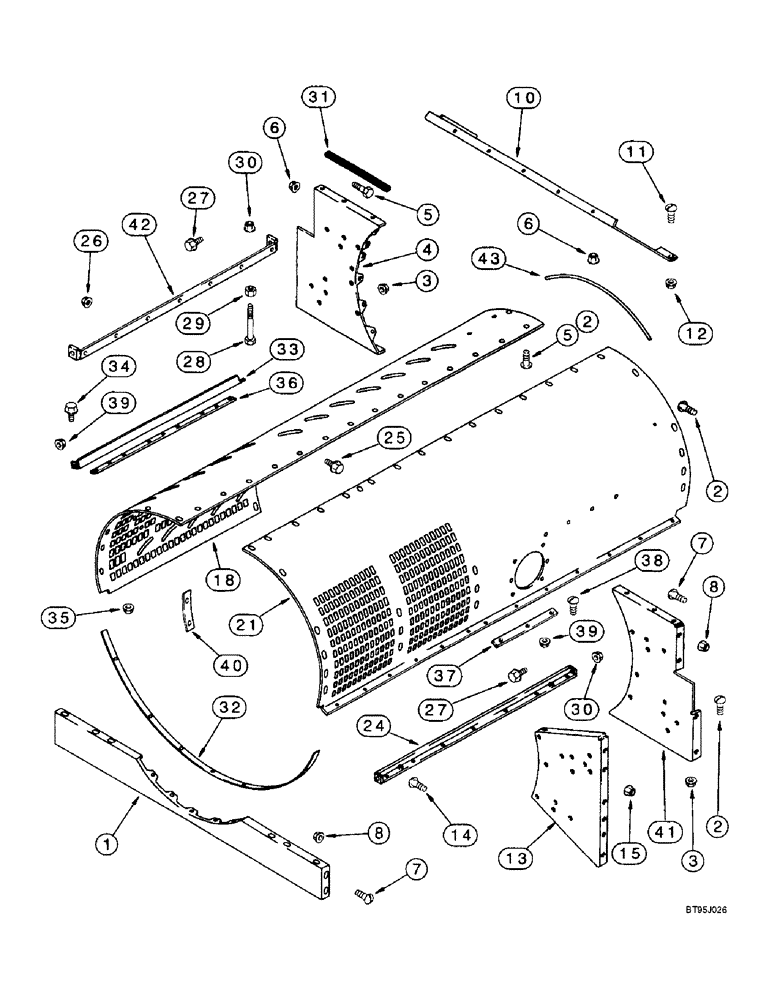

Запчасти Case IH 2188 (9B-20) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

1

192385C1

SUPPORT

- lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

1338053C2

SUPPORT

- rotor cage, left-hand front

1шт.

5

424-816

BOLT,Hex, 1/2" - 13 x 1", Gr 2

- hex, 1/2 NC x 1 inch, grade 2

4шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

10

176200A2

SHEET

SUPPORT - front grain tank

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

9шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

13

1338057C1

SUPPORT

- cage, intermediate, right-hand

2шт.

13

1338042C1

SUPPORT

- cage, intermediate, with adjusting plate, right-hand

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

11шт.

15

231-5146

FLANGE NUT,3/8"-16

11шт.

18

1318729C2

CAGE

SUPPORT - rotor, left-hand

1шт.

21

1321661C1

SUPPORT

- rotor, right-hand

1шт.

24

188333C1

SUPPORT

- cage, right-hand

1шт.

25

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

BOLT - round head, special, 3/8 NC x 1 inch

6шт.

26

231-5146

FLANGE NUT,3/8"-16

14шт.

27

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

28

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch

2шт.

The bolt is also incorrectly illustrated. Both the 3-1/2 and 5-1/2 inch bolts are threaded to the head.

1шт.

5-1/2 inch bolt is 820430C1. It is used on specialty rice rotors

1шт.

29

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

31

NSS

NOT SOLD SEPARAT

SEAL - grain tank support, cut from bulk seal 73220C1

2шт.

32

186750C1

SUPPORT

- cage filler

1шт.

33

185386C1

SUPPORT

- cage, left-hand

1шт.

34

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

15шт.

35

231-5146

FLANGE NUT,3/8"-16

5шт.

36

183323C1

STRAP

BAR - cage grate

1шт.

37

186785C2

REINFORCEMENT

BAR - cage reinforcement, front, right-hand

1шт.

38

186917C1

SCREW

BOLT - hex, special, 3/8 NC x 3/4 inch

5шт.

39

231-5146

FLANGE NUT,3/8"-16

5шт.

40

1318900C1

SUPPORT

- cage, left-hand front

1шт.

41

1338043C2

SUPPORT

- cage, right-hand front

1шт.

42

1309191C1

SUPPORT

- cage, left-hand

1шт.

43

1309111C1

SEAL,19mm W x 725mm L

- rubber, 28-9/16 inch (725 mm) long, front grain tank support

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

1шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

1шт.
