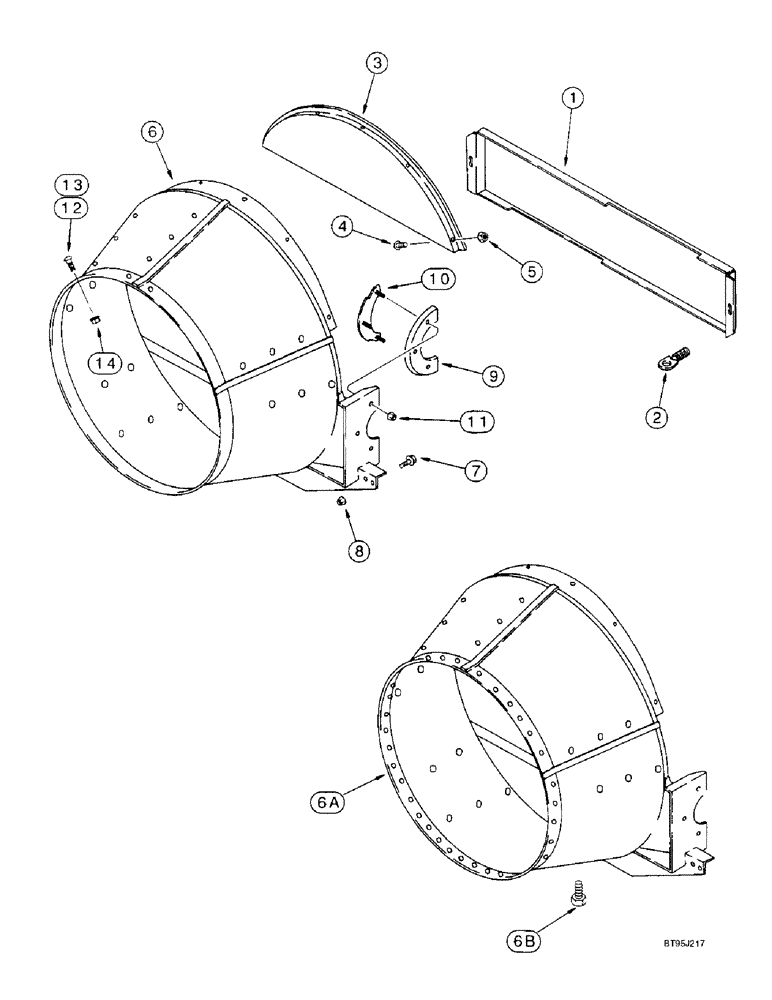

Запчасти Case IH 2188 (9B-18) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

193608C4

SHEET

PANEL - rotor, front

1шт.

2

188029C1

LATCH

- separator, front door

2шт.

3

193607C3

SUPPORT

DOOR - rotor, front, support

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

6

1309384C2

HOUSING ASSY.

CONE - transition, rice models only, no longer available, order cone assembly 198102A2, Ref. 6A

1шт.

6

1317778C2

CONE

- transition, corn and grain models only, if used

1шт.

6a

198102A2

CONE

ASSEMBLY - transition, includes bolt, rice models only, Includes: Ref. 6B

1шт.

6a

194049A2

CONE

ASSEMBLY - transition, includes bolt, corn and grain models only, if used, Includes: Ref. 6B

1шт.

6b

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

- hex, 1/2 NC x 1/2 inch

1шт.

7

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

9

195202C1

SEAL

- feeder

2шт.

10

195409C1

PLATE

- with weld bolt, seal backup

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

12

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - round head, special, 3/8 NC x 1-1/4 inch

2шт.

13

139727A1

SERRATED SCREW,Truss HD, 3/8" x 1"

BOLT - round head, special, 3/8 NC x 1 inch

18шт.

14

231-5146

FLANGE NUT,3/8"-16

20шт.

252277A1

PACKAGE

KIT - seal, rotor front door and cone

1шт.
