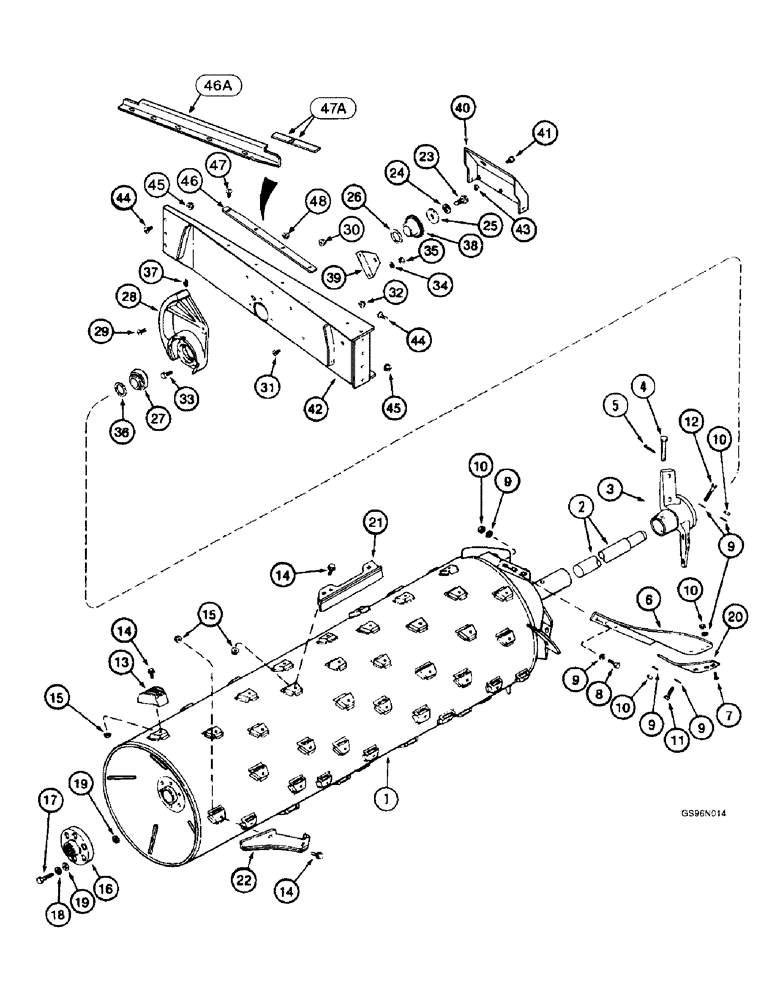

Запчасти Case IH 2188 (9B-14) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1347123C3

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, all crops except rice, Includes: Ref. 1 - 20

1шт.

1347438C1

ROTOR

ASSEMBLY - threshing, includes (74) rasp bars with spikes, Includes: Ref. 1 - 20

1шт.

104348A1

ROTOR

ASSEMBLY - threshing, corn and soybean, no longer available, order rotor assembly 1347123C3 and change out the rasp bars, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing, order rotor assembly

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

184460C1

IMPELLER

- rotor, 2 arm, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

KIT - impeller blade, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

BLADE - impeller, order kit 1957445C3

2шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch, blade retaining

6шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

10

199528A1

NUT

- hex, self-locking, 1/2 inch NC, grade 8

16шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

13

1309175C1

BAR

- rasp, with spike

74шт.

13

1309336C1

BAR

- rasp, without spike

66шт.

13

1968743C2

BAR

- rasp, without spike, chrome

1шт.

14

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

1шт.

15

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

1шт.

16

1345307C1

COUPLING

- rotor drive

1шт.

17

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

18

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

6шт.

19

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

6шт.

20

1309186C3

SUPPORT

- wear, chrome

1шт.

21

1968969C3

BAR

- separator, chrome, all crops except rice

4шт.

21

1318976C2

BAR,Straight Seperator

- separator

8шт.

22

1327676C1

BAR

ANGLE - kicker

2шт.

22

1968968C2

BAR

ANGLE - kicker

2шт.

23

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

24

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

25

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

140500A1

PACKAGE

KIT - rotor drive hub update, also includes Ref. on 9B-16

1шт.

26

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

27

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

28

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

29

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

35

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

36

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - flat, special, front bearing housing

1шт.

37

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

38

1979965C1

ROTOR

- multi-position tachometer

1шт.

39

1301239C1

BRACKET

- rotor tachometer

1шт.

40

182845C4

SHIELD

- sensor, RPM

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

42

193384C8

SUPPORT

- front bearing, if used

1шт.

43

131-872

SPRING NUT,Ret, 3/8"-16

- hex, 3/8 inch NC

3шт.

44

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

8шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

46

1308967C1

BAR

- front door hold down, if used

1шт.

46a

231848A1

RETAINER

- rotor front, if used

1шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch, four used with bar 1308967C1, Ref. 46; five used with retainer 231848A1, Ref. 46A

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, four used with bar 1308967C1, Ref. 46; five used with retainer 231848A1, Ref. 46A

1шт.

49

221189A1

SPACER

PLATE - rotor load ring, drive hub

4шт.

Ref. 49 - For correct illustration of Ref. 49 see 2166 parts catalog.

1шт.

1345453C1

RUBBER INSULATOR

INSULATOR - rotor drive coupling, not used, not shown

6шт.

140500A1

PACKAGE

KIT - rotor drive hub update, also Includes: Ref. on Figure 9B-14

1шт.
