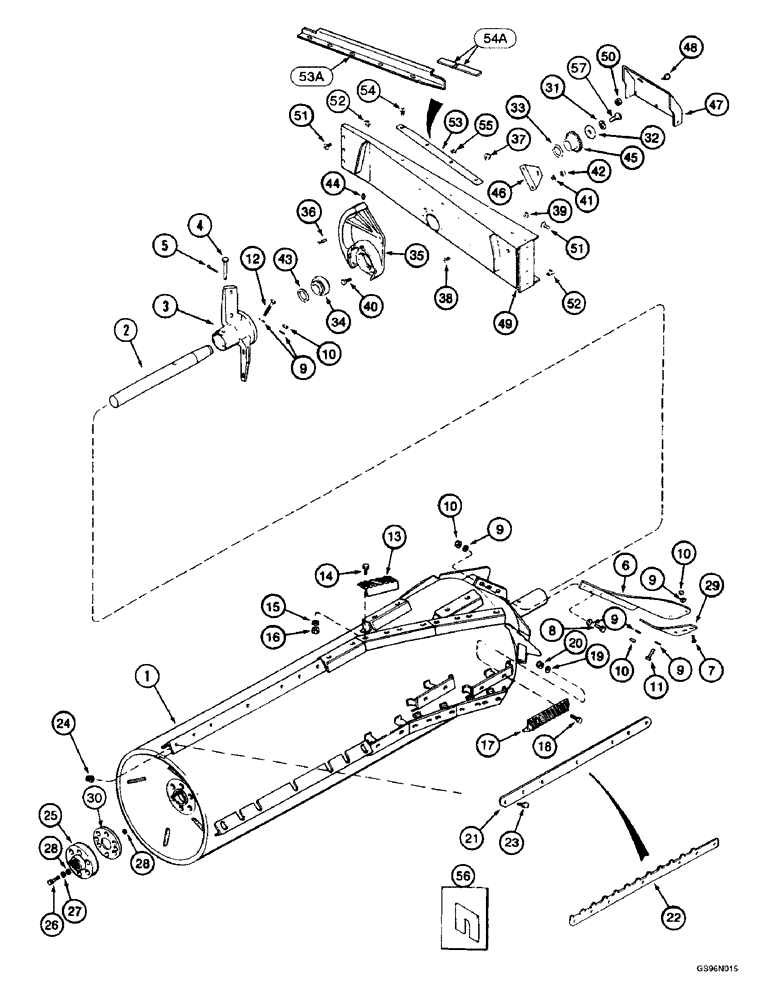

Запчасти Case IH 2188 (9B-10) - ROTOR, GRAIN AND CORN (14) - ROTOR, CONCANVES & SIEVE

184464C2

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, straight rear bar, Includes: Ref. 1 - 30

1шт.

184467C2

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, rear bar with teeth, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing, order rotor assembly

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

184460C1

IMPELLER

- rotor, 2 arm, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

KIT - impeller blade, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

BLADE - impeller, order kit 1957445C3

2шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch, blade retaining

6шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

10

199528A1

NUT

- hex, self-locking, 1/2 inch NC, grade 8

16шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

13

1308830C2

RASP BAR

BAR - helical, rasp, 120 degree

16шт.

13

1324581C3

RASP BAR

BAR - helical, rasp, 120 degree, chrome

16шт.

This is not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

32шт.

15

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

32шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

32шт.

17

1308668C1

RASP BAR

BAR - straight, rasp, four used on some production rotors

12шт.

17

1324582C2

RASP BAR

BAR - straight, rasp, chrome

12шт.

This is not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

19

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

24шт.

20

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

24шт.

21

1303038C2

BAR

- rotor, rear straight, used with rotor assembly 184464C2

4шт.

21

1324580C2

BAR

- rotor, rear straight, chrome

4шт.

This is not part of 184464C2 or 184467C2 rotor assemblies and must be purchased separately.

1шт.

22

1302103C3

BAR

- rotor, with teeth, used with rotor assembly 184467C2

4шт.

23

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

28шт.

24

231-5146

FLANGE NUT,3/8"-16

28шт.

25

1345307C1

COUPLING

- rotor drive

1шт.

Part of P/N 1345453C1 Insulator

1шт.

26

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

Part of P/N 140500A1 Kit

1шт.

27

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

6шт.

Part of P/N 140500A1 Kit

1шт.

28

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

6шт.

Part of P/N 140500A1 Kit

1шт.

29

1309186C3

SUPPORT

- wear, chrome

2шт.

30

221189A1

SPACER

PLATE - rotor load ring, rear drive, for correct illustration see 2166 parts catalog

1шт.

Part of P/N 140500A1 Kit

1шт.

31

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

32

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

1345453C1

RUBBER INSULATOR

INSULATOR - rotor drive coupling, not used, not shown

6шт.

Part of P/N 140500A1 Kit

1шт.

This is a bushing and is part of 1345307C1. It is available as a service part.

1шт.

140500A1

PACKAGE

KIT - rotor drive hub update, includes Refs. 26-28 and 30.

1шт.

33

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

34

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

35

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

36

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

40

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

42

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

43

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - flat, special

1шт.

44

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

45

1979965C1

ROTOR

- multi-position tachometer

1шт.

46

1301239C1

BRACKET

- rotor tachometer

1шт.

47

182845C4

SHIELD

- sensor, RPM

1шт.

48

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

49

193384C8

SUPPORT

- front bearing

1шт.

50

131-872

SPRING NUT,Ret, 3/8"-16

- hex, 3/8 inch NC

3шт.

51

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

8шт.

52

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

53

1308967C1

BAR

- front door hold down, if used

1шт.

53a

231848A1

RETAINER

- rotor front, if used

1шт.

54

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch, four used with bar 1308967C1, Ref. 53; five used with retainer 231848A1, Ref. 53A

1шт.

54a

231849A2

DOOR SEAL,995mm L

SEAL - rotor, adhesive-backed, used with retainer 231848A1, Ref. 53A

1шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, four used with bar 1308967C1, Ref. 53; five used with retainer 231848A1, Ref. 53A

1шт.

1324208C1

SHIM KIT

KIT - shim, rotor rasp, Includes: Ref. 56 and 57

1шт.

56

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch thick

28шт.

56

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch thick

28шт.

56

NSS

NOT SOLD SEPARAT

SHIM - 0.053 inch thick

28шт.

56

NSS

NOT SOLD SEPARAT

SHIM - 0.093 inch thick

28шт.

57

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.
