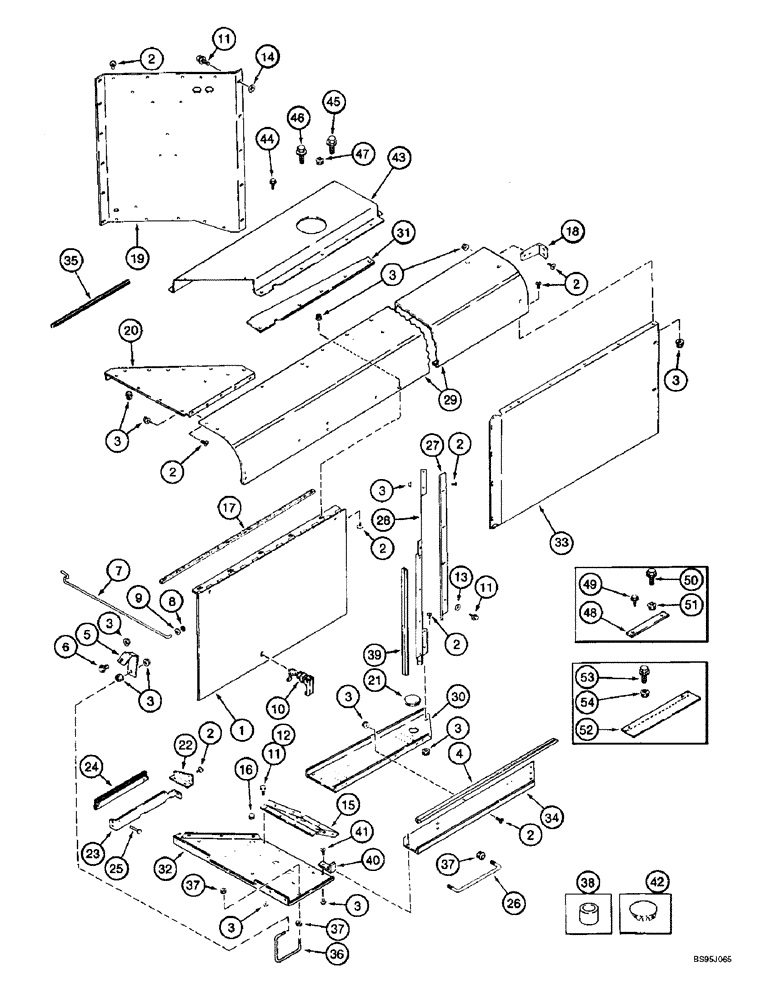

Запчасти Case IH 2188 (2-14) - ROTARY AIR SCREEN CHUTE, COMBINE P.I.N. JJC0191483 AND AFTER (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1979861C2
TRAP DOOR
DOOR - radiator access
1шт.
2
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch
90шт.
3
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
99шт.
4
1977216C3
DOOR SEAL
- flange, 38-7/8 inch (988 mm) long, radiator access door, lower, cut from seal 1977215C1
1шт.
5
1347199C2
GUIDE
- radiator door
1шт.
6
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
1шт.
7
1979919C1
STEM
ROD - door
1шт.
8
131-415
JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"
1шт.
9
95-21044
WASHER,3/8"
- flat, 7/16 x 1 x 5/64 inch
3шт.
10
1302494C2
LATCH
- access door
1шт.
11
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
15шт.
12
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
6шт.
13
495-61041
WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk
5шт.
14
495-81024
WASHER,17/32" x 1 1/4" x .060"
- flat, 17/32 x 1-1/4 x 1/16 inch
5шт.
15
111253A2
SUPPORT
- lower, inner rear
1шт.
Plug for part Number 11253A2 for 1.75 hole try 205-126 or a 432564.
1шт.
16
1970461C1
GROMMET
- rubber, 1-3/8 x 2 x 5/16
2шт.
17
NSS
NOT SOLD SEPARAT
SEAL - door hinge, 37-1/2 inch (953 mm) long, cut from 1338148CX bulk seal below
1шт.
18
1317704C1
SUPPORT
- top shute mounting
1шт.
19
118082A4
SUPPORT
- screen chute, rear
1шт.
20
1541858C2
SUPPORT
- screen, upper
1шт.
21
1302758C1
PLUG
- plastic, 89 mm OD
1шт.
22
1968548C1
SUPPORT
BRACKET - chute, discharge side
1шт.
23
1968546C2
SUPPORT
- discharge chute
1шт.
24
1338012C1
BRUSH, COMMUTATOR
BRUSH - block off
1шт.
25
151-507
RIVET,Pop, 1/8" x .575"
- break mandrel, 1/8 x 1/2 inch
2шт.
26
182995A1
BAR
HANDLE - assist
1шт.
27
220736A1
ANGLE
- deflector
1шт.
28
196420A2
DEFLECTOR
- radiator inlet
1шт.
29
196412A2
GUIDE
CHUTE - air screen
1шт.
30
196414A2
SHEET
SUPPORT - radiator clean out
1шт.
31
196419A4
ANGLE BAR
ANGLE - radiator upper seal
1шт.
32
197091A4
LARGE PLATE
SUPPORT - lower, rear
1шт.
33
196413A3
SHEET
PANEL - side, front
1шт.
34
196417A2
GUIDE
CHUTE - lower rear outlet
1шт.
35
NSS
NOT SOLD SEPARAT
SEAL - 34 inch (865 mm) long, cut from F43996 bulk seal below
2шт.
1338148CX
SEAL
- bulk, foam, adhesive-backed, 600 inch (15240 mm) long
1шт.
F43996
RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk
SEAL - bulk, adhesive-backed, 3/4 (19) x 1 (25) x 36-3/4 inch (932 mm) long
1шт.
36
1979918C1
HANDLE
- assist
1шт.
38
D81147
SPACER
- 1/2 x 3/4 x 1-1/4 inch
1шт.
37
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
4шт.
38
D81147
SPACER
- 1/2 x 3/4 x 1-1/4 inch
1шт.
39
1347460C1
DOOR SEAL,648mm L
- radiator access door, 25-1/8 inch (648 mm) long
2шт.
40
1347430C1
SUPPORT
BRACKET - latch retainer
1шт.
41
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
2шт.
42
205-77
HOLE PLUG BUTTON,11/32"
PLUG - button, 11/32 inch ID
2шт.
43
196421A3
COVER
- upper, radiator
1шт.
45
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
3шт.
44
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
5шт.
45
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
3шт.
46
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
3шт.
47
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
6шт.
48
1302414C1
DRAG LINK
BAR - cover support
1шт.
49
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
1шт.
50
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
1шт.
51
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
1шт.
52
119889A1
ANGLE
- radiator cover, rear
1шт.
53
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
54
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
Выбрано товаров: 59
