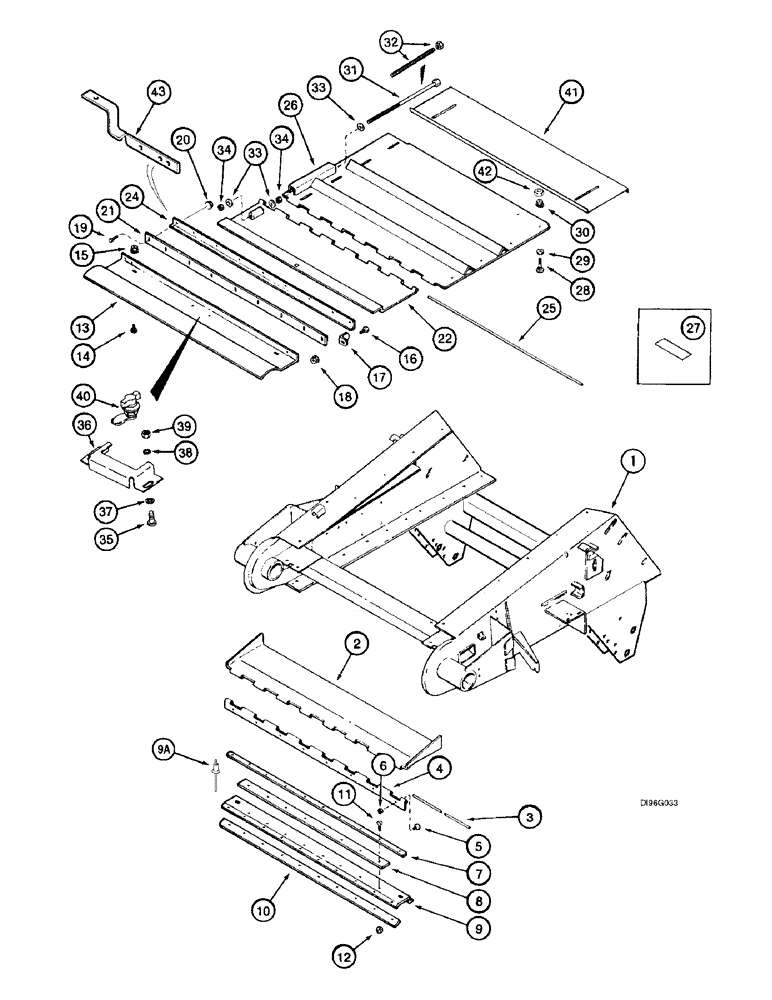

Запчасти Case IH 2188 (9A-36) - FEEDER, COVERS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder, see Figure 9A-30

1шт.

2

242745A1

DOOR

- lower

1шт.

3

175931C1

ROD

- hinge

1шт.

4

193611C2

HINGE

- feed plate

1шт.

6

231-5146

FLANGE NUT,3/8"-16

8шт.

7

197526C1

SEALING STRIP

- seal, lower door

1шт.

8

1319964C1

STRIP

BAR - spacing, support, if used

1шт.

8a

239255A1

SEAL

- feeder bottom, not shown

1шт.

1319960C1 REAR FEEDER BOTTOM SUPPORT

1шт.

151-559 RIVETS

1шт.

1319962C1 REAR FEEDER SEAL

1шт.

197526C1 LOWER DOOR SEAL STRIP

1шт.

IS A NSS. ORDER THESE PARTS

1шт.

9

1319960C1

SUPPORT

- feeder, lower rear, Includes: Ref. 9A

1шт.

9a

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel Pop, 3/16" x .700"

8-10шт.

10

1319962C1

SEAL

- rear

1шт.

11

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- machine, flat Phillips, No. 10 NC x 3/4 inch

8шт.

12

196922C1

LOCK NUT

- hex, self-locking, No. 10

8шт.

13

131022A1

COVER

- feeder top

1шт.

14

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

15

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

2шт.

16

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

17

1322144C1

ANGLE

- door stop

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

20

231-5146

FLANGE NUT,3/8"-16

6шт.

21

634248R1

SEAL

SEAL - rubber

1шт.

22

138250A1

FLAP

DOOR - feeder

1шт.

24

197527C2

ANGLE

- support, feeder top seal

1шт.

25

175907C1

ROD

- hinge

1шт.

26

186356A1

SHEET

COVER - upper, hinged, includes anti-skid pad, 54-1/2 inch feeder, Includes: Ref. 27

1шт.

26

186357A1

SHEET

COVER - upper, hinged, includes anti-skid pad, 60 inch feeder, Includes: Ref. 27

1шт.

27

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID

1шт.

28

415-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 8

BOLT - carriage, 1/2 NC x 1-1/2 inch, grade 8

8-10шт.

29

195-81030

WASHER

- flat, 17/32 x 1-1/2 x 3/16 inch

8-10шт.

30

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

8-10шт.

31

1321395C1

BOLT,3/4" - 10 x 440mm

- adjusting, level, no longer used, order rod 1321504C1, Ref. 32 below

1шт.

32

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

ROD - adjusting, includes nut

1шт.

33

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

34

425-1012

NUT,3/4"-10, G5

3шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

36

130658A1

SUPPORT

- latch

1шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

40

138699A1

LOCK

LATCH - door

1шт.

41

1321639C1

PLATE

COVER - upper front

1шт.

42

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

8-10шт.

43

139045A1

SUPPORT

- feeder hoses

1шт.

252275A1

PACKAGE

KIT - feeder, long wear

1шт.

5

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
