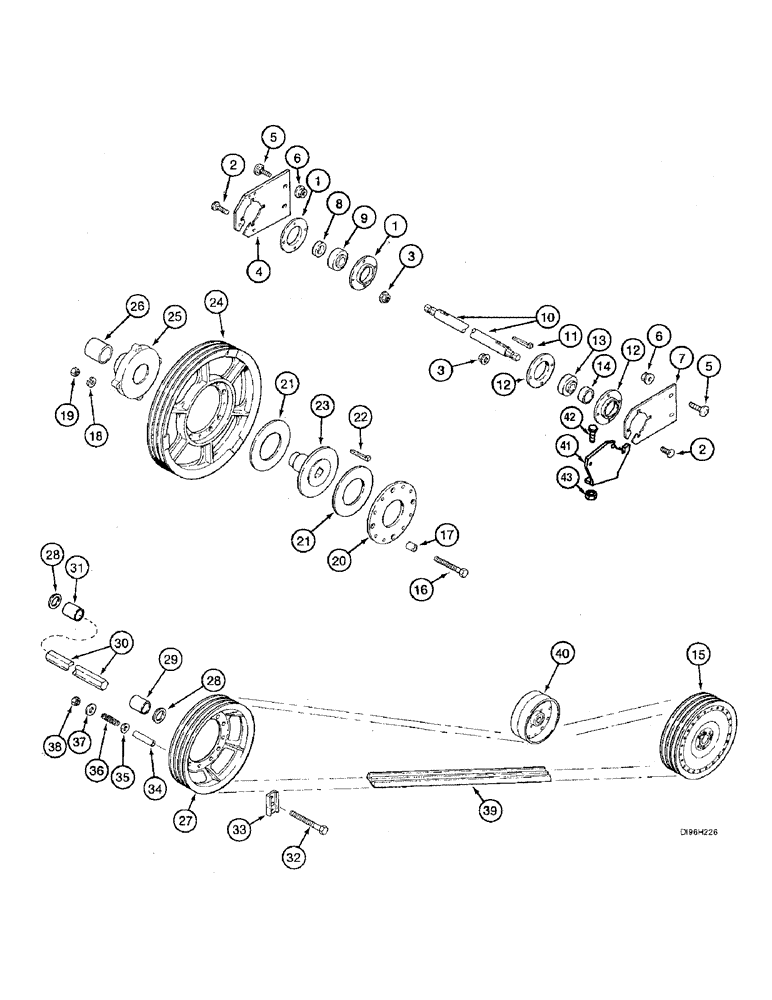

Запчасти Case IH 2188 (9A-24) - FEEDER, JACKSHAFT DRIVE, PRIOR TO COMBINE P.I.N. JJC0193725 (13) - FEEDER

1

663562R1

FLANGE

- bearing, left-hand, if used

2шт.

1

1307583C1

FLANGED BEARING

- bearing, left-hand, if used

2шт.

2

434-828

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

8шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

4

138178A1

SUPPORT

- jackshaft bearing, left-hand, without field tracker

1шт.

4

100291A2

SUPPORT

- jackshaft bearing, left-hand, with field tracker

1шт.

5

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

1321629C2

SUPPORT

- jackshaft bearing, right-hand, without field tracker

1шт.

7

100290A1

SUPPORT

- jackshaft bearing, right-hand, with field tracker

1шт.

8

455112R11

COLLAR

- locking, bearing, left-hand

1шт.

9

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING - ball, left-hand

1шт.

10

1319483C2

SHAFT

- cross

1шт.

11

Q1376

KEY

- square tapered, 3/8 x 2-1/4 inch

1шт.

12

619333R1

FLANGED BEARING

- bearing, right-hand

2шт.

13

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

- ball, right-hand

1шт.

14

664598R11

COLLAR

- lock, bearing, right-hand (Replaces collar 1977006C1)

1шт.

15

1321645C1

PULLEY

- driven, 13-1/2 inch OD, feeder jackshaft

1шт.

16

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

17

1305375C1

SPACER

- drive lug

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

329-106

NUT,3/8"-16, G8

4шт.

20

185955C1

PLATE

- friction

1шт.

21

181579C1

DISC

DISC - friction

2шт.

22

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

Tapered Gib, 3/8" Sq x 4 1/2"

2шт.

23

1305154C2

HUB

- slip clutch

1шт.

24

1305297C1

PULLEY

- driven, 22-9/16 inch OD, see Figure 9A-20

1шт.

25

1305220C91

HUB ASSY.

HUB ASSEMBLY - clutch, Includes: Ref. 26

1шт.

26

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

- hub

1шт.

27

1305288C1

PULLEY

- drive, 16-11/16 inch OD, feeder jackshaft

1шт.

28

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

29

1305393C1

SPACER

- 2-35/64 inch long

1шт.

30

1321440C3

SHAFT

- conveyor, feeder

1шт.

31

162172C1

SPACER

- 1-13/16 x 2-1/4 x 1-15/16 inch

1шт.

32

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

- hex, special, 3/8 x 6 inch, grade 8

8шт.

33

1315316C1

SUPPORT

- spring, models with rock trap

2шт.

34

1305370C3

SPACER

- spring clutch

8шт.

35

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

8шт.

36

1305692C2

SPRING

- slip clutch

8-10шт.

37

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

38

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

8шт.

39

1308489C2

V-BELT,22.33 mm W x 3990.69 mm L

Drive, for 60 inch Feeder 22.33 mm W x 3990.69 mm L

1шт.

39

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Drive, Models with 54-1/2 Inch Feeder 22.33 mm W x 3706.69 mm L

1шт.

40

176579C1

IDLER

- drive tightener, 8 inch OD (Replaces pulley 1319401C1)

1шт.

41

235886A1

SUPPORT

- jackshaft pulley shield

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
