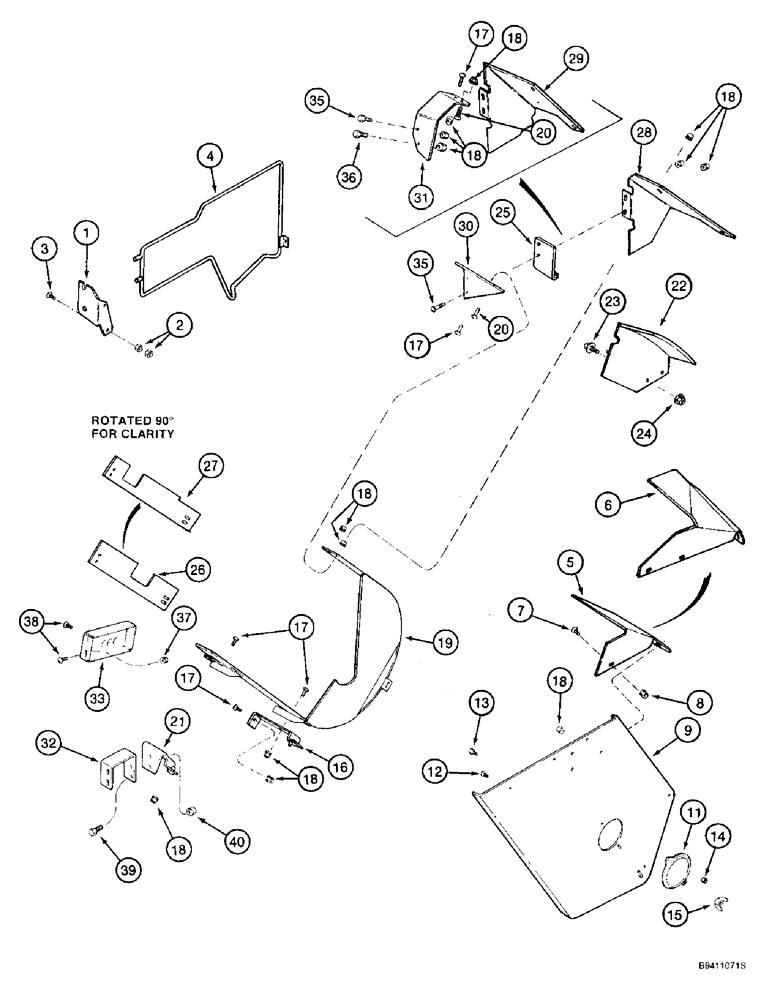

Запчасти Case IH 2188 (9A-22) - FEEDER, FEEDER DRIVE SHIELDS (13) - FEEDER

1

183740A1

SUPPORT

BRACKET - upper shield mounting

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

3

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

4

144102A2

GUARD

SHIELD - feeder drive, upper

1шт.

5

175072A2

SHIELD

- upper, models without rock trap

1шт.

6

175073A2

PROTECTION PLATE

SHIELD - upper, models with rock trap

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1-2шт.

8

231-5146

FLANGE NUT,3/8"-16

1-2шт.

9

194501C6

COVER

SHIELD - belt

1шт.

11

188315C1

DOOR

- access, belt drive cover

1шт.

12

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

1шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

14

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

15

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

16

135602A1

SUPPORT

- lower belt guard

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

19

194499C4

HOUSING

GUARD - belt, models without rock trap

1шт.

19

1315088C4

HOUSING

GUARD - belt, models with rock trap

1шт.

20

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

1шт.

21

188288C1

SUPPORT

- belt guard, rear

1шт.

22

175680A3

SHIELD

- drive pulley

1шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

25

194364C2

HINGE

- pivot

1шт.

26

133952A2

SHIELD

- lower, models without rock trap

1шт.

27

133950A1

SHIELD

- lower, models with rock trap

1шт.

28

131155A3

COVER

- drive belt, upper, models without trap

1шт.

29

131066A3

COVER

- drive belt, upper, models with rock trap

1шт.

30

188323C3

SUPPORT

- belt guide, upper, models without rock trap

1шт.

31

1989332C5

SUPPORT

- belt guide, upper, models with rock trap

1шт.

32

1315084C2

SUPPORT

- shield rear extension, models with rock trap

1шт.

33

1315083C1

SUPPORT

- shield lower extension, models with rock trap

1шт.

35

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

36

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

1шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.
