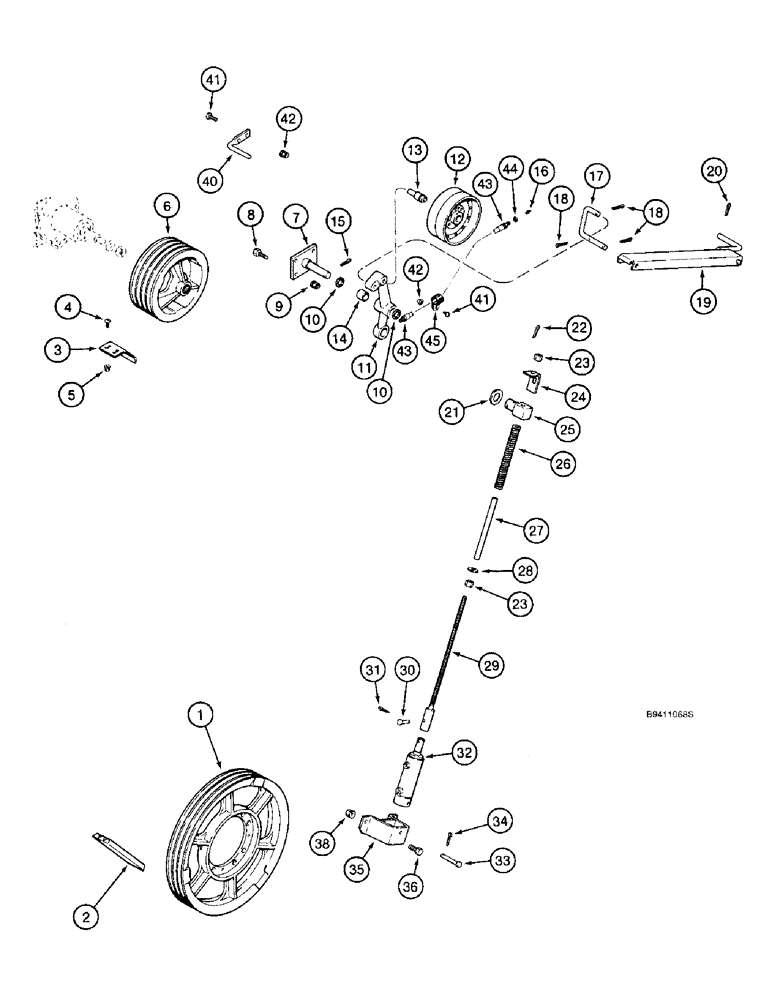

Запчасти Case IH 2188 (9A-20) - FEEDER, FEEDER DRIVE (13) - FEEDER

1

1305297C1

PULLEY

- driven, 22-9/16 inch OD

1шт.

2

194528C1

BELT,0.879" W x 143.37" L, 3 Ribs

V-BELT , Drive, Over center, Models without rock trap 0.879" W x 143.37" L, 3 Ribs

1шт.

2

1315074C1

V-BELT,22.23 mm W x 4029.32 mm L

V-BELT, , Drive, Feeder, with Rock Trap, Drive, Models with Rock Trap 22.23 mm W x 4029.32 mm L

1шт.

3

186513C1

SUPPORT

BRACKET - support, upper, belt guide

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

6

193999C1

PULLEY

- drive, 12 inch OD, feeder

1шт.

7

185414C2

SUPPORT

- pivot

1шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

194494C93

ARM

LEVER ASSEMBLY - idler, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER - idler, order lever assembly 194494C93

1шт.

12

174757C1

PULLEY

- idler, 8 inch OD

1шт.

13

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- lever

1шт.

14

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

- 1 ID x 1-1/4 OD x 1-1/8 inch wide

2шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

17

116032A1

HOOK

ROD - retainer

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

3шт.

19

116029A1

HOLDER

GUIDE - belt retainer, models without rock trap

1шт.

19

116030A1

HOLDER

GUIDE - belt retainer, models with rock trap

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

- flat, 1-17/32 x 2-1/2 x 3/64 inch

1шт.

22

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

24

182922A1

SUPPORT

CLIP - tightener, special

1шт.

25

186890C4

PIVOT

- spring rod

1шт.

26

PO23

SPRING

- tightener rod

1шт.

27

182921A1

SPACER

- spring rod

1шт.

28

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

29

194216C3

ROD

- tightener, feeder drive

1шт.

30

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened 3/8" x 1 9/16"

1шт.

31

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

32

133405C92

CYLINDER

ASSEMBLY - feeder clutch, parts list Figure 8-58

1шт.

32

87337239R

REMAN-HYD CYLINDER

2188 CASE IH AXIAL-FLOW COMBINE (NA), Assembly, feeder clutch (1/95-12/97), Reman for New PN 133405C92

1шт.

32

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

33

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

34

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

35

194369C2

SUPPORT

- cylinder

1шт.

36

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

40

188316C1

ROD

- belt trap

1шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

42

231-5146

FLANGE NUT,3/8"-16

3шт.

43

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

44

F53473

LOCK NUT,1/8-27 NPSM

- special

1шт.

45

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining, Grease hose (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.
