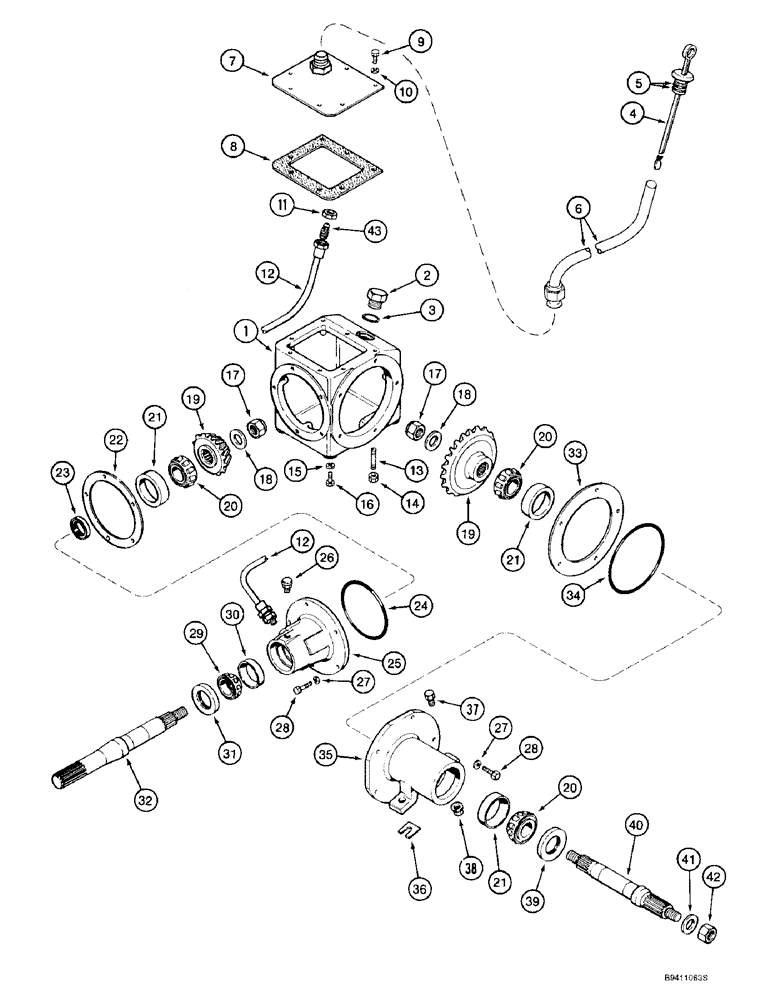

Запчасти Case IH 2188 (9A-16) - FEEDER, FEEDER DRIVE AND FAN GEAR HOUSING (13) - FEEDER

1

191388C1

CASE

HOUSING - gear, also order plug 218-5160 and O-ring 237-6016, Ref. 2 and 3

1шт.

2

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 3 Hex Hd, 1 5/16"-12 ORB

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

122115A2

GAUGE

ASSEMBLY - oil, Includes: Ref. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

6

122113A1

TUBE

- oil gauge

1шт.

7

122111A1

COVER

- gear housing

1шт.

8

191397C2

GASKET

- cover

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

10

492-11038

LOCK WASHER,3/8"

7шт.

11

F53473

LOCK NUT,1/8-27 NPSM

- special

1шт.

12

1339006C1

TUBE,914 mm L

HOSE - grease, 36 inch (914 mm) long, bank lube

1шт.

13

188126

PIPE,Nipple, 3/8" NPT x 2"

- drain

1шт.

14

144164

O-RING

- drain pipe

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

17

195428C1

LOCK NUT

- input and output shaft

2шт.

18

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

2шт.

19

1315597C1

GEAR SET

GEAR - set, drive, 18 and 31 teeth

1шт.

20

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

CONE - tapered roller bearing, 1-3/8 inch ID

3шт.

21

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

CONE - tapered roller bearing, 3" OD

3шт.

195484C2

SHIM KIT

KIT - shim, rear housing, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

23

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

- oil

1шт.

24

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk

1шт.

25

191245C2

HUB

- bell, rear

1шт.

26

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

27

492-11038

LOCK WASHER,3/8"

10шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

10шт.

29

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - tapered roller bearing, 1-3/8 inch ID, input shaft, outer

1шт.

30

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller, Input shaft, Outer

1шт.

31

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

- oil

1шт.

32

191396C1

SHAFT

- input

1шт.

195485C1

SHIM KIT

KIT - shim, right-hand housing, Includes: Ref. 33

1шт.

33

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

2шт.

33

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

2шт.

33

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

34

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

35

191248C1

HUB

- bell, right-hand

1шт.

36

935915R1

SHIM,33.02mm OD x 0.38mm Thk

- .015 inch thick

8шт.

37

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

- oil

1шт.

40

191384C1

SHAFT

- output

1шт.

41

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

42

231-46114

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NF

1шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Lube hose 1/4"-28 NPT x .54" lg

1шт.
