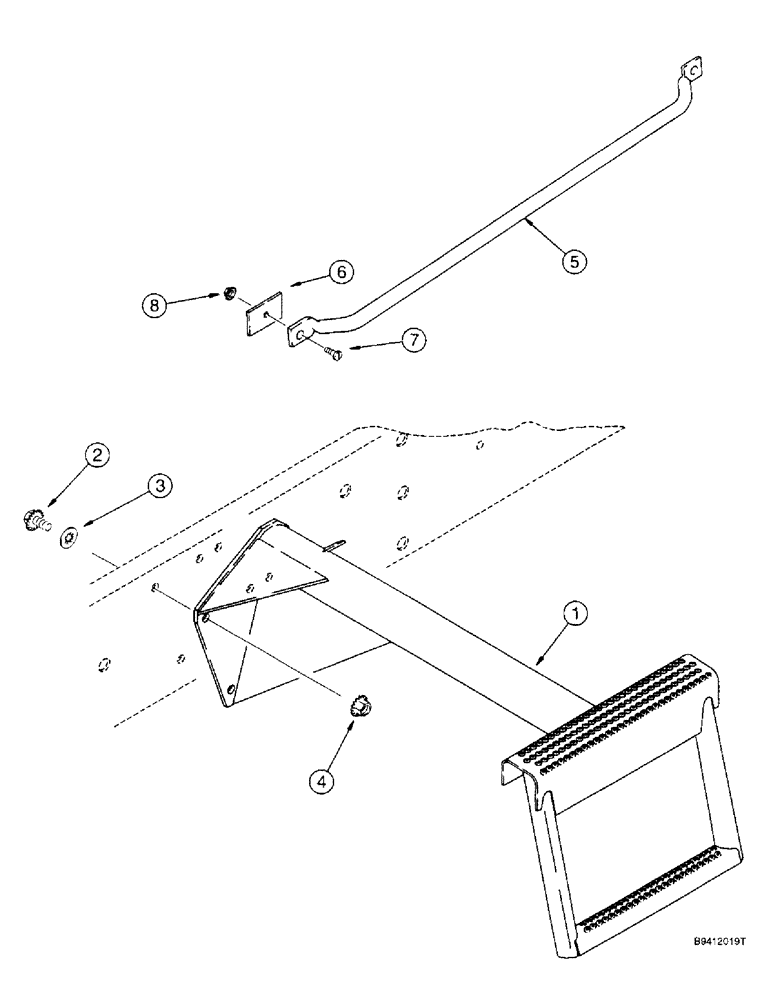

Запчасти Case IH 2188 (9H-24) - RADIATOR ACCESS LADDER (12) - CHASSIS

1

142906A3

STEP

LADDER - radiator access

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

100-1537

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

143775A2

HANDRAIL

- radiator access

1шт.

6

183380A1

PLATE

- radiator access handrail

2шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
