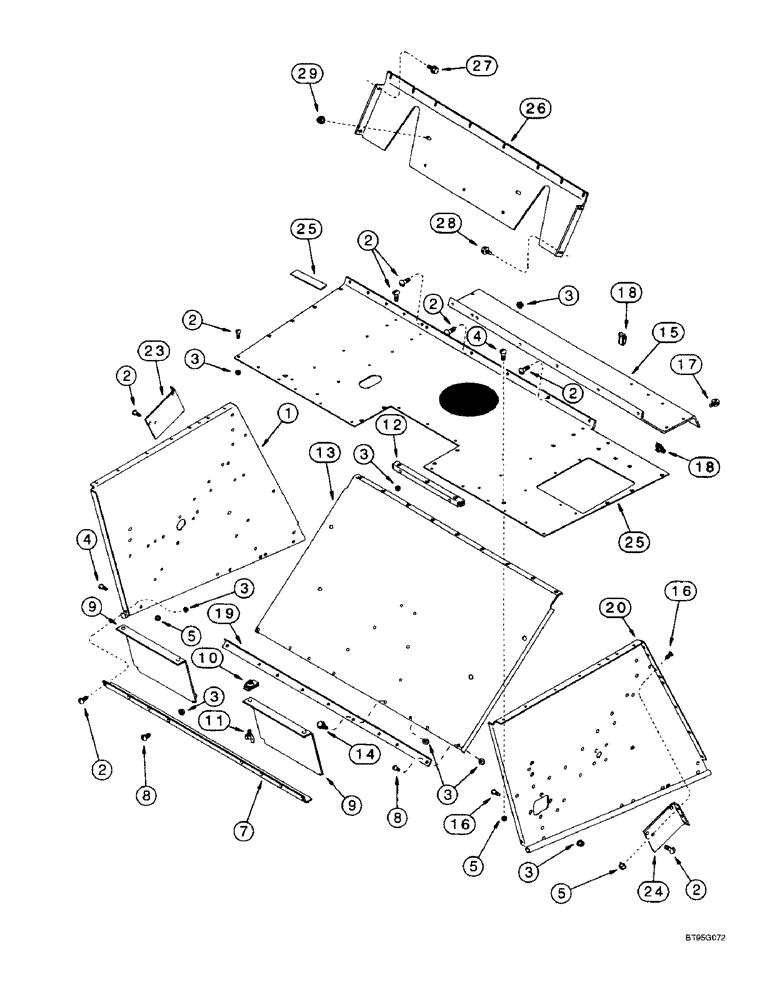

Запчасти Case IH 2188 (9H-10) - SEPARATOR HOOD AND SIDES (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
189800A1
PROTECTION PLATE
SIDE - separator, left-hand, includes decals, see Figures 9H-38 and 9H-40 for decals
1шт.
2
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
1шт.
3
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
1шт.
5
231-5146
FLANGE NUT,3/8"-16
12шт.
7
192304C2
RAIL
ANGLE - rear support
1шт.
9
189796A2
SUPPORT
- hood access, rear, includes decals, see Figures 9H-38 and 9H-40 for decals
2шт.
10
488837C1
SPRING NUT
- speed, 5/16 inch
4шт.
11
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
4шт.
If looking for a thumb screw use p/n 183-123.
1шт.
12
186971C1
ANGLE
- rear deck support
1шт.
13
192306C7
DEFLECTOR
- straw discharge
1шт.
14
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
9шт.
15
1330090C4
SHEET
SUPPORT - engine deck
1шт.
16
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch
6шт.
17
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
4шт.
18
488837C1
SPRING NUT
- speed, 5/16 inch
11шт.
19
194306C1
ANGLE
- deflector stiffener
1шт.
20
195620A1
SHEET
SIDE - separator, right-hand
1шт.
23
185104C1
SUPPORT
- separator hood, left-hand
1шт.
24
185105C1
SUPPORT
- separator hood, right-hand
1шт.
25
1317744C9
SHEET
SUPPORT - rear deck
1шт.
26
195144C5
SHEET
SUPPORT - dust shield
1шт.
27
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
3шт.
28
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
1шт.
29
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
4
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
BOLT - serrated slotted truss head, 3/8 NC x 1 inch
6шт.
Выбрано товаров: 27
