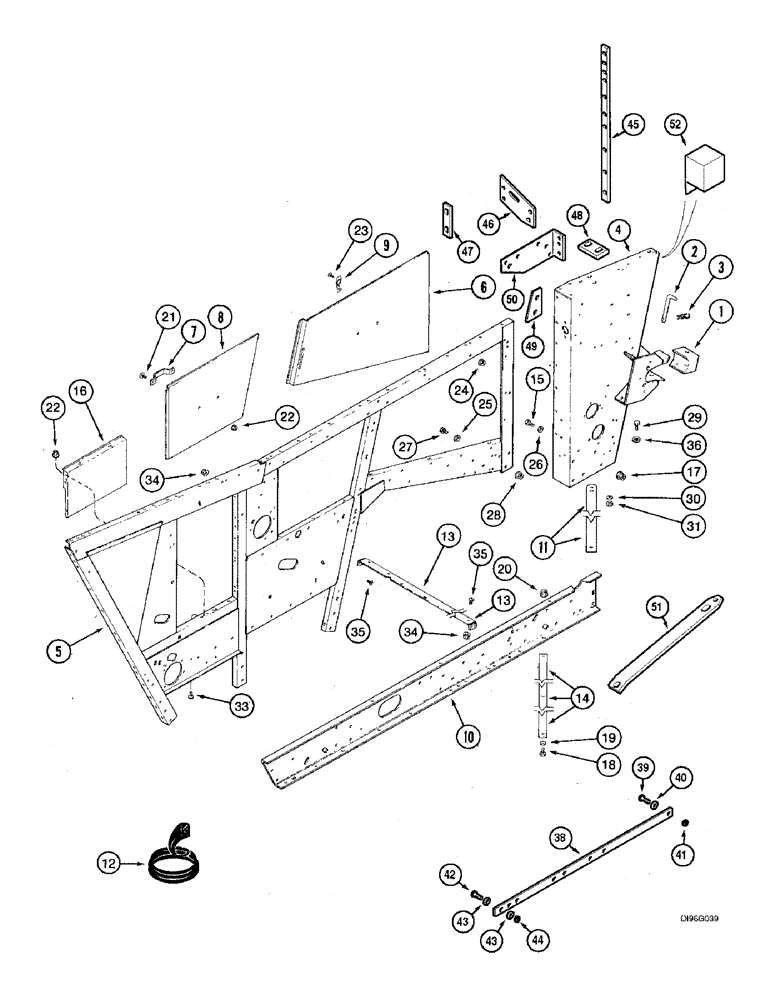

Запчасти Case IH 2188 (9H-06) - LEFT HAND SEPARATOR DOORS, SIDE AND SUPPORTS (12) - CHASSIS

1

1989327C2

RETAINER

BLOCK - feeder pivot

1шт.

2

192533C2

ROD

- feeder pivot block

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

139620A4

SUPPORT

POST - left-hand front, includes decal, see Figure 9H-38 for decal

1шт.

4a

120253C1

CONDUIT

- 8-1/4 inch (210 mm) long, cut from 1262114C1 bulk conduit below, not shown

1шт.

5

1968985C9

SIDE ASSY.

SIDE - separator, left-hand

1шт.

6

182524C91

DOOR

- separator, front left-hand

1шт.

7

160638C1

HANDLE

- door

2шт.

8

193353C1

DOOR

- separator, left-hand

1шт.

9

167800C1

CLIP

- door retaining clip

10шт.

10

1327695C8

SUPPORT

- separator, main, left-hand

1шт.

11

1308946C1

BAR

- front post diagonal, if used

1шт.

12

NSS

NOT SOLD SEPARAT

TRIM - edge, 12-5/16 inch (313 mm) long, cut from 1330108CX bulk trim below

1шт.

13

195317C1

SUPPORT

- engine deck

1шт.

14

186018C1

STRAP

BAR - diagonal support

2шт.

15

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

18шт.

15

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, grade 8

2шт.

16

181085C2

DOOR

- separator

1шт.

17

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

20шт.

18

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

3шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

20

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

3шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

23

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

10шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

2шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

9шт.

27

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

11шт.

28

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

11шт.

29

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

30

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

31

425-1010

NUT,5/8"-11, G5

2шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

34

231-5146

FLANGE NUT,3/8"-16

20шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

20шт.

36

493-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8 inch

2шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

1262114C1

CONDUIT

- bulk, 31 inch (787 mm) long

1шт.

37

188062C1

STRIP

SEAL - 5-1/2 inch (140 mm) long, cut from 1338148CX bulk seal below, for use between separator side doors and auger bed, not shown

4шт.

38

198572A1

STRAP

- separator support, used on rice models

1шт.

39

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

Used on rice models Hex, 3/8"-16 x 2", G8

1шт.

40

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened, Used on rice models

2шт.

41

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8, used on rice models

1шт.

42

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Used on rice models Hex, 1/2"-13 x 2", G8

8шт.

43

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Used on rice models

16шт.

44

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8, used on rice models

8шт.

45

236933A1

PLATE

STRAP - separator side

1шт.

46

238987A1

PLATE

- post support, front left-hand

1шт.

47

239001A1

PLATE

- spacer

1шт.

48

236509A1

SPACER

- plate

1шт.

49

239289A1

SPACER

- separator side, lower right-hand

1шт.

50

236370A2

PLATE

- front post, to left-hand side

1шт.

51

236726A1

PLATE

STRAP - axle, to left-hand post

1шт.

52

237738A2

BOX

- hose, reroute fire prevention, if used

1шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
