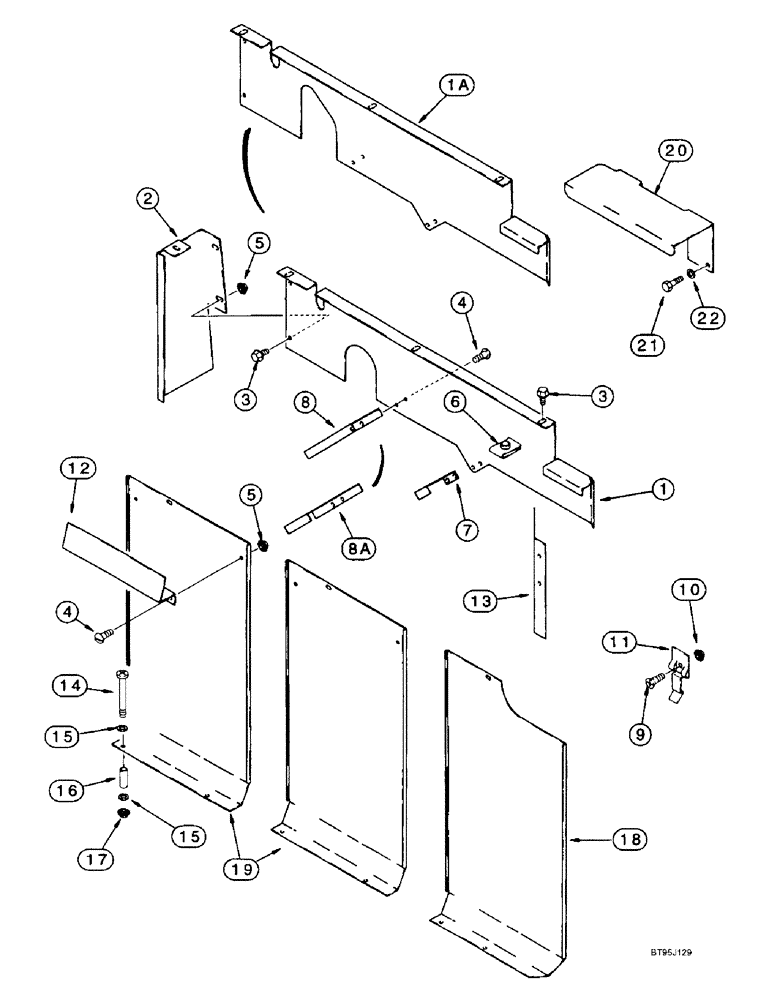

Запчасти Case IH 2188 (9H-05A) - ENGINE DEFLECTORS (12) - CHASSIS

1

187833A1

DEFLECTOR

- main, prior to combine P.I.N. JJC0191483

1шт.

1a

198537A1

DEFLECTOR

- main, combine P.I.N. JJC0191483 and after

1шт.

2

188860A1

DEFLECTOR

- rear vertical

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11шт.

6

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

3шт.

7

188198A1

DEFLECTOR

- right-hand

1шт.

8

188199A1

DEFLECTOR

- center, prior to combine P.I.N. JJC0191483

1шт.

8a

198538A1

DEFLECTOR

- center, combine P.I.N. JJC0191483 and after

1шт.

9

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

6шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

6шт.

11

167800C1

CLIP

- door retaining clip

6шт.

12

187831A1

SUPPORT

BRACKET - left-hand panel

1шт.

13

188554A1

DEFLECTOR

- angled

1шт.

14

440-12540

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

- machine, pan Phillips, 1/4 NC x 2-1/2 inch

6шт.

15

495-81107

WASHER,.281" x 7/8" x .060"

- flat, 9/32 x 7/8 x 3/64 inch

12шт.

16

187830A1

SPACER

- screw

6шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

18

187884A1

GUARD

SHIELD - right-hand

1шт.

19

187885A1

GUARD

SHIELD - left-hand center

2шт.

20

191196A2

GUARD

SHIELD - starter

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
