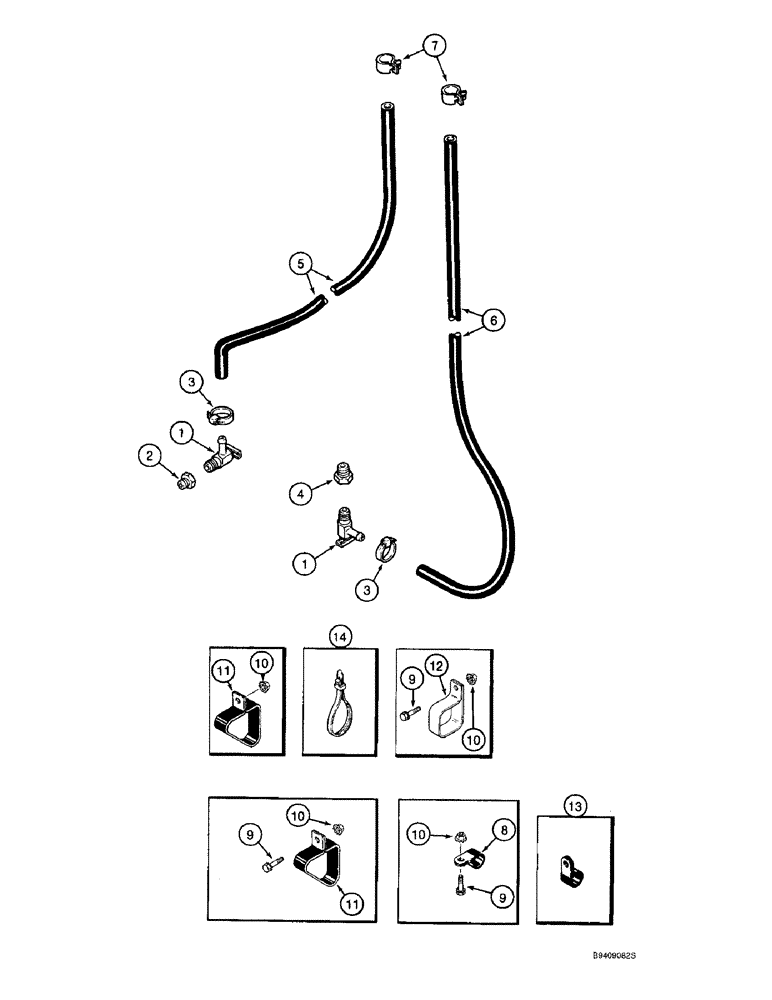

Запчасти Case IH 2188 (9G-46) - HEATING SYSTEM, CAB AND CHASSIS CONNECTIONS TO ENGINE (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff, heater

2шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

2шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- pipe, 3/4 male x 3/8 inch female

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - 173 inch (4394 mm) long, cut from 97252CX bulk hose below

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - 270 inch (6858 mm) long, cut from 97252CX bulk hose below

1шт.

7

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

2шт.

8

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Engine, RH front 1 1/2", Insul, 3/8" Bolt

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

11

1994983C2

CLAMP

- hose, left-hand side of grain tank and under side of service cat walk above unloader rear auger

3шт.

12

1301387C2

CLIP

CLAMP - square, 2 inch ID

5шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Heater return hose to lower rear radiator shroud 1", Insul, 3/8" Bolt

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.
