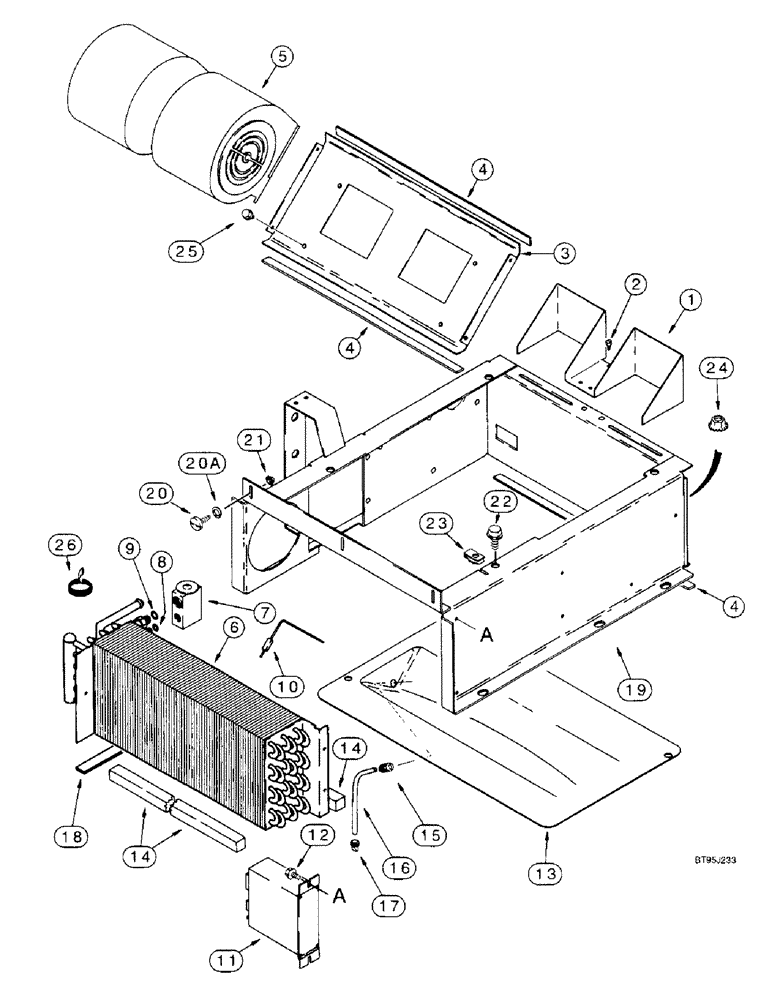

Запчасти Case IH 2188 (9G-42) - HEATING AND AIR CONDITIONING SYSTEM, EVAPORATOR HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

1

178910A1

DEFLECTOR

BRACKET - air deflector

1шт.

2

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

SCREW, SELF TAPPING, Hex Hd, #10 x 1 1/4"

4шт.

3

125066A1

PANEL

- blower

1шт.

4

1990257C1

SEALING STRIP

- foam, adhesive-backed, 20-1/4 inch (514 mm) long, cut from 187874C1 bulk seal below

3шт.

5

1977564C2

BLOWER

- cab, heater, component parts not serviced separately

1шт.

5

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

5

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

121590A2

BODY

CORE ASSEMBLY - evaporator, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CORE - evaporator, order assembly 121590A2

1шт.

7

1990756C2

VALVE

- expansion

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

10

184720A1

SENSOR

- temperature, evaporator

1шт.

10a

702093C1

CABLE TIE

STRAP - tie, wire to evaporator core temperature sensor, not shown

1шт.

11

141178A3

CASE

MODULE - air conditioning control

1шт.

13

121595A1

HOUSING

PAN - drip

1шт.

14

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

SEAL - foam, adhesive-backed, 19-5/8 inch (500 mm) long

2шт.

15

1250522C3

FITTING

FITTING - straight, special, drip pan

2шт.

16

122116A1

HEATER HOSE,12.95 mm ID x 1524.00 mm

Cut from Bulk, See Below 12.95 mm ID x 1524.00 mm

2шт.

17

109239C2

CHECK VALVE

VALVE, CHECK, Drain hose

2шт.

18

1970536C1

SEAL

- foam, adhesive-backed, 34-1/2 inch (875 mm) long, cut from 195917C1 bulk seal below

2шт.

19

125875A4

SUPPORT

FRAME - heater core and blower mounting

1шт.

20

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #10-24 x 3/4"

3шт.

20a

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

21

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

22

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

786618C1

NUT

- U-type, 5/16 inch NC

4шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

26

83822C1

TAPE

- 24 inch (610 mm) long, cut from 1954475C1 bulk tape, used on expansion valve and evaporator core header

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 1/8 (3) x 3/8 (10) x 600 inch (15240 mm) long

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 1/2 ID (13) x 600 inch (15240 mm) long

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

1954475C1

ROLL

TAPE - bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.

12

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

25

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

13шт.
