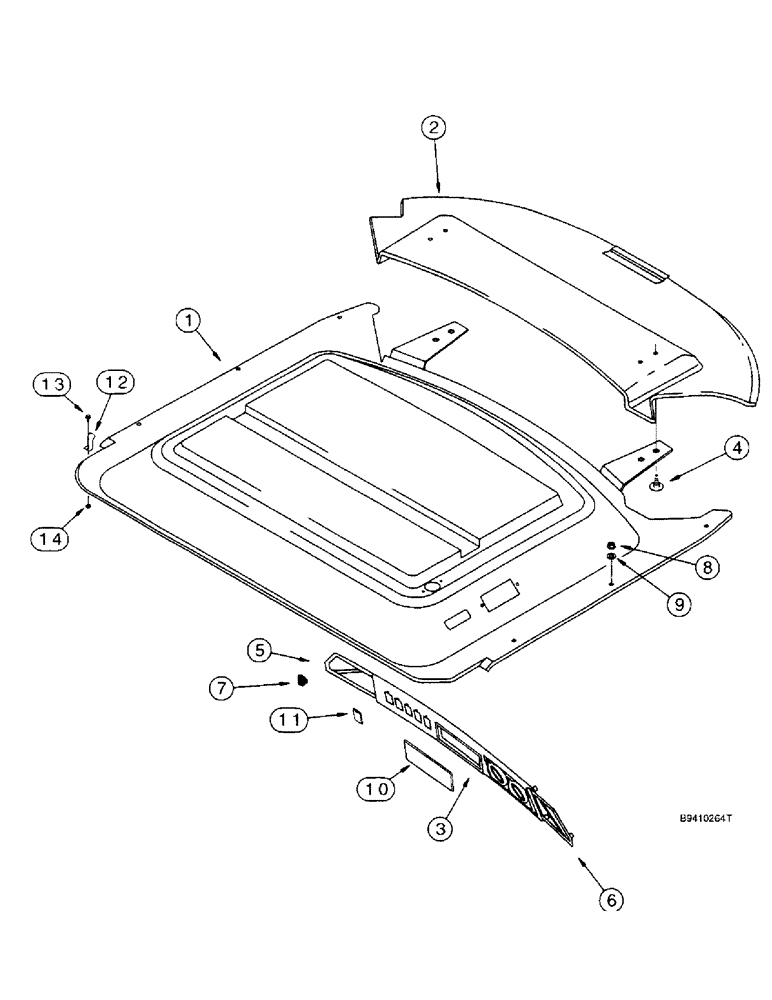

Запчасти Case IH 2188 (9G-12) - CAB, HEADLINER (10) - CAB & AIR CONDITIONING

1

121570A4

HEADLINER

HEADLINER - rear

1шт.

2

189282A1

PANEL

HEADLINER - front, includes fuse and relay decal, prior to combine P.I.N. JJC0191483, see Figure 9H-40 for decal

1шт.

2

121815A2

BRACKET

HEADLINER - front, combine P.I.N. JJC0191483 and after, see Figure 9H-40 for decal

1шт.

3

136705A1

PANEL

- overhead switch, see Figure 9H-40 for decals

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

SCREW, SELF TAPPING, pan Phillips, No. 10-16 x 1-1/2"

10шт.

5

1971229C2

COVER

Panel - Speaker cover, LH

1шт.

6

1971349C2

COVER

Speaker, Panel - RH

1шт.

7

97058C1

CLIP

- spring

4шт.

8

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

- flat, special

6шт.

10

1535219C1

COVER

PLATE - cover, radio opening, used on models without radio

1шт.

11

245918C1

LENS

PLUG - rectangular, rocker switch opening

1шт.

12

116812A1

CLIP

- special, headliner

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

125688A1

DIFFUSER

HEADLINER louver

1шт.

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

1шт.

125749A1

SPRING NUT

1шт.

13

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

87578146

PLATE ASSY.

PLATE, Monitor Hole Cover, Not Shown

1шт.

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

SCREW, SELF TAPPING, , Monitor Hole Cover, Not Shown Hex Hd, #10 x 1 1/4"

4шт.

195-81029

WASHER,#10

Monitor Hole Cover, Not Shown #10

4шт.

231-51409

SERRATED NUT,Flg, USR, #10-24

Monitor Hole Cover, Not Shown Flg, USR, #10-24

4шт.
