Запчасти Case IH 2188 (8-62) - UNLOADER TUBE SWING CYLINDER SYSTEM (07) - HYDRAULICS

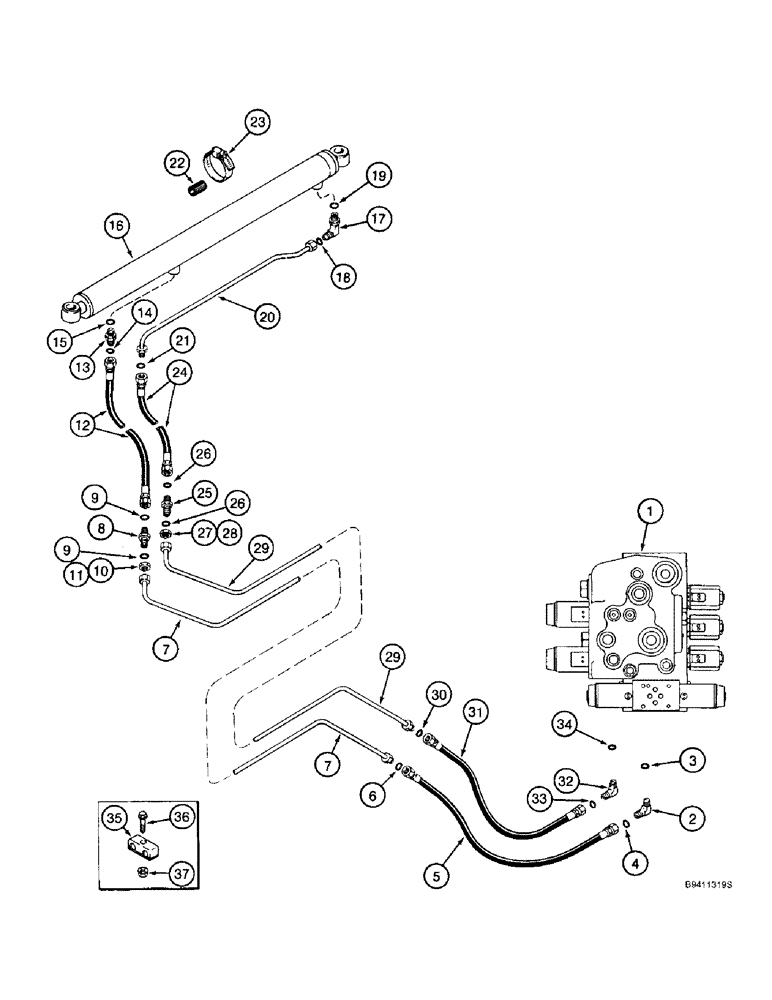

Схема запчастей Case IH 2188 - (8-62) - UNLOADER TUBE SWING CYLINDER SYSTEM (07) - HYDRAULICS
6
37
5
26
22
2
36
16
20
34
23
28
12
35
25
31
21
33
18
17
13
9
8
26
11
27
3
9
1
32
29
4
30
10
14
7
7
15
19
24
29

Артикул

Название

Примечание

Количество

1

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift, parts list Figure 8-32

1шт.

2

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Includes Ref. 3 & 4

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

134978A2

HOSE

- unloader tube swing out, at valve, 21-1/4 inch (540 mm) long

1шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

134974A1

UNLOADING TUBE,0.25" Diameter, 1174.8, 1115 mm Length

TUBE - unloader swing out

1шт.

8

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

ADAPTER - straight, 9/16-18 inch face seal x bulkhead face, Includes: Ref. 9

1шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

10

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

11

495-11059

WASHER,9/16"

- flat, 19/32 x 1-5/32 x 3/32 inch

1шт.

12

134978A2

HOSE

- unloader tube swing out, at cylinder, 21-1/4 inch (540 mm) long

1шт.

13

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 14 and 15

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

175679A2

CYLINDER

ASSEMBLY - unloader tube swing, 1-1/2 (38) ID x 20 inch (508 mm) stroke, Includes: Ref. 16A - 16C

1шт.

16

87597336R

REMAN-HYD CYLINDER

2188 (1/95-12/97), Reman for New P/N 175679A2, Does not come with hyme joint rod end PN 87611478. Order as needed.

1шт.

16

87597336C

CORE-HYD CYLINDER

Return Number

1шт.

16a

188806A1

SEAL KIT

KIT - seal repair, not shown

1шт.

16b

188293A1

BALL JOINT

EYE - cylinder end, self-aligning, not shown

1шт.

16c

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF, Not shown

1шт.

17

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

- 90 degree, 9/16-18 face seal x 7/16-20 inch adjustable O-ring boss, Includes: Ref. 18 and 19

1шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

134643A2

TUBE,430 mm Length

- at unloader tube swing cylinder

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.

23

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

1шт.

24

134976A1

FLEXIBLE HOSE

HOSE - unloader tube swing in, at cylinder, 20-1/16 inch (510 mm) long

1шт.

25

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 11/16-16 inch face seal x bulkhead face seal, Includes: Ref. 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

27

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

28

95-81019

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

- flat, 23/32 x 1-1/2 x 7/64 inch

1шт.

29

134972A1

HYD TUBE,1367.9, 737.5 mm Length

TUBE - unloader swing in

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

134976A1

FLEXIBLE HOSE

HOSE - unloader tube swing in, at valve, 20-1/16 inch (510 mm) long

1шт.

32

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 33 and 34

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

183824C1

CLAMP

- tube

2шт.

36

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 42
