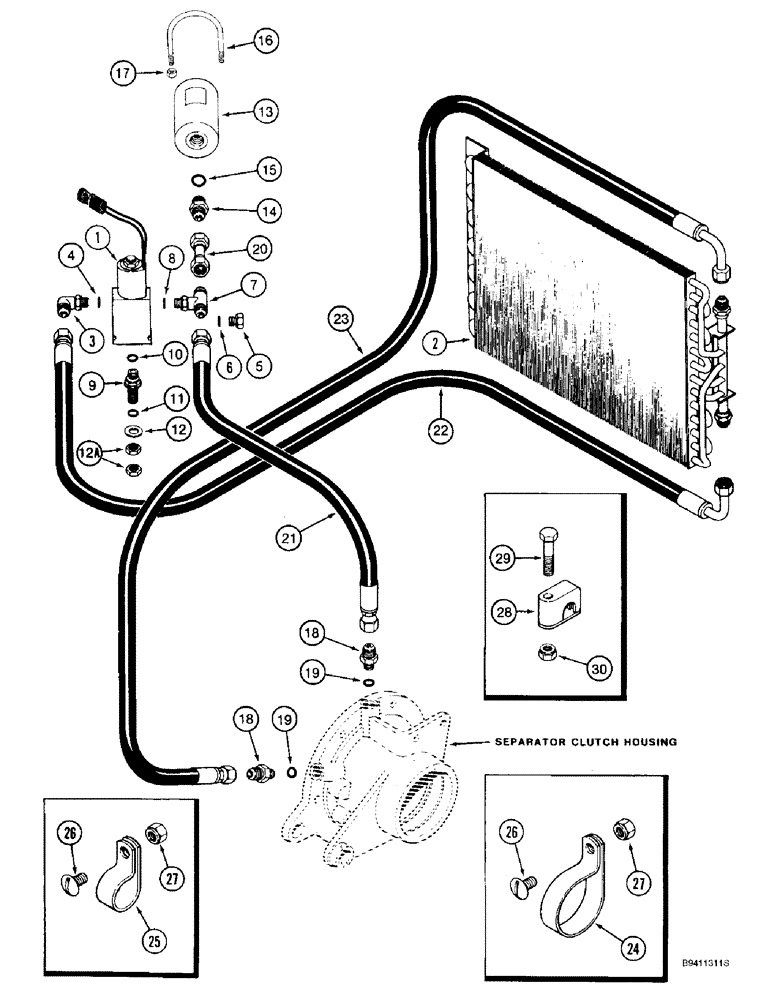

Запчасти Case IH 2188 (8-52) - SEPARATOR CLUTCH SYSTEM (07) - HYDRAULICS

1

131152A1

CONTROL VALVE

VALVE ASSEMBLY - separator clutch, parts list Figure 8-56

1шт.

2

183747C1

OIL COOLER

COOLER - oil, separator clutch

1шт.

3

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 4

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

1шт.

7

183774C1

TEE

- separator clutch, separator clutch

1шт.

9

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ, Includes: Ref. 10

1шт.

11

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

12

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

12a

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

13

1541941C1

ACCUMULATOR

- hydraulic, separator clutch

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

186505C1

BOLT,U, 1/4" - 20 x 3.2"

U-BOLT - absorber mounting, accumulator mounting

1шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

18

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 19

2шт.

20

183775C1

HYD TUBE

TUBE - separator clutch accumulator

1шт.

21

D69797

HOSE

- valve to gear case, 18 inch (457 mm) long (Replaces hose 183773C1)

1шт.

22

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - cooler to valve, 50 inch (1270 mm) long

1шт.

23

183748C2

HOSE,12.7mm ID x 1460.5mm L, SAE 100R1

- gear case to oil cooler, 57-1/2 inch (1460 mm) long

1шт.

24

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

25

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

28

196447C1

CLAMP

- mounting, clutch oil cooler tubing

2шт.

29

424-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 2

- hex, 1/4 NC x 1-1/4 inch, grade 2

2шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
