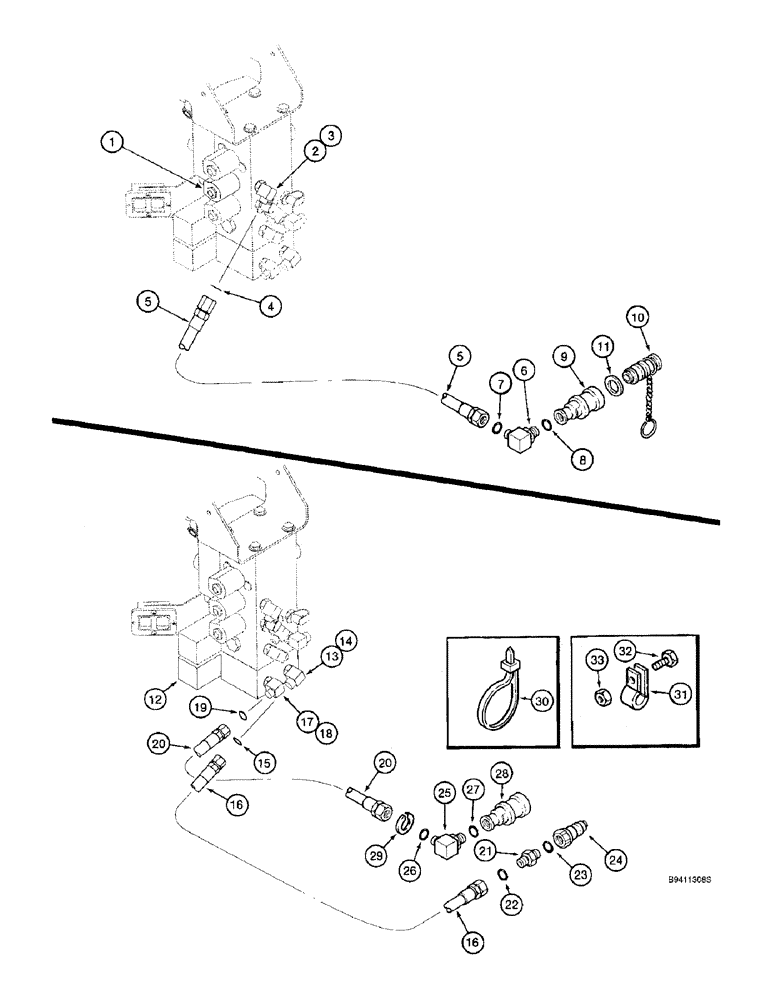

Запчасти Case IH 2188 (8-48) - REEL FORE AND AFT, AND LIFT SYSTEMS (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
124566A3
VALVE, CONTROL
VALVE ASSEMBLY - header lift with reel fore and aft, parts list Figure 8-34
1шт.
2
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Includes Ref. 3 & 4
1шт.
4
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
5
128029A1
HOSE
- reel lift, 114-1/4 inch (2900 mm) long
1шт.
6
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
- 90 degree, 11/16-16 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 7 and 8
1шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
8
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
9
1282338C91
COUPLING, QUICK, FEM
COUPLING - self-sealing female, 7/8-14 inch
1шт.
10
1954133C1
PLUG
PLUG ASSEMBLY - coupling, dust, Includes: Ref. 11
1шт.
11
401758R1
WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk
- dust plug
1шт.
12
131153A2
CONTROL VALVE
VALVE ASSEMBLY - reel fore and aft, parts list Figure 8-34
1шт.
Part of P/N 124112A1 Reel Fore and Aft Kit
1шт.
13
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, reel fore and aft, Includes: Ref. 14 and 15
1шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft -012, 90 Duro, .364" ID x .070" Thk
1шт.
16
1989471C1
HOSE
- reel aft, 150 inch (3810 mm) long, reel fore and aft
1шт.
Part of P/N 124112A1 Reel Fore and Aft Kit
1шт.
17
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Reel fore and aft, Includes Ref. 18 & 19
1шт.
19
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Reel fore and aft -011, 90 Duro, .301" ID x .070" Thk
1шт.
20
128029A1
HOSE
- reel fore, 114-1/4 inch (2900 mm) long, reel fore and aft
1шт.
Part of P/N 124112A1 Reel Fore and Aft Kit
1шт.
21
201-139
HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB
ADAPTER - straight, 11/16-16 face seal x 7/8-14 inch O-ring boss, reel fore and aft, Includes: Ref. 22 and 23
1шт.
22
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Reel fore and aft
1шт.
23
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Reel fore and aft -016, 90 Duro, .614" ID x .070" Thk
1шт.
Part of P/N 124112A1 Reel Fore and Aft Kit
1шт.
25
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
- 90 degree, 11/16-16 face seal x 7/8-14 inch adjustable O-ring boss, reel fore and aft, Includes: Ref. 26 and 27
1шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Reel fore and aft
1шт.
27
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Reel fore and aft -016, 90 Duro, .614" ID x .070" Thk
1шт.
28
1282338C91
COUPLING, QUICK, FEM
COUPLING - self-sealing female, 7/8-14 inch, reel fore and aft
1шт.
Part of P/N 124112A1 Reel Fore and Aft Kit
1шт.
29
1541792C1
WASHER
WASHER - lock, red, special, reel fore and aft
1шт.
30
306132C1
CABLE TIE,14.5" L
STRAP - tie, 14 inch, reel fore and aft
1шт.
31
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
P-type, Reel fore and aft 1/2", Insul, 3/8" Bolt
1шт.
32
409-7612
BOLT,3/8"-16 x 1.09" OAL
Reel fore and aft Hex Flg, 3/8"-16 x 3/4", Serr
1шт.
33
231-5146
FLANGE NUT,3/8"-16
Reel fore and aft Flg, USR, 3/8"-16
1шт.
134112A1
VALVE
KIT field, reel fore and aft, Includes Ref.12, 16, 20, 24 and 28, reel fore and aft
1шт.
3
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
14
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Reel fore and aft
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Reel fore and aft
1шт.
Выбрано товаров: 39
