Артикул
Название
Примечание
Количество

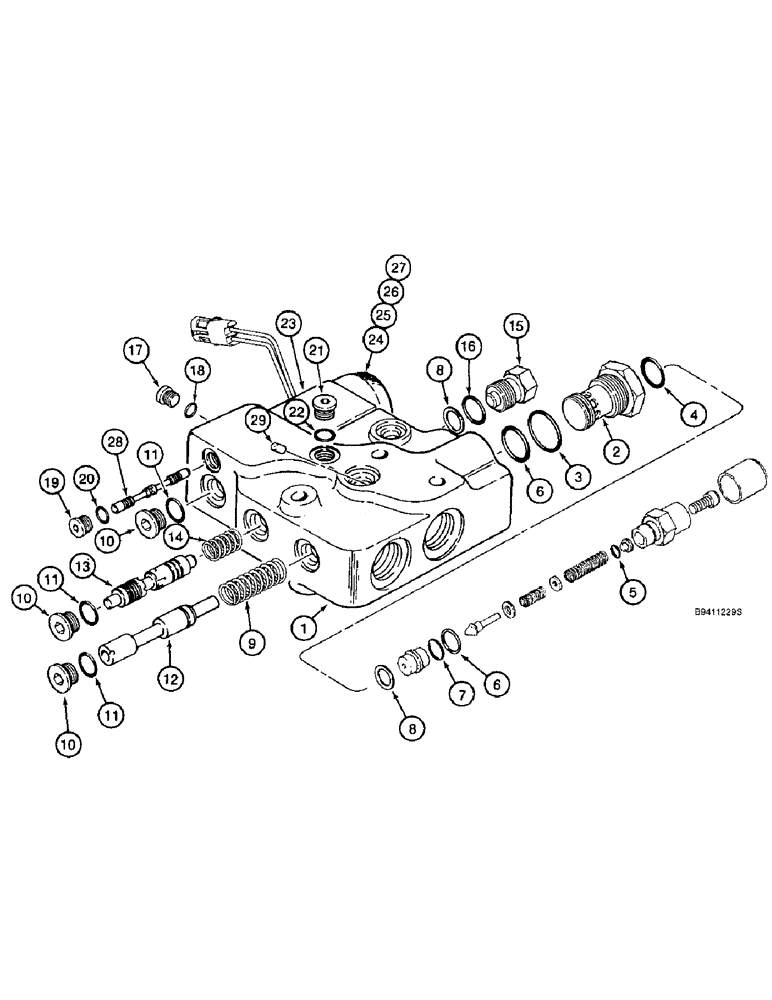

114856A1
VALVE
ASSEMBLY - reel drive, Includes: Ref. 1 - 29
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve, order valve assembly 114856A1
1шт.
190702A1
VALVE PRESSURE RELIE
VALVE ASSEMBLY - relief, cartridge, Includes: Ref. 2 - 7
1шт.
2
NSS
NOT SOLD SEPARAT
VALVE - relief, cartridge, order valve assembly 190702A1
1шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
4
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
5
238-5004
O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro
-004, 70 Duro, .07" ID x .070" Thk
1шт.
6
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
- backup
1шт.
7
238-5016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
-016, 70 Duro, .614" ID x .070" Thk
1шт.
8
190696A1
SHIM KIT
KIT - shim
2шт.
9
190695A1
SPRING
- pressure regulating
1шт.
10
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl Ref 11 Hex Soc, 3/4"-16 ORB
3шт.
11
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
12
190697A1
SPOOL
- pressure regulating
1шт.
13
190698A1
SPOOL
- flow metering
1шт.
14
190699A1
SPRING
- flow metering
1шт.
15
188110A1
PLUG
- spool, Includes: Ref. 16
1шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
17
278548
PLUG,Hex, 7/16"-20 ORB
Incl Ref 18 Hex Soc, 7/16"-20 ORB
3шт.
18
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
19
86632547
PLUG,Hex, 5/16"-24 ORB
Includes Ref. 20 Hex Soc, 5/16"-24 ORB
4шт.
20
237-6002
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
2-1, .239" ID x .064" Thk
1шт.
21
9625178
PLUG,9/16" - 18 ORB
Incl. Ref. 22 Hex Soc, 9/16"-18 ORB
1шт.
22
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
23
190700A1
SOLENOID
- without diode, 12 volt, DC
1шт.
24
188106A1
NUT
- special, solenoid coil retaining
1шт.
25
188117A1
CARTRIDGE,72.25mm OAL
CORE - solenoid
1шт.
26
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
-017, 70 Duro, .676" ID x .070" Thk
1шт.
27
188116A1
PIN,3.25mm OD x 39.93mm L
- solenoid actuating
1шт.
29
190694A1
PLUG
- orifice
1шт.
Выбрано товаров: 31
