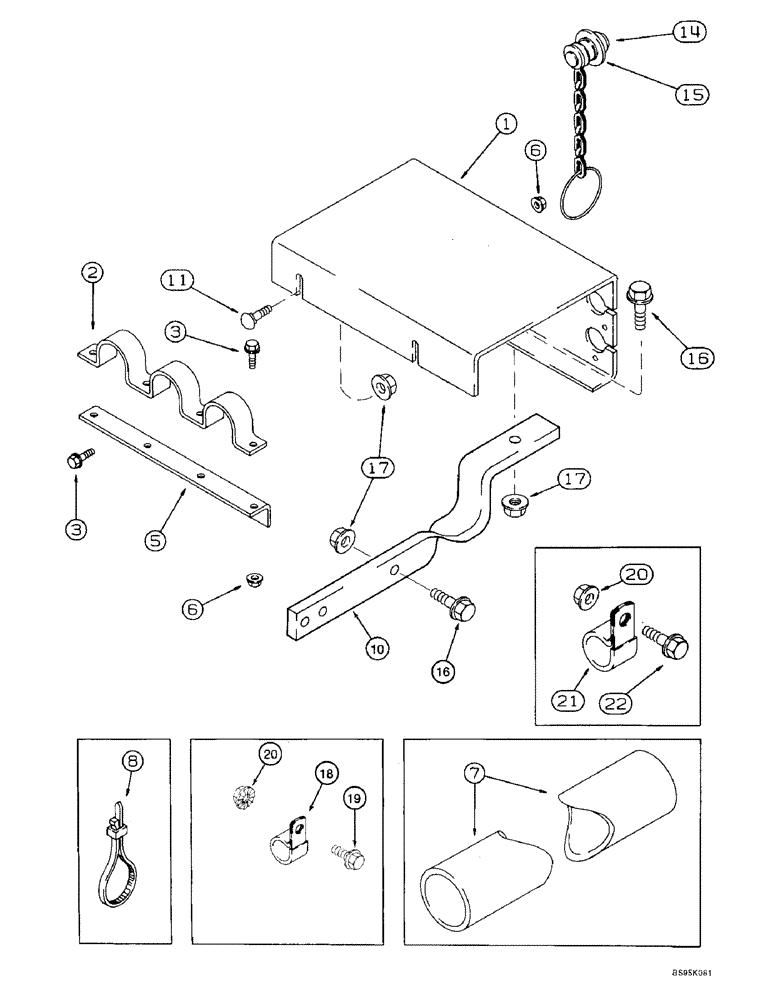

Запчасти Case IH 2188 (8-44) - REEL DRIVE, COUPLING MOUNTING (07) - HYDRAULICS

1

139828A1

SUPPORT

- feeder hoses

1шт.

2

1321990C1

CLAMP

- coupling

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

5

1321989C2

SUPPORT

- coupling

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

7

1989500C1

SLEEVE

- hose, cordura

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

10

139045A1

SUPPORT

- feeder hoses

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

14

1954133C1

PLUG

PLUG ASSEMBLY - coupling, dust, Includes: Ref. 15

1шт.

15

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- dust plug

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

17

231-5146

FLANGE NUT,3/8"-16

2-4шт.

18

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

3шт.

19

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

1шт.

20

231-5146

FLANGE NUT,3/8"-16

2шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type (Replaces clamp 299566C1) 3/4", Insul, 3/8" Bolt

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

1988723C1

SUPPORT

BRACKET harness mounting, 1 hole

1шт.

1988724C1

SUPPORT

BRACKET harness mounting, 2 hole

1шт.
