Запчасти Case IH 2188 (8-42) - REEL DRIVE SYSTEM, PRIOR TO COMBINE P.I.N. JJC0191483 (07) - HYDRAULICS

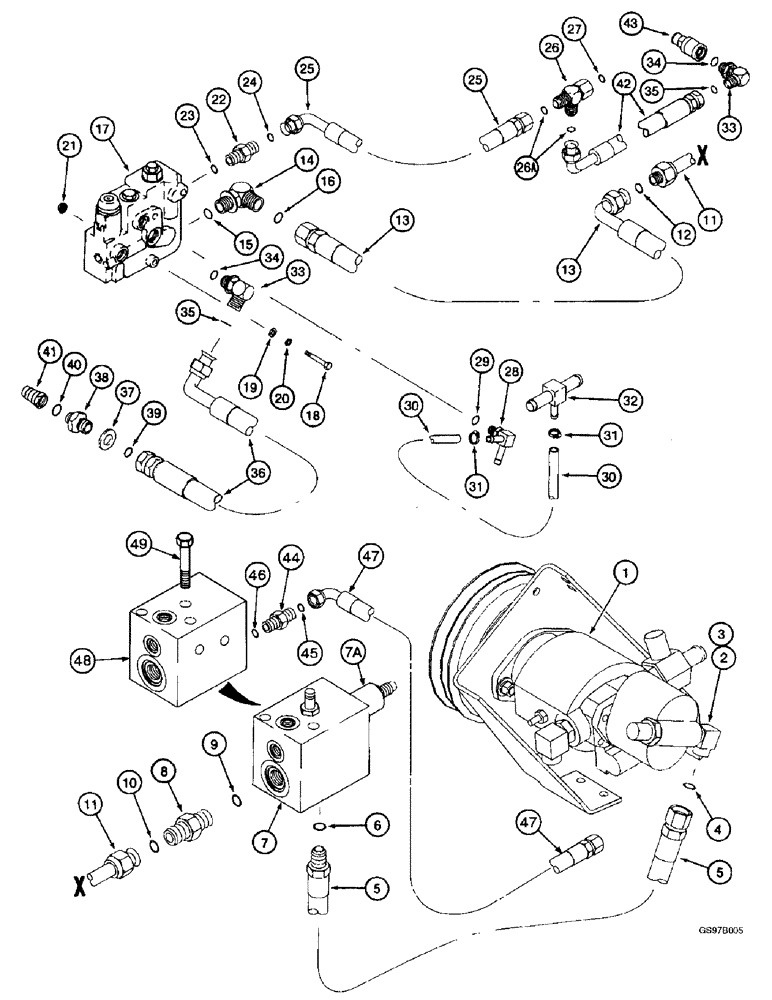

Схема запчастей Case IH 2188 - (8-42) - REEL DRIVE SYSTEM, PRIOR TO COMBINE P.I.N. JJC0191483 (07) - HYDRAULICS
39
34
33
6
28
25
14
23
26a
8
29
46
21
3
34
48
36
25
11
17
27
7a
2
9
41
35
10
7
42
1
16
33
26
35
19
18
24
44
20
5
38
45
32
22
5
47
31
43
4
31
37
30
11
49
13
13
30
12
40
47
15

Артикул

Название

Примечание

Количество

1

123266A2

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary, tandem, parts list Figure 8-24

1шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-14 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 3 and 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

127990A1

HOSE

ASSEMBLY - reel drive supply, 37 inch (940 mm) long, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

123314A3

VALVE

ASSEMBLY - pressure regulator, no longer available, order Ref. 44 - 49 on Figure 8-43A, Includes: Ref. 7A and 7B

1шт.

7a

222894A1

VALVE POPPET

VALVE ASSEMBLY - pressure reducing (Replaces valve assembly 190708A1)

1шт.

7b

190709A1

SEAL KIT

KIT - seal repair, valve cartridge, not shown

1шт.

8

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 9 and 10 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

124376A1

TUBE

- reel drive supply

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

135827A2

FLEXIBLE HOSE

HOSE - reel drive valve supply, 26-3/4 inch (680 mm) long

1шт.

14

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 15 and 16

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

114856A1

VALVE

ASSEMBLY - reel drive, control, parts list Figure 8-46

1шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

22

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 23 and 24 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

128036A1

FLEXIBLE HOSE,19.05mm ID x 640mm L

HOSE - reel drive valve return, 25-3/16 inch (640 mm) long

1шт.

26

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

- 1-14 inch face seal branch x face seal x swivel face seal, Includes: Ref. 26A and 27

1шт.

26a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

113896A1

TEE

- special, 3/8 x 3/8 inch beaded tube, Includes: Ref. 29

1шт.

30

NSS

NOT SOLD SEPARAT

HOSE - reel drive valve case drain, 16 inch (405 mm) long, cut from S118400X bulk hose below

1шт.

See Figure 8-22 for tube clamps.

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long

1шт.

See Figure 8-22 for tube clamps.

1шт.

31

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

2шт.

32

177975A1

TEE

- special, 5/8 x 3/8 x 5/8 inch beaded tube

1шт.

33

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-14 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 34 and 35

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

36

1989495C1

HOSE

- 136 inch (3455 mm) long

1шт.

37

1345266C1

WASHER

- lock, white, special

1шт.

38

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 39 & 40 1"-14 ORFS x 7/8"-14 ORB

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

41

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

42

1989496C1

HOSE

- 102-1/2 inch (2605 mm) long

1шт.

43

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch

1шт.

44

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

ADAPTER - straight, 1-14 face seal x 1-1/16-12 inch O-ring boss, Includes: Ref. 45 and 46

1шт.

45

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

47

231735A1

FLEXIBLE HOSE,15.88mm ID x 830mm L

HOSE - 32-11/16 inch (830 mm) long

1шт.

48

233738A1

VALVE

- pressure regulator

1шт.

49

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 55
