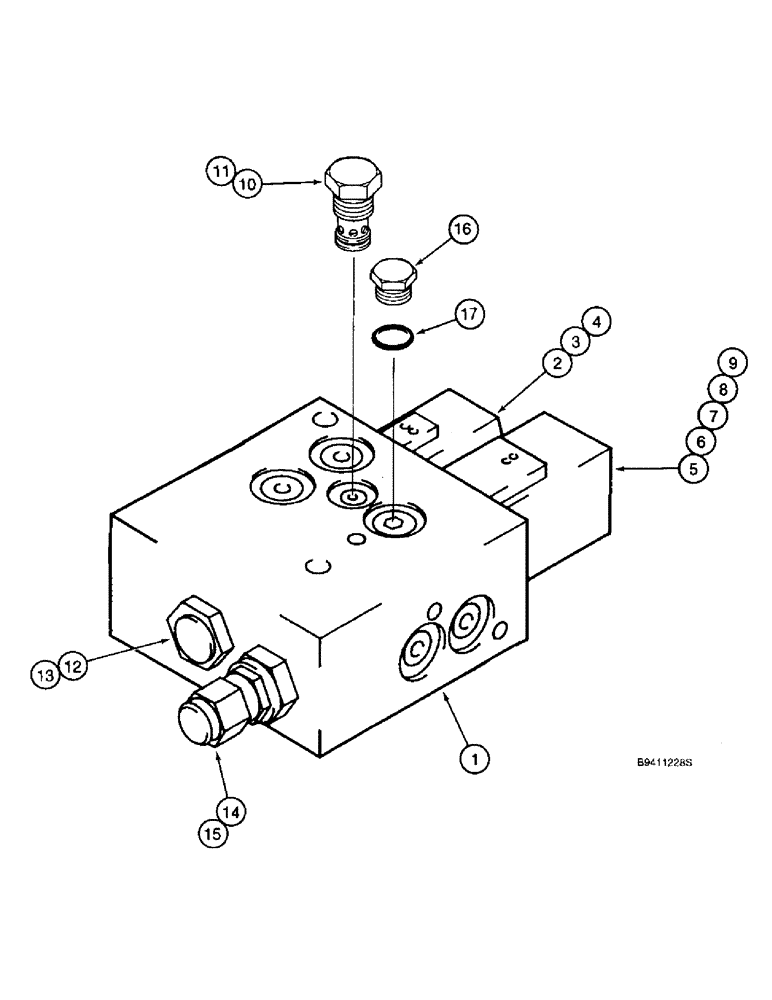

Запчасти Case IH 2188 (8-40) - PARKING BRAKE AND FEEDER CLUTCH VALVE (07) - HYDRAULICS

129010A3

VALVE

ASSEMBLY - parking brake and feeder clutch, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 129010A3

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 4-way, order component parts, Includes: Ref. 2 - 4

1шт.

2

187849C1

SOLENOID VALVE

VALVE - solenoid, 4-way, cartridge only

1шт.

3

187850C1

SEAL KIT

KIT - seal replacement, 4-way solenoid valve, not shown

1шт.

4

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 3-way, order component parts, Includes: Ref. 5 - 9

1шт.

5

1986618C1

SOLENOID

VALVE - solenoid, 3-way

1шт.

6

190703A1

SOLENOID

- coil

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

9

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

10

190704A1

CHECK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 11

1шт.

11

190707A1

SEAL KIT

KIT - seal replacement, check valve, not shown

1шт.

12

190705A1

VALVE POPPET,7/8" - 14

VALVE ASSEMBLY - check, orifice, Includes: Ref. 13

1шт.

13

149942C1

SEAL KIT

KIT - seal replacement, check valve, not shown

1шт.

14

190706A2

CHECK VALVE

VALVE ASSEMBLY - relief, Includes: Ref. 15

1шт.

15

149942C1

SEAL KIT

KIT - seal replacement, relief valve, not shown

1шт.

16

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 17 Hex Soc, 9/16"-18 ORB

1шт.

125829A1

PRESSURE SWITCH

parking brake pressure

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
