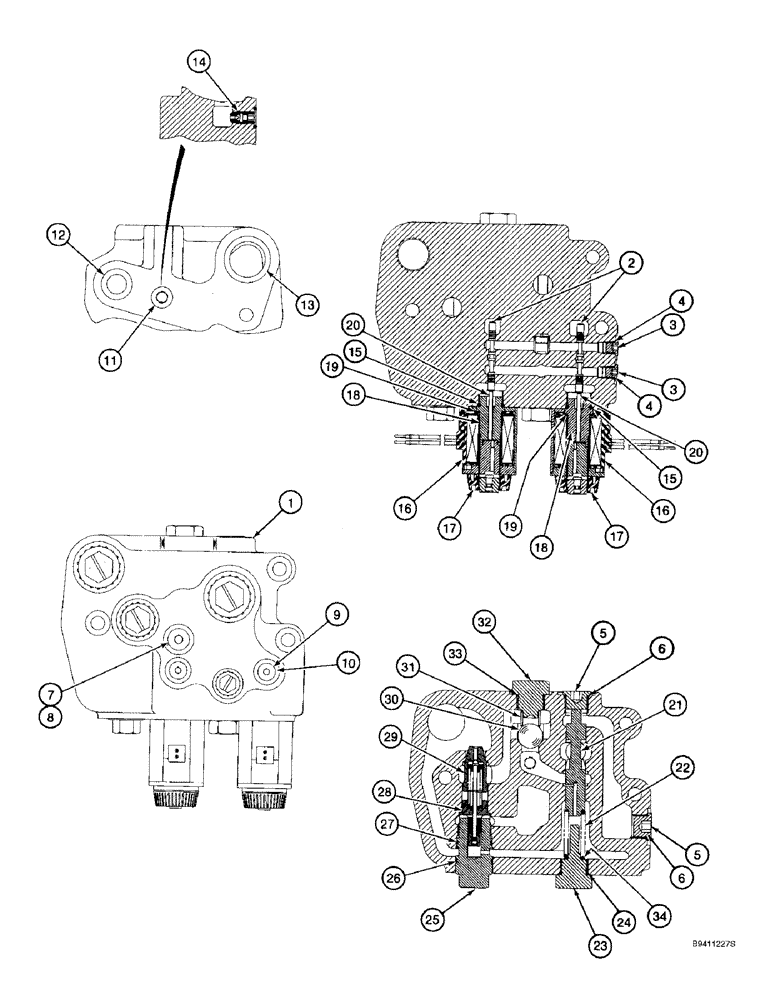

Запчасти Case IH 2188 (8-38) - HEADER HEIGHT VALVE ASSEMBLY (07) - HYDRAULICS

186572A1

CONTROL VALVE

VALVE ASSEMBLY - header height, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 186572A1

1шт.

2

188104A1

SPOOL

- pilot

2шт.

3

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 4 Hex Soc, 3/8"-24 ORB

2шт.

4

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6 Hex Soc, 3/4"-16 ORB

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 8 Hex Soc, 9/16"-18 ORB

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 10 Hex Soc, 7/16"-20 ORB

2шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

11

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

12

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

- 1-5/16 ID x 3/32 inch wide

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

14

188115A1

VALVE POPPET

VALVE - check, signal

1шт.

15

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

243254A1

KIT

- solenoid, without diode, 12 volt, DC, Includes: Ref. 16 - 16B

1шт.

16

188105A1

SOLENOID

- without diode, 12 volt, DC

1шт.

16a

225318C1

ELEC CONNECTOR,2 Pin

CONNECTOR - not shown

1шт.

16b

225315C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - wedge, not shown

1шт.

17

188106A1

NUT

- special, solenoid coil

2шт.

18

188117A1

CARTRIDGE,72.25mm OAL

CORE - solenoid

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

20

188116A1

PIN,3.25mm OD x 39.93mm L

- solenoid actuating

2шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - meter in, main flow, order valve assembly 186572A1

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - meter in, main flow, order valve assembly 186572A1

1шт.

23

188110A1

PLUG

- spool

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

243255A1

SERVICE KIT

KIT - service, meter out, Includes: Ref. 25 - 29

1шт.

25

188111A1

PLUG,1-1/16" - 18

- meter out poppet

1шт.

26

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

27

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

28

188112A1

VALVE POPPET

STEM - servo, meter out

1шт.

29

188113A1

VALVE POPPET

POPPET - meter out

1шт.

30

211-1024

BALL,3/4" Dia

- chrome alloy steel, 3/4 inch, grade 24

1шт.

31

188114A1

SPRING

- load check

1шт.

32

188107A1

PLUG

- check valve

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.

34

NSS

NOT SOLD SEPARAT

SHIM - spring

1шт.

243253A1

SEAL KIT

KIT seal repair, Includes: Ref. 4, 6, 8, 10 - 13, 15, 19, 24, 26, 27 and 33

1шт.

Part of P/N 243253A1 Seal Repair Kit

1шт.
